Heat Dissipation Light Uv Curing Conveyor Systems 380V 50Hz 400mm

Heat Dissipation Light Uv Curing Conveyor Systems 380V 50Hz 400mm

Product Details:

Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-UV-303F

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T, Western Union
Supply Ability: According to customer's demand
Get Best Price Contact Now

Detail Information

Product Name: UV /LED Rotating Multi-face Curing Machine Power Supply: 380V 50HZ
Total Power: 7.5KW Dimensions: L:2500mm W:680mm H:1780mm
Weight: 280kg Working Width: 400mm
Feeding Speed: 1-10 M/min Feature: Energy Saving
Highlight:

380V uv curing conveyor systems

,

400mm uv curing conveyor systems

,

50Hz uv led curing equipment

Product Description

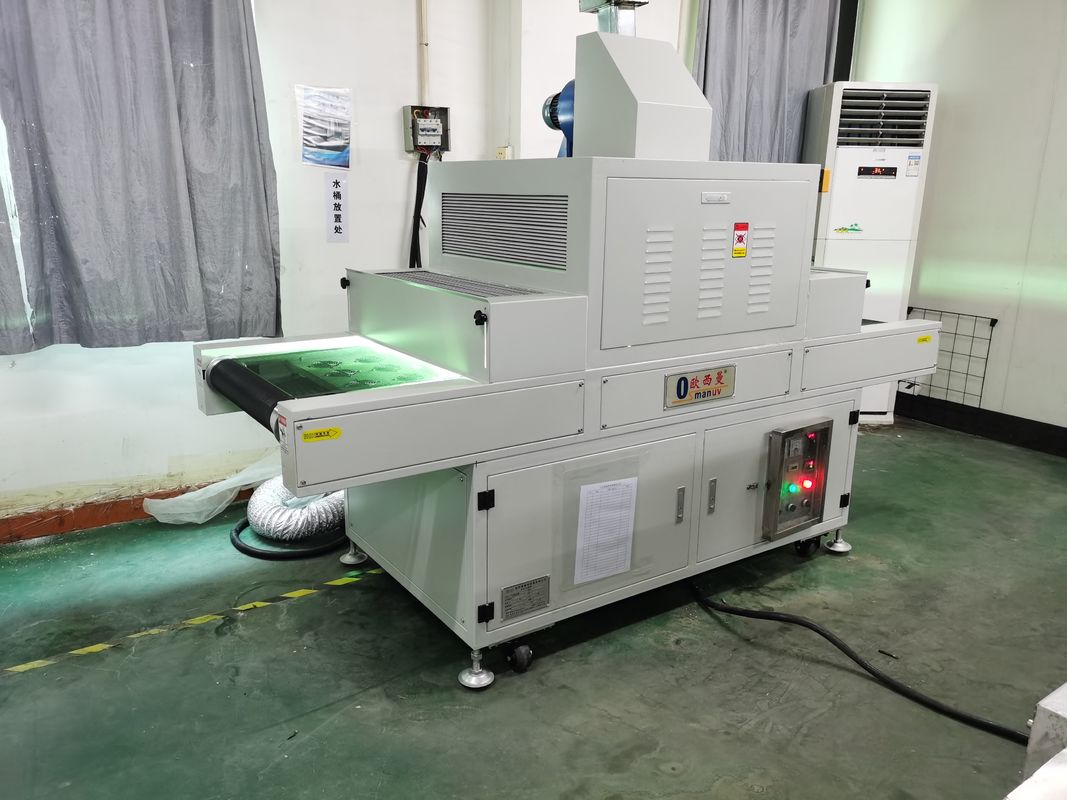

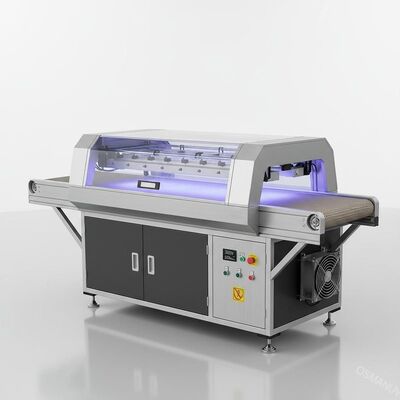

Heat Dissipation Light Conveyor UV/LED Curing Machine For Speaker Horns,Receivers,Earphones,Earplugs Factory





UV ultraviolet curing machine is suitable for micro speakers | electroacoustic industry | speaker horns, receivers, earphones, earplugs, optoelectronics, optical fibers, microelectronics assembly bonding | IC protection sealing | integrated circuit chips | glass plate wafers | lead bonding | bare Sheet sealing|electronic material assembly|UV curing adhesive bonding|surface coating|and encapsulation materials|optical adhesive bonding|reinforcement adhesive|and other UV light curing.



Description:

 1 Product name: UV/LED light curing machine.
 2 Model: OSM-UV-302P light curing machine.
 3 Specifications:

2500mm long × 680mm wide × 1780mm high.

(Can be customized according to actual requirements)

 4

Lamp tube

LDE  tube

3 UV lamp tube 3KW, total length 460mm. The height and angle of the lamp tube in the UV furnace can be adjusted.

3 LED tubes 3KW 395NM. The height and angle of the lamps in the UV furnace can be adjusted.

 5 Conveying net width: 400mm.
 6 Conveyor belt:

black mesh belt is used, which has the characteristics of high temperature resistance, ultraviolet resistance, stable transportation and long service life.


 7 Material The shell is made of 1.5mm cold-rolled plate by bending and welding, the shell is painted, wear-resistant and corrosion-resistant, the color is computer color, the frame is made of 2.0 plates, and the pallet is made of 1.2 plates.
 8 Speed ​​control system:

a speed-adjusting motor is equipped with a gear box as the transmission power, the speed is adjustable from 0 to 10 meters per minute, and the panel control is equipped with an LED speed display.


 9 UV lampshade: using professional reflective material (German alanod reflector) to reflect ultraviolet light, durable and greatly improve the utilization rate of ultraviolet light (more than 30%).
 10 Cooling system: It adopts forced air cooling with good heat dissipation effect.

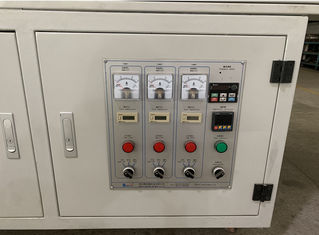

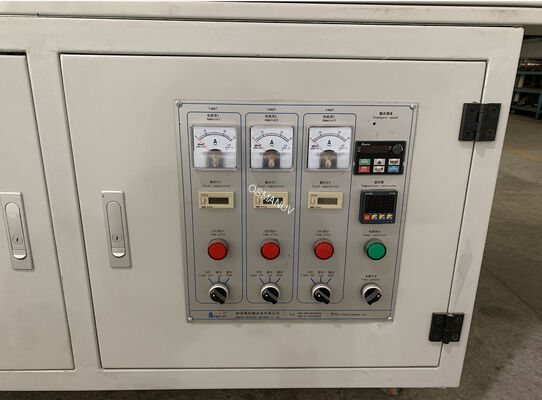

 11 Control system:

a. Independent control system for lamp tubes

b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.

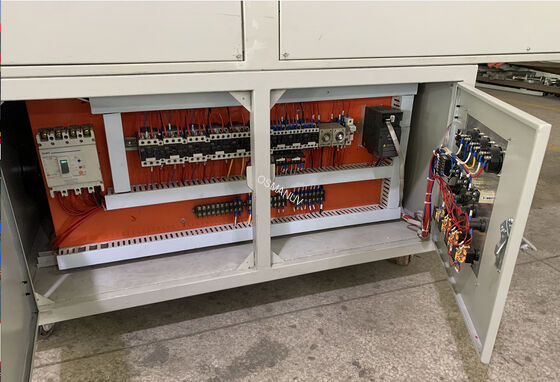

 12 Electrical part OMRON relay, CHNT contactor, CKC brand for time delay, and Japanese Izumi company production for switch.
 13 Safety devices leakage circuit breakers, over-temperature prevention, transformer motor overload protection, control circuit fuses... all comply with international safety standards.
 14 Warranty: One year for the whole machine, half a year for the electrical part, and 800-1000 hours of UV lamp warranty.





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
