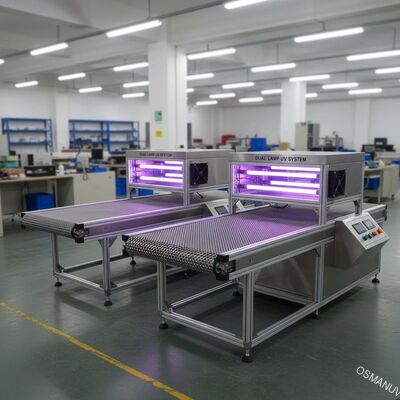

Two Lamp Uv Curing Conveyor Systems 6.8KW Total Power Air Cooling
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-UVA-303D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Weight: | 380KG | Warranty: | 1 Year |
|---|---|---|---|
| Automatic Grade: | Automatic | Product Name: | UV Curing Machine |
| Total Power: | 6.8KW | UV Lamp: | Two |
| Cooling System: | Air Cooling | ||
| High Light: | 6.8KW uv conveyor systems,Air cooling uv curing conveyor systems,Two Lamp uv curing conveyor systems |
||
Product Description

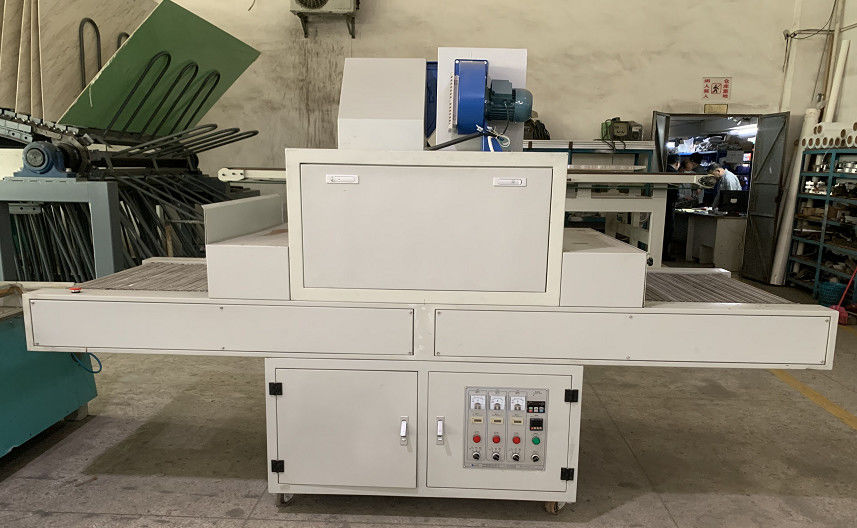

6.8KW W550mm Conveyor Belt UV Curing Machine Air Cooling System
UV is the English abbreviation of Ultra-Violet Ray. The wavelength of UV for industrial use is 200nm to 450nm. The process of using uv to irradiate "UV-irradiated hardening materials" to harden it is called "UVCuring" Process" .
Description:
It is suitable for curing the surface of electronic components, UV ink and glue.
parameter
| 1 | Product name: | UV light curing machine. |
| 2 | Model: | GX-UV-303 type. |
| 3 | Specifications: |
2400mm long × 850mm wide × 1780mm high (can be customized according to actual needs). |
| 4 | Material: | The shell is made of S41 steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint. |
| 5 | Lamp tube: | Three 3KW UV lamps are used, and the height and angle of the lamp tube in the UV furnace can be adjusted. |

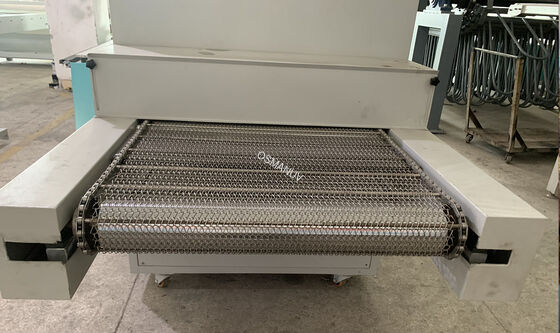

| 6 | Conveyor belt: |
The mesh width is 550mm, and the black mesh belt is used, which has the characteristics of high temperature resistance, dust and rust prevention, and easy cleaning. |
| 7 | Working height: |
200mm (inlet and outlet height: 20mm～200mm). |
| 8 | Speed control system: | adopts Taiwan Likun speed regulator, the speed can be adjusted for 1-10 meters, and the panel control is equipped with an LED speed display. |
| 9 | Cooling system: | use Kyushu HP fan for exhaust and heat dissipation with good heat dissipation effect. |
| 10 | Reflector: | It is made of aluminum and is integrally formed with reflective lenses imported from Germany alanod, which can increase the UV reflection efficiency by 38%. |

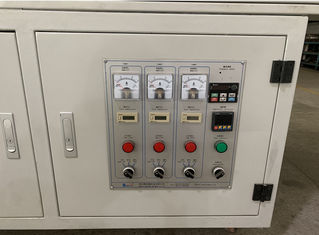

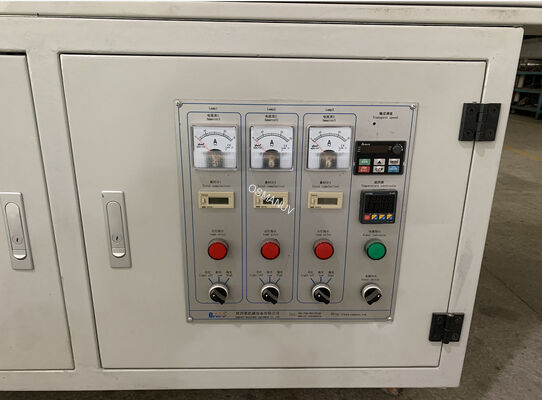

| 11 | Control system: |
(1) The lamp has an independent control system.
(2) The lamp is equipped with an LCD use time recorder to record the use time of the lamp |
| 12 | Features: | The UV section adopts double-layer steel plate for heat insulation, which can effectively reduce the cooling effect. |

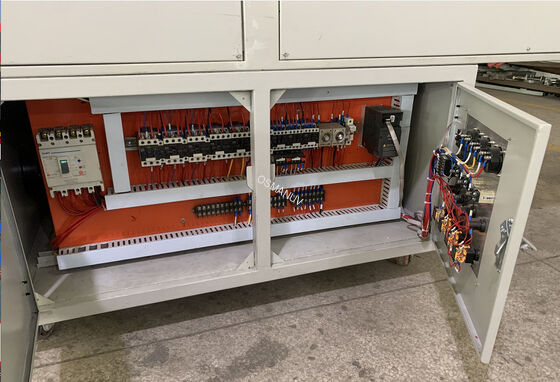

| 13 | Electrical part: | The contactor adopts the Chint brand, the delay adopts the CKC brand, the switch adopts the Japanese Izumi company production, and the relay adopts the OMRON brand. |
| 14 | Safety devices: | leakage circuit breakers, abnormal emergency switches, control circuit fuses, transformers, motor overload protection devices, etc. comply with national safety standards. |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
