Heat Dissipation Light UV Curing Machine 380V 50Hz

Heat Dissipation Light UV Curing Machine 380V 50Hz
Heat Dissipation Light UV Curing Machine 380V 50Hz Heat Dissipation Light Conveyor UV Curing Machine For Speaker Horns, Receivers, Earphones, Earplugs Factory UV ultraviolet curing machine is suitable for micro speakers, electroacoustic industry applications including speaker horns, receivers, ...
Place of Origin:CHINA
Brand Name:Osmanuv
Certification:ISO9001 And CE
Model Number:OSM-UV-302P
Minimum Order Quantity:1 Set
Price:Negotiable
Product Custom Attributes
Highlight

Heat Dissipation Light UV Curing Machine

,

UV Curing Machine 380V 50Hz

,

Heat Dissipation Light UV Curing Conveyor

Product Name:
UV Rotating Multi-face Curing Machine
Power Supply:
380V 50HZ
Total Power:
7.5KW
Dimensions:
L:2500mm W:680mm H:1780mm
Weight:
280kg
Working Width:
400mm
Feeding Speed:
1-10 M/min
Feature:
Energy Saving
Product Description

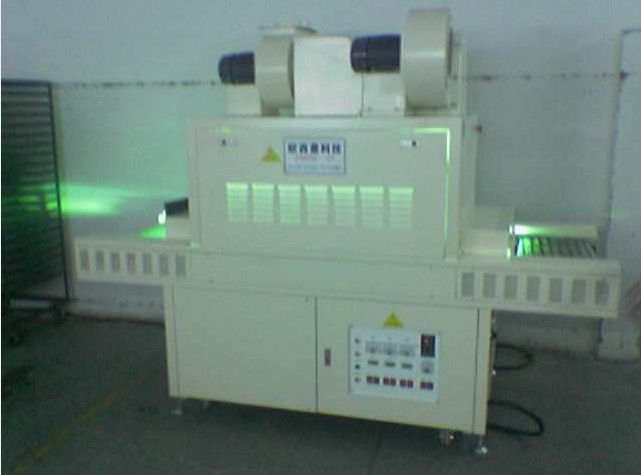

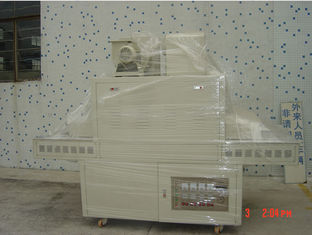

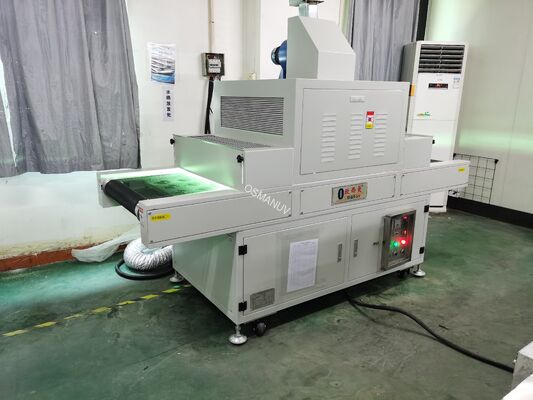

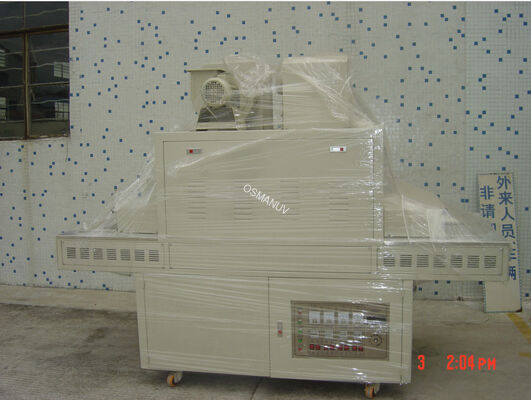

Heat Dissipation Light UV Curing Machine 380V 50Hz
Heat Dissipation Light Conveyor UV Curing Machine For Speaker Horns, Receivers, Earphones, Earplugs Factory

UV ultraviolet curing machine is suitable for micro speakers, electroacoustic industry applications including speaker horns, receivers, earphones, earplugs, optoelectronics, optical fibers, microelectronics assembly bonding, IC protection sealing, integrated circuit chips, glass plate wafers, lead bonding, bare sheet sealing, electronic material assembly, UV curing adhesive bonding, surface coating, encapsulation materials, optical adhesive bonding, reinforcement adhesive, and other UV light curing applications.

Product Specifications
1 Product Name: UV light curing machine
2 Model: OSM-UV-302P light curing machine
3 Specifications: 2500mm long × 680mm wide × 1780mm high (Can be customized according to actual requirements)
4 Lamp Tube: 2 UV lamp tube 3KW, total length 460mm. The height and angle of the lamp tube in the UV furnace can be adjusted
5 Conveying Net Width: 400mm
6 Conveyor Belt: Black mesh belt with high temperature resistance, ultraviolet resistance, stable transportation and long service life
7 Material: Shell made of 1.5mm cold-rolled plate by bending and welding, painted shell, wear-resistant and corrosion-resistant, computer color, frame made of 2.0 plates, pallet made of 1.2 plates
8 Speed Control System: Speed-adjusting motor with gear box as transmission power, speed adjustable from 0 to 10 meters per minute, panel control with LED speed display
9 UV Lampshade: Professional reflective material (German alanod reflector) to reflect ultraviolet light, durable with over 30% improved UV light utilization
10 Cooling System: Forced air cooling with excellent heat dissipation effect
11 Control System: Independent control system for lamp tubes, LCD usage time recorder for lamp service life tracking with reset capability
12 Electrical Part: OMRON relay, CHNT contactor, CKC brand time delay, Japanese Izumi company production switch
13 Safety Devices: Leakage circuit breakers, over-temperature prevention, transformer motor overload protection, control circuit fuses - all comply with international safety standards
14 Warranty: One year for the whole machine, half year for electrical part, 800-1000 hours UV lamp warranty
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully compliant with GMP & ISO standards with CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
