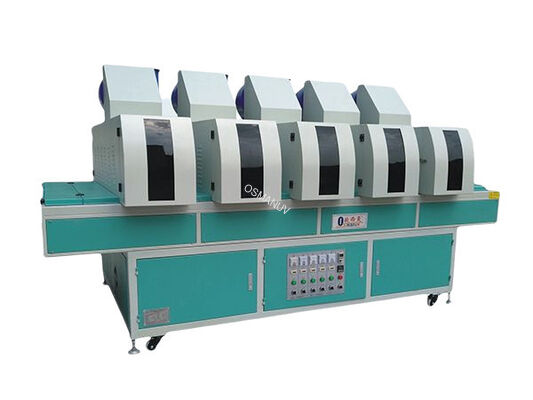

380V 50HZ Five Imported Lamps UV Curing Machine

380V 50HZ Five Imported Lamps UV Curing Machine

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: osm-uv-1320Ⅴ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Uv Curing System Power Supply Voltage: 380V 50HZ, Three-phase Four-wire System.
Color: Computer White / Green Warranty: 1 Year
Type: UV Curing Machine Light Source Control System: With Strong, Weak Light, Light Intensity Of The Second 70%, 100% Adjustable Light
Operational High: 850-900 - Mm Is Adjustable Direction Of Transportation: From Left To Right
High Light:

Five Imported Lamps UV Curing Machine


380V 50HZ UV Light Curing Machine


380V 50HZ UV Dryer Machine

Product Description

Five Imported Lamps Led UV Curing Floor Machines Five Lamps UV Dryer For Wet Plate,Headphones, Earplugs, Optoele Factory


UV lamp power generally meets the requirements of 80~120W/cm, but the greater the power, the greater the heat, so the power should be selected according to the cured product and curing speed.


1. This machine can cure UV coatings in a short time through UV energy, which is highly efficient, energy-saving and environmentally friendly. Mechanization can greatly improve production efficiency, and is not affected by its external conditions. It is widely used for drying and curing all kinds of wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.

 1 Mechanical dimensions

3200mm long x 2230mm wide x 1680mm high.
(According to actual size)

 2 Effective processing size Effective width: 1320mm
 3 Lamps 5 imported lamps (synthetic whale iron mercury mercury), suitable for ultraviolet light curing of various products. 5. Speed: 5-20m/min.
 4 Material: The outer shell is made of cold-rolled plate, the thickness is 2mm, and the surface is treated with liquid paint, which is wear-resistant and corrosion-resistant. The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect.

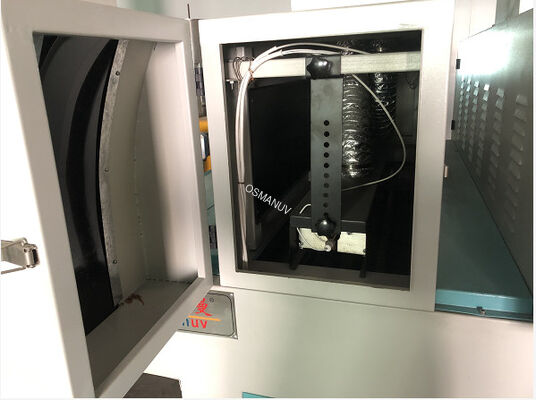

 5 Lamp 5pcs British PRIMARC12KW 1520mm mercury lamp. The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products.
 6 Reflector

It is made of aluminum and is integrally formed with alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%.

 7 Transmission system

stainless steel mesh belt (wire diameter 2.0 mesh 20*15), with high temperature resistance, UV resistance and other characteristics. Make the machine run more smoothly.
It adopts Siemens motor and Italian Modoli reducer, Mitsubishi frequency converter to control the speed, and the panel is equipped with potentiometer speed control knob.

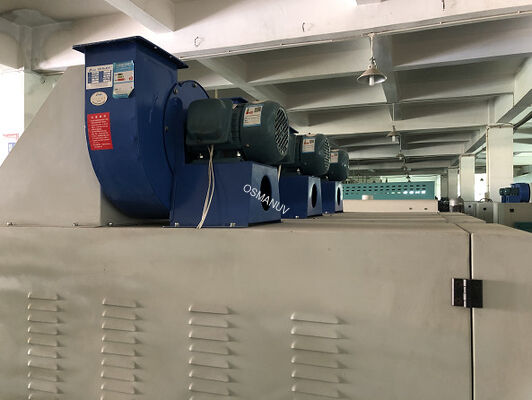

 8 Heat dissipation system forced air cooling, integrated design of light box, sufficient heat dissipation and good effect.
 9 Light source control system: a. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the light intensity is 70%, 100% dimmable.
b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.
C. Each lamp tube is equipped with a white fuse.
 10 Electrical parts

UV transformer, capacitor independent control electric box, OMRON relay, Taian contactor, CKC brand for delay time, and switch from Japan Izumi company, all comply with CE standards.

 11 Safety devices leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses... all comply with international safety standards.
 12 Working height 850-900mm adjustable (the height of the conveyor belt from the ground).
 13 Conveying direction from left to right.
 14 Warranty One year for the whole machine, half a year for electrical parts, and 800-1000 hours warranty for UV lamps.
 15   The lamp is guaranteed for 800-1000 hours


380V 50HZ Five Imported Lamps UV Curing Machine 0380V 50HZ Five Imported Lamps UV Curing Machine 1

Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
