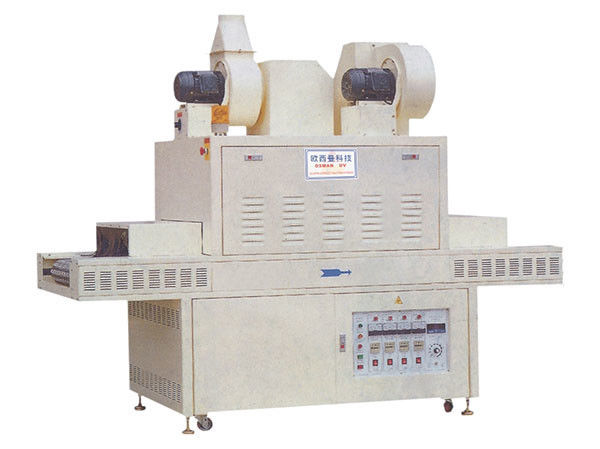

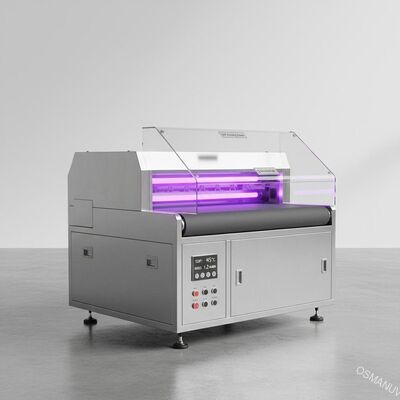

400mm width Conveyor UV Curing Machine For KT Boards
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-UV-204A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | UV Curing System | Warranty: | 1 Year |
|---|---|---|---|
| Power Supply: | 380V 50HZ | Specification: | 1900mm Long X 700mm Wide X 1700mm High, The Actual Size Shall Prevail |
| Color: | Computer White | Conveyor Mesh Width: | 400mm |
| Highlight: | 400mm Width Conveyor UV Curing Machine,KT Boards UV Curing Machine,400mm Width Conveyor UV Curing Equipment |
||
Product Description
UV ultraviolet light curing machine designed for conveyor systems in screen printing, self-adhesive trademarks, KT boards, glass, ceramics, and various electronic applications.
This industrial UV curing system is suitable for micro speakers, electroacoustic industry components, speaker horns, receivers, earphones, earplugs, optoelectronics, optical fibers, microelectronics assembly bonding, IC protection and sealing, integrated circuit chips, glass plate wafers, lead bonding, bare sheet sealing, electronic material assembly, UV curing adhesive bonding, surface coating, encapsulation materials, optical adhesive bonding, and reinforcement adhesive applications.
The treating agent is applied to the material surface. After drying through ultraviolet radiation, the photoinitiator splits to produce free radicals, triggering polymerization reactions that increase material polarity and improve adhesion properties.
| Instant irradiation within seconds | Space-saving, energy-efficient design |
| Improved quality, mass production capability, cost reduction | Special low-temperature design prevents EVA foaming deformation |
| Automatic alarm and display for lamp failure | Standard procedure verification for lighting issues |
| Automatic shutdown with warning light activation during UV system failures | |
| Parameter | Specification |
|---|---|
| Housing Material | 1.5mm cold-rolled plate, bent and welded, computer white painted finish, wear-resistant, corrosion-resistant, durable |
| UV Lamp | Imported British PRIMARC high-pressure mercury lamp, 2KW × 4 lamps, individual lamp control, strong/weak light conversion (50%/100%), adjustable illumination angle and height |
| UV Lampshade | Aluminum construction with German Alanod reflector, integrated design, >38% UV light utilization |
| Conveyor Width | 480mm |
| Conveyor Belt | Stainless steel mesh belt, high temperature and UV resistant, stable transportation |
| Entrance Height | 10cm-20cm, adjustable |
| Belt Height from Ground | 750mm-800mm |
| Furnace Temperature | 75°C |
| Speed | 3-10m/min, stepless speed regulation |
| Cooling Method | Motor forced air cooling |
| Electrical Components | Kyushu cooling fans (1.1kw fan, 1×750mm exhaust, 1 intake), Taiwan Dongweiting TWT geared motor, Shilin contactors, CKC delay components, Japanese Izumi switches |
| Control Panel | UV lamp ammeter, lighting operation timer, over-temperature indicator, lighting completion indicator, power indicator, start/stop switches, UV light switch, strong/weak light switch |
| Safety Devices | Leakage circuit breaker, over-temperature prevention, transmission motor overload protection, emergency switch, control line fuses - compliant with international safety standards |
