Automatic Temperature Control Constant Temperature Oven 380V 50HZ For Textile Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | GX-RK-21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Product Named: | Single Side Oven | Color: | Computer White / Green |
|---|---|---|---|
| Size: | 900 Mm X 1300 Mm X 1650mm | Voltage: | 380V 50HZ |
| Warranty: | 1 Year | Weight: | 900kg |
| High Light: | Constant Temperature Oven 380V,Textile Industry Constant Temperature Oven,Industrial Drying Oven 380V 50HZ |
||
Product Description
Constant Temperature Oven Industrial Drying Oven Automatic Temperature Control Company For Textile industry
Description:
The drying of wood before making wooden molds and woodware can prevent product deformation, and the drying of ceramic blanks before calcination can prevent the finished product from cracking. .

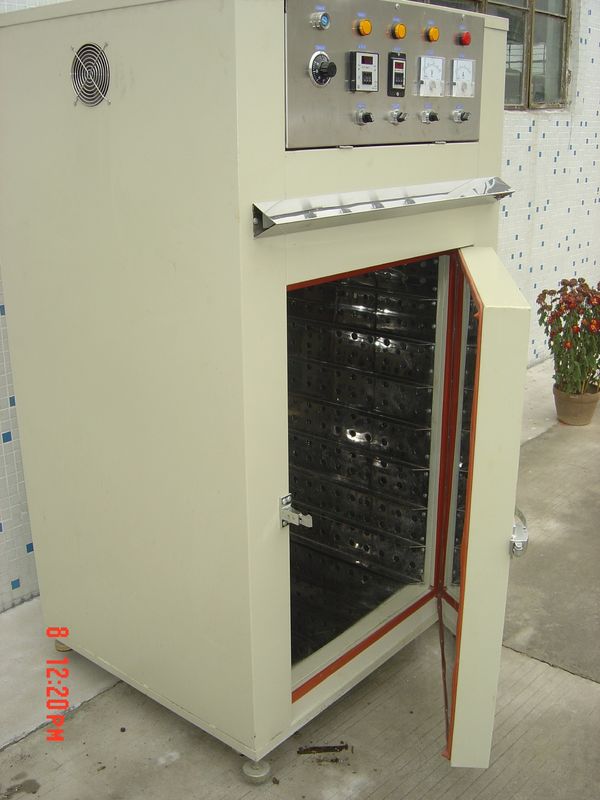

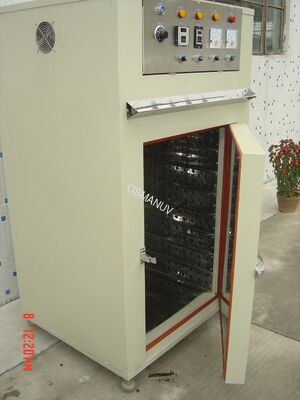

| 1 | Equipment Name | GX-RK-21 Precision Constant Temperature Oven (Picture is attached) |
| 2 | Power supply | AC380V 50HZ |
| 3 | inside dimension width: |
900MM* depth 1300MM* height 1650MM (a total of 2 layers;the minimum width of screen version 790MM, the maximum width of screen version 880MM) |
| 4 | outer dimension width | 1400MM* deep 1550MM* high 1900MM |
| 5 | The maximum temperature range of room temperature is 150℃, adjustable from room temperature to 150℃, adopting Japanese OMRON E5AN automatic temperature controller, temperature uniformity ±3% (empty furnace test) | |
| 6 | model structure adopts double door design, additional explosion-proof door buckle, equipped with temperature resistant silicon glue forced to assemble, strong and compact easy to open, easy to close, the American button is strong and durable, and can effectively prevent the occurrence of accidents, the furnace adopts horizontal air intake, can make each layer of mesh plate directly pushed into the oven, even baking. | |
| 7 | SUS 304# mirror stainless steel, 1.5mm cold rolled plate, 5.0mm thickness of bottom plate welded high temperature paint, computer white | |
| 8 | The insulation material adopts advanced insulation cotton, six sides of insulation and heat relay, the thickness of insulation cotton is 100MM, the surface temperature of the machine is low, energy saving, environmental protection and pollution-free. Digital 999min timer, when the temperature is up to the beginning of the timer, the buzzer will alarm, and the alarm light will blink at the same time. When the time is up, the electric heating will be cut off and the ventilation will be continued. |
|
| 9 | Taiwan yin-ming brand solid state relay, yin-ming brand short needle temperature control head, over temperature alarm protection. | |
| 10 | The air supply system can control the temperature in the furnace between 20 ℃ and 150℃ | |
| 11 |
Air supply motor adopts Taiwan Dongyuan type high temperature hot air oven long shaft motor, 1HP with 9 inch air blade. |
|
| 12 | Equipped with air inlet, air outlet, 5M long power cord. |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
