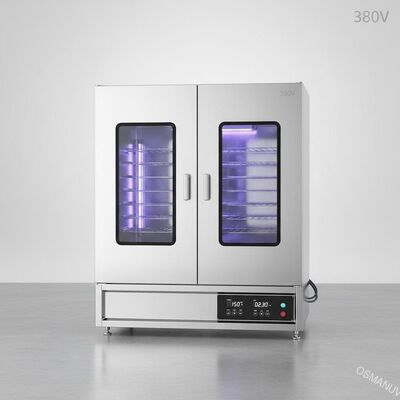

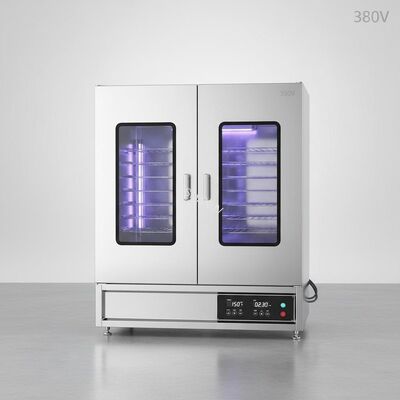

380V Two Door UV Constant Temperature Blast Drying Oven
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | GX-RK-23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T,Western Union |
|
Detail Information |
|||
| Product Named: | The Two-door Oven | Color: | Computer White / Green |
|---|---|---|---|
| Size: | 900 Mm X 1300 Mm X 1650mm | Voltage: | 380V 50HZ |
| Warranty: | 1 Year | Weight: | 900kg |
| Highlight: | UV Blast Drying Oven,380V Two Door Blast Drying Oven,UV Constant Temperature Oven |
||
Product Description
380V Two Door UV Constant Temperature Blast Drying Oven
Product Overview
GX-RK-23 Precision Constant Temperature Oven featuring advanced double-door design with UV drying capabilities for industrial applications.
Technical Specifications
| Equipment Name | GX-RK-23 Precision Constant Temperature Oven |
|---|---|
| Power Supply | AC380V 50HZ |
| Internal Dimensions | 900mm (width) × 1300mm (depth) × 1650mm (height) 2 layers total Screen version: 790mm (min width) - 880mm (max width) |
| External Dimensions | 1400mm (width) × 1550mm (depth) × 1900mm (height) |
| Temperature Range | Room temperature to 150°C, adjustable Japanese OMRON E5AN automatic temperature controller Temperature uniformity: ±3% (empty furnace test) |
Key Features
- Double door design with explosion-proof door buckle for enhanced safety
- Temperature resistant silicon glue assembly for strong, compact construction
- Durable American buttons designed to prevent accidents

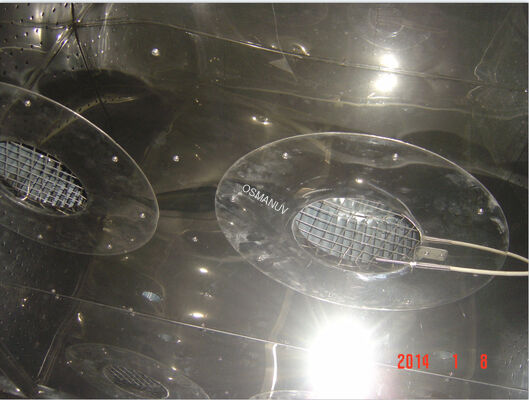

- Horizontal air intake system for even baking across all mesh plate layers
- SUS 304# mirror stainless steel construction with 1.5mm cold rolled plate
- 5.0mm thickness bottom plate with high temperature paint and computer white finish
- Advanced insulation cotton with six-sided insulation and heat relay (100mm thickness)
- Low surface temperature, energy efficient, environmentally friendly design
- Digital 999-minute timer with buzzer alarm and indicator light
- Automatic electric heating cutoff and continued ventilation when time expires
- Taiwan Yin-Ming brand solid state relay and short needle temperature control head
- Over temperature alarm protection system
- Air supply system maintains temperature between 20°C and 150°C
- Taiwan Dongyuan high temperature hot air oven long shaft motor (1HP with 9-inch air blade)
- Comprehensive safety protection: over temperature protector, motor overload current protection, control line insurance, electric heating over current protection, no fuse switch
- All electrical accessories meet national first-grade product standards
- Equipped with air inlet, air outlet, and 5M long power cord
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our products are manufactured according to GMP & ISO standards and have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
Product Gallery
