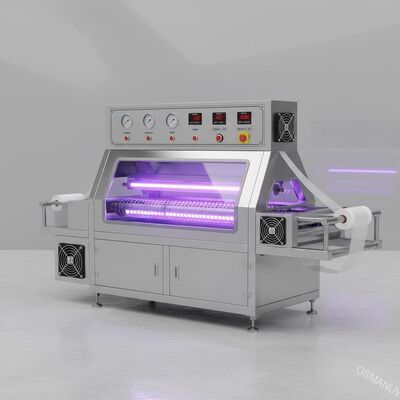

18KW SS304 Mesh Belt UV Curing Machine For Film / Paper
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-UV-503C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Uv Curing Machine | Weight: | 780kg |
|---|---|---|---|
| Total Power: | 18KW | Feeding Speed: | 1-15m/min |
| Working Width: | 650mm | Color: | Computer White |
| Highlight: | SS304 Mesh Belt UV Curing Machine,18KW UV Curing Machine,SS304 Mesh Belt UV Roll Coater |
||
Product Description
18KW SS304 Mesh Belt UV Curing Machine For Film / Paper
18KW 15m/Min Stainless Steel UV Curing Machine Computer White
Roll coater is called roll coater. That is, a device that uses more than one set of rotating rollers to apply a certain amount of paint to a flat material.
Technical Specifications
| Power Supply | AC 380V 50HZ | Total Power | 18KW |
|---|---|---|---|
| UV Lamp | 5KW lights 3 in type | Feeding Speed | 1-15m/min stepless speed regulation |
| Dimensions | L: 2450mm W: 1020mm H: 1780mm |
Electrical Part | Taiwan transformer, CKC delay OMRON relay/Delta inverter |
| Working Width | 650mm | Belt Material | Stainless steel 304 mesh belt |
| Cooling System | Fan cooling | Machine Weight | 780kg |
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
Want to Know more details about this product
