Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: UV-UVA-203

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 20 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: UV Curing System Color: Computer White
Power Supply: 380V Three-phase Five-wire System Specification: 1930mm Long X 650mm Wide X 1650mm High
Speed: 1-10 M/min Warranty: 1 Year
Inlet And Discharge Port: 10-200mm Adjustable
High Light:

Forced Air Cooling UV Curing Machine


Precision Electronic Products UV Curing Machine


380V UV Curing System

Product Description

UV Curing Machine For Precision Electronic Products Forced Air Cooling Factory 380V Three-Phase 1meters/Min

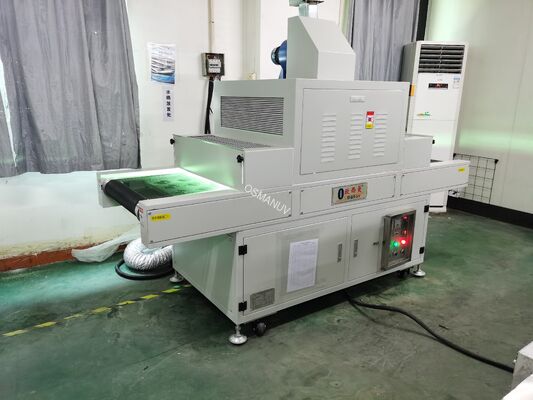

The types and styles of UV curing machines are different due to the different products they are curing, but their ultimate purpose is the same, which is to cure UV paint or UV ink. The UV curing device is composed of five parts: a light source system, a ventilation system, a control system, a transmission system and a cabinet.

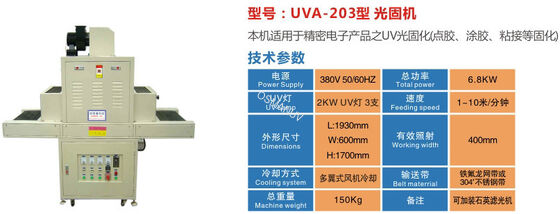

  1 Power supply 380V three-phase five-wire system
  2 Specifications 1930mm long x 650mm wide x 1650mm high.
  3 Housing material The housing is made of 1.5 cold-rolled plate bending and welding, and the housing is painted computer color
  4 UV lamp the use of imported lamps, 2KW UV lamp 3, UV output more than 90%, installed in the top of the UV furnace 1 downward irradiation, on both sides of the installation of 2KW UV lamp 1, inward irradiation, UV lamp height, Angle can be adjusted, to achieve multi-angle UV curing.
  5 UV lampshade the use of professional reflective materials (Germany Alanod reflective piece) reflect ultraviolet light, durable, greatly improve the utilization rate of ultraviolet light (can increase more than 38%)
  6 conveyor belt the use of black conveyor belt transmission products, network width of 450mm, with high temperature resistance, UV resistance and other characteristics, and smooth transmission
  7 Transmission speed 1-10 meters/minute, stepless speed regulation.
  8 Inlet and outlet 10-200mm adjustable.
  9 Cooling method forced air cooling.
  10 Control panel ammeter, voltmeter, UV lamp 1 switch, UV lamp 2 switch, UV lamp 3 switch, time timer, temperature controller, governor, power switch, power indicator, fan indicator, etc.
  11 Electrical parts OMRON relay,CHNT contactor, time delay adopts CKC brand, Japan Wazumi switch, leakage circuit breaker, etc
  12 Safety devices leakage circuit breaker, phase sequence protection, temperature controller......
Control line and fuse are in line with international safety standards.




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
