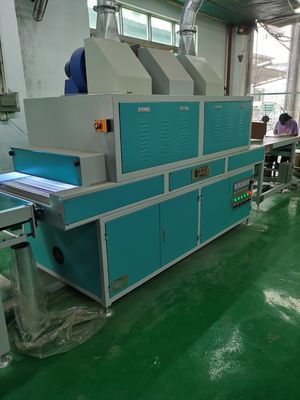

380V 80mm Thick Automatic Loading Uv Painting Machine Calcium Silicate Use

380V 80mm Thick Automatic Loading Uv Painting Machine Calcium Silicate Use

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: osm-uv-1320Ⅲ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work dys
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

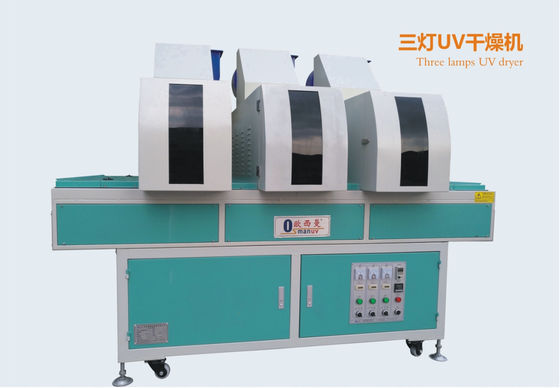

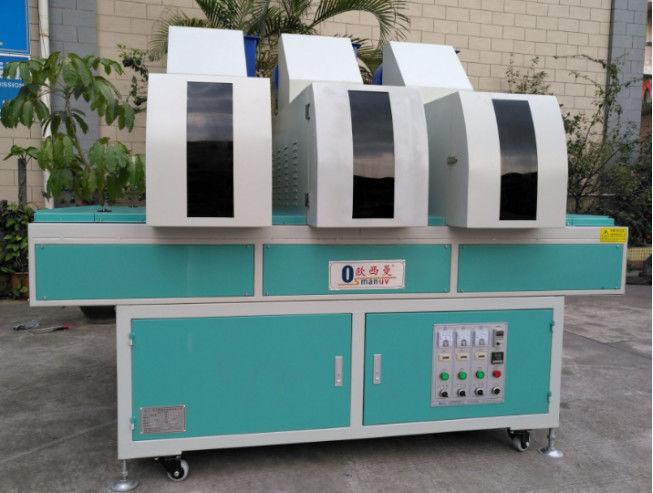

Product Name: Three- Lamps UV Dryer Color: Computer White / Green
Feature: UV Coating Can Be Cured In A Short Time Supply Voltage: 380V 50HZ
Effective Working Size: Effective Width: 1320mm, Thickness: 2-80mm, Length (shortest) : 300mm Mechanical Dimension: 2300mm Long X 2230mm Wide X 1410mm High
High Light:

380V uv painting machine

,

80mm uv painting machine

,

380V automatic loading machine

Product Description

380V 80mm Thick Automatic Loading Uv Painting Machine Calcium Silicate Use

Description:

This machine can cure UV coatings in a short time through UV energy, which is highly efficient, energy-saving and environmentally friendly. Mechanization can greatly improve production efficiency, and is not affected by its external conditions. It is widely used for drying and curing all kinds of wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.

 1 Mechanical dimensions:

2400mm long x 2230mm wide x 1680mm high.

(According to actual size)

 2  Effective processing size

effective width: 1320mm

 3 Lamps

3 imported lamps (synthetic iron mercury),

suitable for ultraviolet light curing of various products. 5. Speed: 5-20m/min.

 4 Material

The outer shell is made of cold-rolled plate with a thickness of 1.5mm.

The surface is treated with liquid paint, which is wear-resistant and corrosion-resistant.

The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect.

 5 Lamp

3 pieces of British PRIMARC 9.7KW 1387mm mercury lamp.

The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products.

 6 Reflector It is made of aluminum and is integrally formed with alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%.
 7 Transmission system

stainless steel tandem rod transmission, with high temperature resistance and ultraviolet resistance.

Make the machine run more smoothly. It is controlled by 1HP Desheng motor, Wanxin reducer, Taiwan Delta frequency converter, and the speed is adjustable 5-20 m/min.

 8 Cooling system
 9 Light source control system:

a. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the light intensity is 70%, 100% dimmable.

b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.

 10 Electrical part: use OMRON relay, CHNT contactor, Delta frequency converter, Wanxin reducer, Siemens motor, delay time adopts CKC brand, switch adopts Japanese Izumi company production, all comply with CE standards.
 11 Safety devices leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses... all comply with international safety standards.

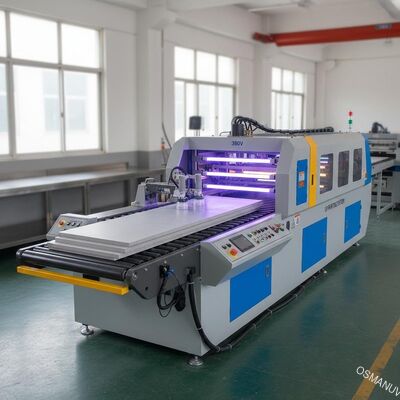

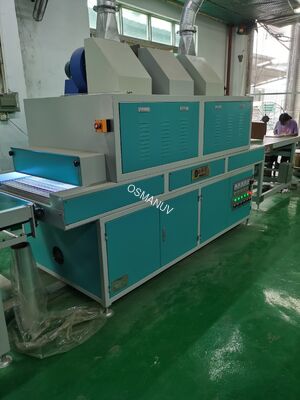

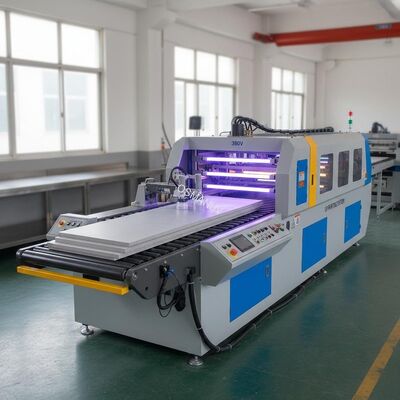

380V 80mm Thick Automatic Loading Uv Painting Machine Calcium Silicate Use 0380V 80mm Thick Automatic Loading Uv Painting Machine Calcium Silicate Use 1

FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
