Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UV-1320

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 10 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Single Lamp UV Curing Machine Supply Voltage: 380V 50HZ
Size: 1200 Mm×2230 Mm×1410 Mm Application: Wood, Aluminum Board, Acrylic Board, Calcium Silicate Board, PVC Board, Hardware Accessories And Other Surfaces Dry And Solidify
Cooling: Forced Air Cooling, The Chassis Is Split Design, The Light Box Adopts Independent Lamp Group Cooling Channel Safety Device: Leakage Circuit Breaker, Over Temperature Protection, Transformer, Motor Overload Protection, Control Line Fuse...... Etc. Are In Line With International Safety Standards
High Light:

3m/Min UV Curing Machine

,

1.5mm UV Curing Machine

Product Description

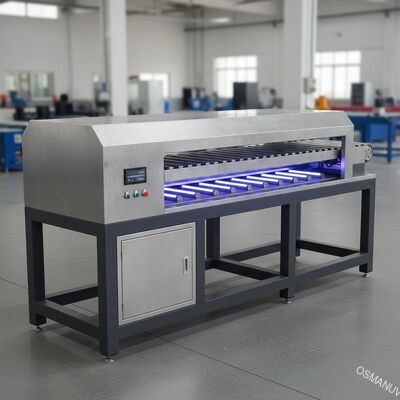

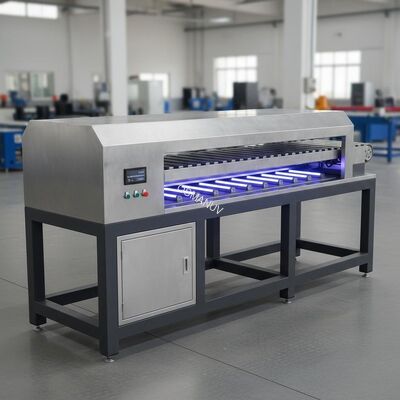

1.5mm Thickness 3m/Min UV Curing Machine Aluminum Board Use



Description:

 1 Product name UV light curing machine.
 2 Model: OSM-UV-1320 type.
 3 Features

This machine can cure UV coatings in a short time through UV energy, which is highly efficient, energy-saving and environmentally friendly.

Mechanization can greatly improve production efficiency, and is not affected by its external conditions.

It is widely used for drying and curing all kinds of wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.

 4 Mechanical dimensions

1200mm long × 2230mm wide × 1410mm high.

(According to actual size)

 5 Effective processing size Effective width: 1320mm, thickness: 3-80mm, length (shortest): 300mm.
 6 Power supply voltage 380V 50HZ, three-phase four-wire system.
 7 Material

The outer shell is made of cold-rolled plate with a thickness of 1.5mm.

The surface is treated with liquid paint, which is wear-resistant and corrosion-resistant.

The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect.

 8 Lamp

1 unit of American WESTERN QUARTZ 9.7KW 1387mm mercury lamp.

The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products.

 9 Reflector It is made of aluminum and is integrally formed with alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%.
 10 Transmission system

Stainless steel tube transmission, with high temperature resistance, UV resistance and other characteristics.

Make the machine run more smoothly.

It is controlled by 1HP Desheng motor, Yingyi reducer, Taiwan Delta inverter, and the speed can be adjusted 5-20 meters per minute.

 11 Cooling system Forced air cooling, the chassis is split design, and the light box adopts independent lamp group cooling channel, which has sufficient heat dissipation and good effect.
 12 Light source control system: a. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the light intensity is 70%, 100% dimmable.
b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.
 13 Electrical part OMRON relay, CHNT contactor, CKC brand for time delay, and switch from Izumi, Japan, all complying with CE standards.
 14 Safety devices leakage circuit breaker, over-temperature protection, transformer, motor overload protection, control circuit fuse... all comply with international safety standards.





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
