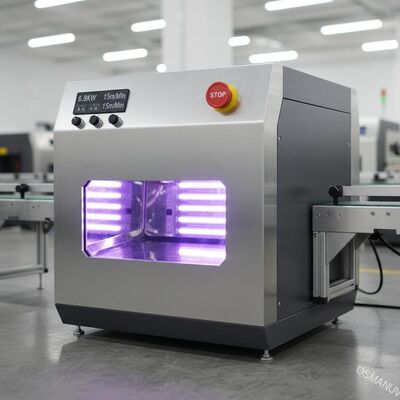

6.8KW 15m/Min Stop Switch Reflective UV Curing Machine / Uv Led Curing System

6.8KW 15m/Min Stop Switch Reflective UV Curing Machine / Uv Led Curing System

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-GXUV-302

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Uv Curing System Total Power: 6.8KW
UV Lamp: Two 3KW UV Lamps Weight: 380KG
Belt Materrial: Stainless Steel Feflon Speed: 0-15 M/min
High Light:

6.8KW UV Curing Machine

,

15m/Min UV Curing Machine

,

6.8KW uv led curing system

Product Description

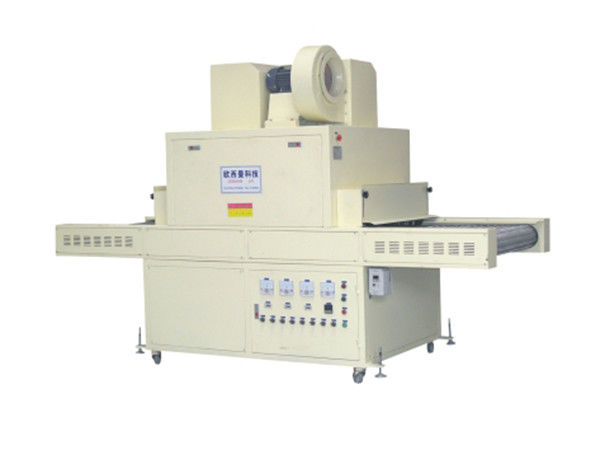

6.8KW 15m/Min Stop Switch Reflective UV Curing Machine CKC Brand



Description:



This machine is suitable for LCD, LED and other electronic products, precision components and other ultraviolet light curing.


Features:



High efficiency UV beam can make UV paint, glue, ink and so on fast and instant curing (time 5-8 seconds)

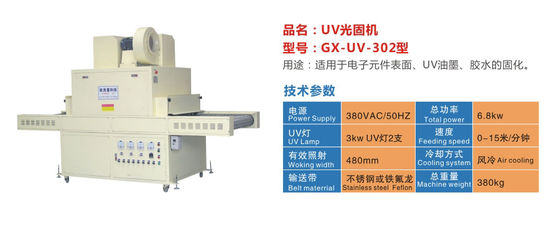

parameter

 1 Product name UV curing machine
 2 Model

OSM-UV-302

 3 Specifications 2300mm long × 550mm wide × 1700mm high
 4 UV lamp 2pcs 3.6KW halogen UV lamp, original lamp tube from WESTERN QUARTZ, USA. It is installed on the top of the UV furnace, irradiates downwards, and its height and angle can be adjusted.
 5 Conveying net width 330mm (in and out of material 20mm-200mm)
 6   The height of the conveying net is 900-950mm.
 7 Effective irradiation width 1000mm*300mm.
 8 Conveyor belt black mesh belt is used, which has the characteristics of high temperature resistance, dustproof and rustproof, easy to clean and so on.
 9 Housing material 3mm cold-rolled plate is bent and welded, and the housing is painted computer color.
 10 Speed ​​control system adopt Taiwan Dongweiting motor, reducer box as transmission power, adjustable speed 0-15m/min, stepless speed regulation. The panel control is equipped with an LED speed display.
 11 UV lampshade using professional reflective material (German alanod reflector) to reflect the ultraviolet light, durable and greatly improve the utilization rate of ultraviolet light (more than 30%).
 12 Cooling system: use Kyushu HP fan, (one intake and one exhaust) heat dissipation effect is good. The air volume is adjustable.
 13 Electrical part Shihlin contactor is adopted, CKC brand is adopted for delay time, and TWT speed regulation system. The switch is produced by Japan's Izumi company, and the temperature control and relay are of OMRON brand.
 14 Control panel: UV lamp ammeter, power indicator, start switch, stop switch, fan working indicator, UV lamp switch, time accumulator (with reset function), emergency stop device on the machine. The door of the UV machine is equipped with a micro switch. When the furnace door is opened, the UV lamp cannot work.





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
