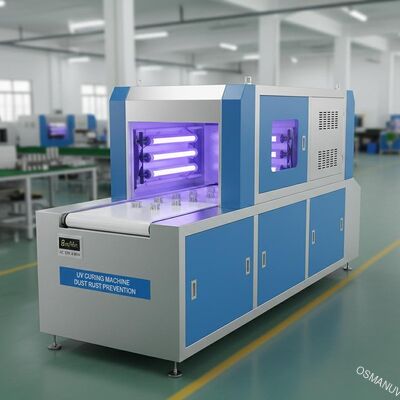

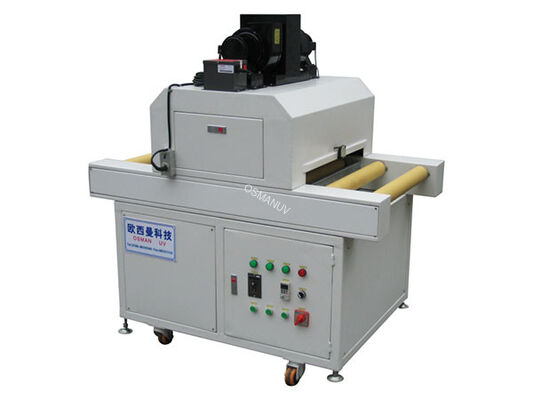

8m/Min AC 220V 4.8KW UV Curing Machine Dust Rust Prevention
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-UV-202TZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | UV Curing System | Color: | Computer White |
|---|---|---|---|
| Power Supply: | AC 220V | Total Power: | 4.8KW |
| Weight: | 100KG | Dimensions: | L:1200mm W:500mm H:1180mm |
| Speed: | 1-8m/min | ||
| Highlight: | AC 220V UV Curing Machine,8m/Min UV Curing Machine |
||
Product Description
8m/Min AC 220V 4.8KW UV Curing Machine Dust Rust Prevention
Product Overview
High-performance UV curing machine designed for industrial applications with dust and rust prevention capabilities. Features advanced control systems and safety mechanisms for reliable operation.
Technical Specifications
| Feature | Specification |
|---|---|
| Material | S41 steel plate shell, 1.5mm thickness with electrostatic powder paint surface treatment |
| Lamp Tube | Three 3KW UV lamps with adjustable height and angle within the UV furnace |
| Conveyor Belt | 550mm mesh width, black mesh belt with high temperature resistance, dust/rust prevention, and easy cleaning |
| Working Height | 200mm (inlet/outlet height: 20mm-200mm) |
| Speed Control System | Taiwan Likun speed controller with 1-10 meters adjustable speed and LED speed display |
| Cooling System | Kyushu HP fan for exhaust and heat dissipation with excellent cooling performance |
| Reflector | Aluminum construction with German Alanod imported reflective lenses, increasing UV reflection efficiency by 38% |
| Control System | Independent lamp control system with LCD use time recorder for monitoring lamp usage |
| Electrical Components | Chint contactor, CKC time delay, Japanese Izumi switches, and OMRON relays |
Key Features
- Double-layer steel plate heat insulation in UV section for reduced cooling effect
- Comprehensive safety devices including leakage circuit breakers, emergency switches, fuses, transformers, and motor overload protection
- Compliance with national safety standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
