• Front type uv curing machine high power uv lamp uv led curing lamp
  • Front type uv curing machine high power uv lamp uv led curing lamp
Front type uv curing machine high power uv lamp uv led curing lamp

Front type uv curing machine high power uv lamp uv led curing lamp

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UVQ-8506

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

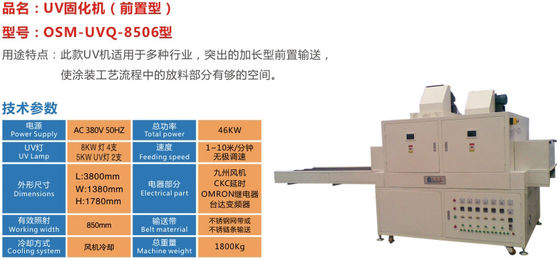

Detail Information

Product Name: UV Curing System Total Power: 46kw
Working Width: 850mm Warranty: One Year
Dimensions: L:3800mm W:1380mm H:1780mm Weight: 1800kg

Product Description

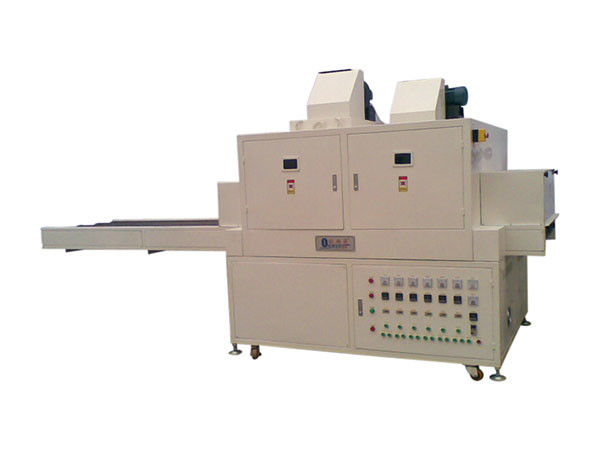

Front type uv curing machine high power uv lamp uv led curing lamp



Description:



This UV machine is suitable for a variety of industries, prominent lengthening type front transport,Make the feeding part of the painting process have enough space.



Features

 1 Product name: UV light curing machine
 2 Model: GX-UV-7502
 3 Specification:  3800mm long × 1380mm wide × 1780mm high
 4 Material: (A) The shell is made of S41 steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint.
 5 Lamp:

4pcs imported American WESTERN QUARTZ 8KW crop lamp and 2pcs 5KW mercury lamp. The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products.


 6 Conveyor belt: US black conveyor belt is adopted, which has the characteristics of high temperature resistance and ultraviolet resistance. The net width is 850mm.
 7

Working height:

200mm (inlet and outlet height 20mm-200mm)
 8 Transmission system:

The belt line power adopts an enhanced 1.0HP Songling motor. The speed can be adjusted from 1 to 10 meters per minute, and the speed can be adjusted steplessly. The panel control is equipped with an LED speed display.
Cooling system: forced air cooling, good heat dissipation effect.


 9 Reflector:

It is made of aluminum and is integrally formed with imported alauod reflective lenses, which can increase the UV reflection efficiency by 38%.


 10 Control system: Each group of lamps can be controlled independently.
 11 Features: The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect.

 12 Electrical part: OMRON relays, Chint contactors, CKC brand delays, switches are produced by Japanese companies.
 13 Safety devices: leakage circuit breakers, abnormal emergency switches, motor overload protection, control circuit fuses... all comply with international safety standards.







FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
