18KW 1.5mm Thick Uv Floor Curing Machine With  Mesh Belt

18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UV-503C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

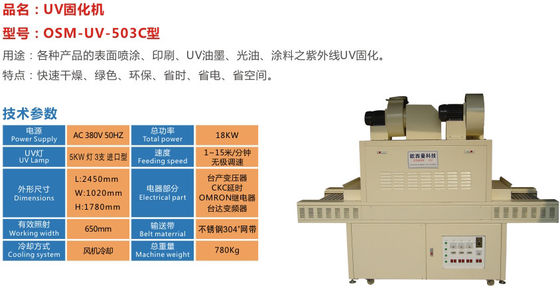

Product Name: UV Curing Machine Power Supply: AC 380V 50HZ
Total Power: 18KW Feeding Speed: 1-15 M/min
Color: Computer White Weight: 780KG
High Light:

18KW uv floor curing machine

,

1.5mm uv floor curing machine

Product Description

18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt



Description:

 1 Material: The shell is made of rolled plate, the thickness is 1.5mm, and the surface is sprayed with plastic.
 2 Lamp tube 3 UV lamps British PRIMAC 5KW, 3 top lamps, respectively at different angles, the position, height, and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for the ultraviolet light of various products The UV lamp has a wavelength of 320~400nm, and the life span of the UV lamp is guaranteed for 800~1000 hours. The conveying width is 500 mm.
 3 The vertical height between the conveyor belt and the ground:
800mm.
 4   The conveyor belt adopts black mesh belt, which is resistant to ultraviolet rays, high temperature and durable.
 5 Cooling system using a fan to effectively discharge the heat generated by the UV lamp.
 6 Reflective cover: It is made of aluminum and is integrally formed with German alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%.
 7 Control system:

(1) Each group of lamps can be controlled independently.



(2) Each group of lamps can be equipped with an LCD timer, which can be reset to zero.



(3) Electrical part: use CHNT contact, CKC timing, OMRON relay, NIPPON timer and spring switch, etc

 8 Speed ​​control system: adopt Taiwan Delta frequency converter, stepless speed regulation, 0-10m/min.
 9 Safety devices: leakage circuit breaker, abnormal emergency switch, phase sequence protection, transformer, motor overload protection, control circuit fuse, etc., in line with national safety standards.

 10 Features:

(1) The UV section is insulated with double-layer steel plates, and the thickness of the insulation layer is 50mm, which can effectively reduce the cooling effect.



(2) Two-stage lamp power output switching, the range is 75%, 100% adjustable.



(3) The curing energy of UV lamp is 700~800mj/cm2.



(4) The curing range is 800~1200mw/cm2.







FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
