27.5KW 3m/Min black Uv Conveyor Machine With LED Speed Display

27.5KW 3m/Min black Uv Conveyor Machine With LED Speed Display

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UV-804A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: UV Curing Machine 406B Total Power: 27.5KW
Feeding Speed: 3-20m/min UV Lamp: Six
Weight: 650KG Dimensions: L:5800mm W:1050mm H:1780mm
Power Supply: 380V 50/60 HZ
High Light:

27.5KW uv conveyor machine

,

3m/Min uv conveyor machine

Product Description

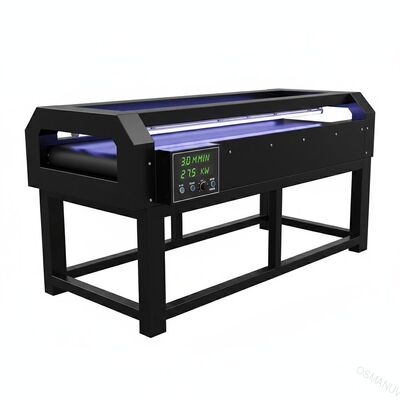

27.5KW 3m/Min black Uv Conveyor Machine With LED Speed Display



Description:

 1 Product name

UV light curing machine.

 2 Specifications:

5800mm long × 1050mm wide × 1780mm high

(can be customized according to actual needs).

 3 Material The shell is made of S41 steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint.
 4 Lamp tube: 6 4KW UV lamps are used, and the height and angle of the lamp tube in the UV furnace can be adjusted.
 5 Conveyor belt:

the mesh width is 800mm, and the stainless steel 304 mesh belt is adopted, which has the characteristics of high temperature resistance, dust and rust prevention, and easy cleaning.

 6 Speed control system: adopts Taiwan Likun speed regulator, the speed can be adjusted for 1-10 meters, and the panel control is equipped with LED speed display.
 7 Cooling system forced air cooling.
 8 Speed 3~20m/min
 9 Electrical part: The contactor adopts the Chint brand, the delay adopts the CKC brand, the switch adopts the Japanese Izumi company, and the relay adopts the OMRON brand.
 10 Safety devices:

leakage circuit breakers, abnormal emergency switches, control circuit fuses, transformers, motor overload protection devices, etc. comply with national safety standards.





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
