800mm width 27.5KW Uv Spot Curing System Forced Air Cooling

800mm width 27.5KW Uv Spot Curing System Forced Air Cooling

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UV-406B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

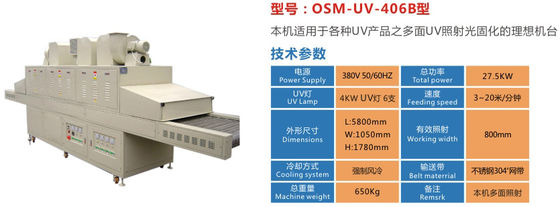

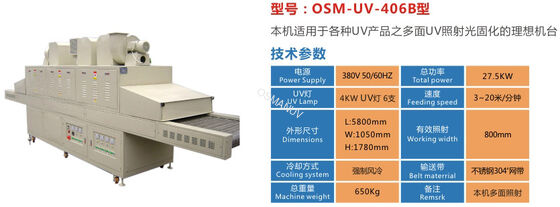

Product Name: Uv Curing Machine Weight: 650KG
Dimensions: L:5800mm W:1050mm H:1780mm Working Width: 800mm
Speed: 3-20 M/min Total Power: 27.5KW
High Light:

W800mm uv spot curing system

,

27.5KW uv spot curing system

Product Description

800mm width 27.5KW Uv Spot Curing System Forced Air Cooling



Description:

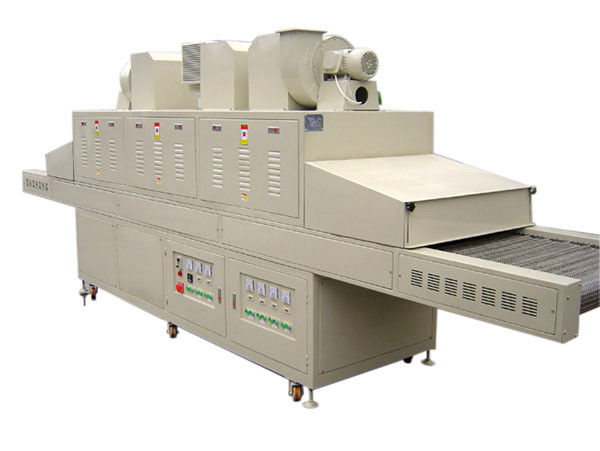

This machine is suitable for all kinds of UV products multi - faceted UV light curing machine.

  1 Housing material: The housing is made by bending and welding 1.5 cold-rolled plates, and the housing is painted in computer color
  2 UV lamp:

Imported lamp tube, 6 4KW UV lamp tubes, ultraviolet output above 90%, installed on the top of the UV furnace, 2 lamps for downward irradiation, and 1 4KW UV lamp on each side, irradiating inward, The top 2 of the UV furnace is irradiated upward, and the height and angle of the UV lamp can be adjusted to achieve multi-angle UV curing.

  3 UV lampshade:

Using professional reflective material (German alanod reflector) to reflect ultraviolet light, durable, greatly improving the utilization rate of ultraviolet light (more than 38%)

  4 Conveyor belt: Use black conveyor mesh belt to convey the products, the mesh width is 450mm, it has the characteristics of high temperature resistance, UV resistance, and stable transportation
  5 Transmission speed: 1-10 m/min, stepless speed regulation.
  6

Material inlet and outlet:


10-200mm adjustable.
  7 Cooling method: forced air cooling.
  8 Control panel: Ammeter, voltmeter, UV lamp 1 switch, UV lamp 2 switch, UV lamp 3 switch, time accumulator, temperature controller, speed controller, power switch, power indicator, fan indicator, etc.
  9 Electrical part: OMRON relay, CHNT contactor, CKC brand for time delay, Japanese Izumi switch, leakage circuit breaker, etc.
Safety devices: leakage circuit breaker, phase sequence protection, temperature controller... control circuit fuses, etc., all comply with international safety standards.





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
