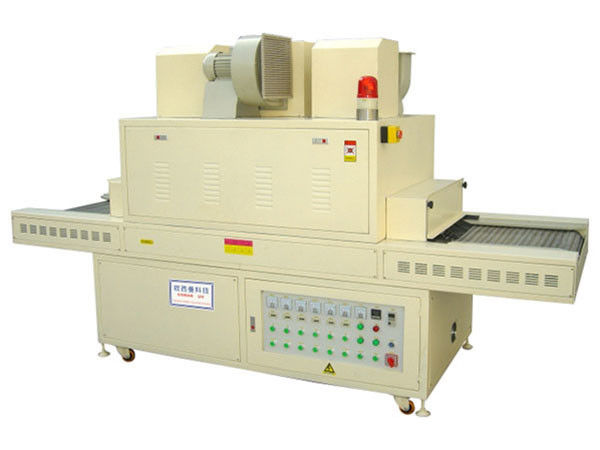

22KW Multifaceted Curing Machine Screen Printing 10mm Height Feed Port

22KW Multifaceted Curing Machine Screen Printing 10mm Height Feed Port
22KW Multifaceted Curing Machine Screen Printing 10mm Height Feed Port High-performance 22KW multifaceted curing machine designed for screen printing applications, featuring a 10mm height feed port for precise material handling. Technical Specifications 1 Material Shell made of S41 steel plate, 1...
Place of Origin:CHINA
Brand Name:Osmanuv
Certification:ISO9001 And CE
Model Number:OSM-UV-306B
Minimum Order Quantity:1 Set
Price:Negotiable
Product Custom Attributes
Highlight

22KW curing machine screen printing

,

10mm curing machine screen printing

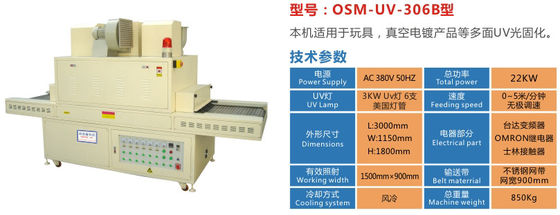

Product Name:
Uv Curing Equipment
Weight:
850kg
Power Supply:
AC 380V 50HZ
Dimensions:
L:3000mm W:1150mm H:1800mm
Working Width:
1500mm×900mm
Speed:
0-5m/min
Total Power:
22KW
Product Description

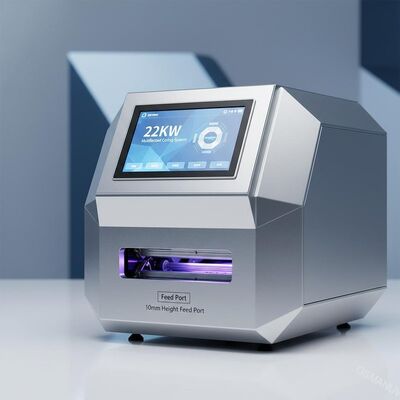

22KW Multifaceted Curing Machine Screen Printing 10mm Height Feed Port
High-performance 22KW multifaceted curing machine designed for screen printing applications, featuring a 10mm height feed port for precise material handling.
Technical Specifications
1 Material Shell made of S41 steel plate, 1.5mm thickness, surface treated with electrostatic powder paint
2 Lamp Tube Three 3KW UV lamps with adjustable height and angle within the UV furnace
3 Conveyor Belt 550mm mesh width, black mesh belt with high temperature resistance, dust and rust prevention, easy cleaning
4 Working Height 200mm (inlet and outlet height: 20mm～200mm)
5 Speed Control Taiwan Likun speed controller, adjustable speed 1-10 meters, panel control with LED speed display
6 Cooling System Kyushu HP fan for exhaust and heat dissipation with excellent heat dissipation effect
7 Reflector Aluminum construction with integrated German Alanod imported reflective lenses, increasing UV reflection efficiency by 38%
8 Control System Independent lamp control system with LCD use time recorder for lamp usage tracking
9 Features UV section uses double-layer steel plates for heat insulation, effectively reducing cooling effect
10 Electrical Components Contactor: Chint brand, Time delay: CKC brand, Switch: Japanese Izumi company, Relay: OMRON brand
11 Safety Devices Leakage circuit breakers, emergency switches, control circuit fuses, transformers, motor overload protection devices compliant with national safety standards
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing on our machines with video documentation for your review. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
