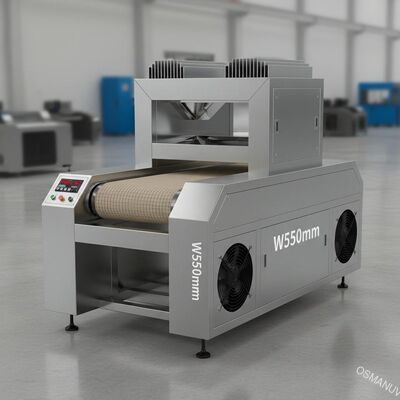

• 6.8KW W550mm Conveyor Belt UV Curing Machine Air Cooling System
6.8KW W550mm Conveyor Belt UV Curing Machine Air Cooling System

6.8KW W550mm Conveyor Belt UV Curing Machine Air Cooling System

Product Details:

Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-UVA-303D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T, Western Union
Supply Ability: According to customer's demand
Get Best Price Contact Now

Detail Information

Weight: 380KG Warranty: 1 Year
Automatic Grade: Automatic Product Name: UV Curing Machine
Total Power: 6.8KW UV Lamp: Two
Cooling System: Air Cooling
Highlight:

6.8KW UV Curing Machine

,

W550mm UV Curing Machine

,

6.8KW uv floor curing machine

Product Description

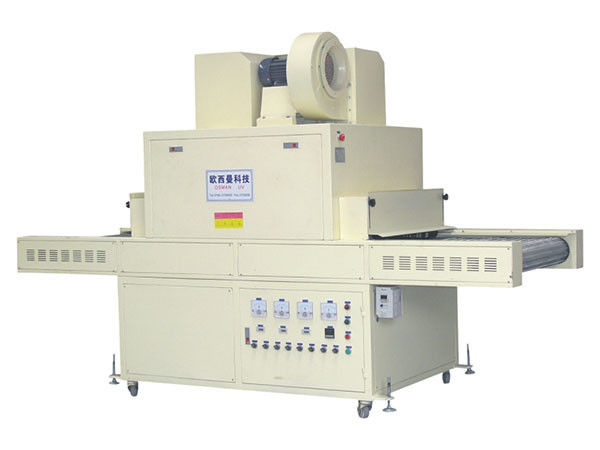

6.8KW W550mm Conveyor Belt UV Curing Machine Air Cooling System



Description:



It is suitable for curing the surface of electronic components, UV ink and glue.



parameter

  1 Product name: UV light curing machine.
  2 Model: GX-UV-303 type.

  3 Specifications:

2400mm long × 850mm wide × 1780mm high

(can be customized according to actual needs).

  4 Material: The shell is made of S41 steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint.
  5 Lamp tube: Three 3KW UV lamps are used, and the height and angle of the lamp tube in the UV furnace can be adjusted.
  6 Conveyor belt:

The mesh width is 550mm, and the black mesh belt is used, which has the characteristics of high temperature resistance, dust and rust prevention, and easy cleaning.

  7 Working height:

200mm (inlet and outlet height: 20mm~200mm).

  8 Speed ​​control system: adopts Taiwan Likun speed regulator, the speed can be adjusted for 1-10 meters, and the panel control is equipped with an LED speed display.

  9 Cooling system: use Kyushu HP fan for exhaust and heat dissipation with good heat dissipation effect.
  10 Reflector: It is made of aluminum and is integrally formed with reflective lenses imported from Germany alanod, which can increase the UV reflection efficiency by 38%.

  11 Control system:

(1) The lamp has an independent control system.



(2) The lamp is equipped with an LCD use time recorder to record the use time of the lamp

  12 Features: The UV section adopts double-layer steel plate for heat insulation, which can effectively reduce the cooling effect.
  13 Electrical part:
The contactor adopts the Chint brand, the delay adopts the CKC brand, the switch adopts the Japanese Izumi company production, and the relay adopts the OMRON brand.
  14 Safety devices: leakage circuit breakers, abnormal emergency switches, control circuit fuses, transformers, motor overload protection devices, etc. comply with national safety standards.





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
