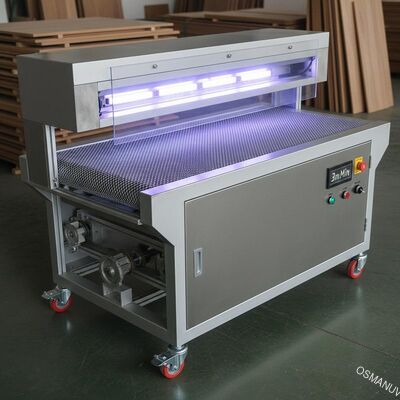

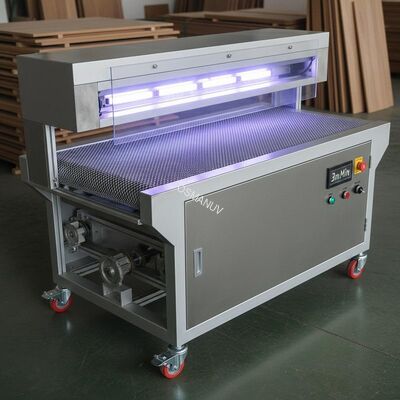

W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min

W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min

Product Details:

Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-UV-204A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T, Western Union
Supply Ability: According to customer's demand
Get Best Price Contact Now

Detail Information

Product Name: UV Curing System Warranty: 1 Year
Power Supply: 380V 50HZ Specification: 1900mm Long X 700mm Wide X 1700mm High, The Actual Size Shall Prevail
Color: Computer White Conveyor Mesh Width: 400mm
Highlight:

W400mm uv floor curing machine

,

3m/Min uv floor curing machine

Product Description

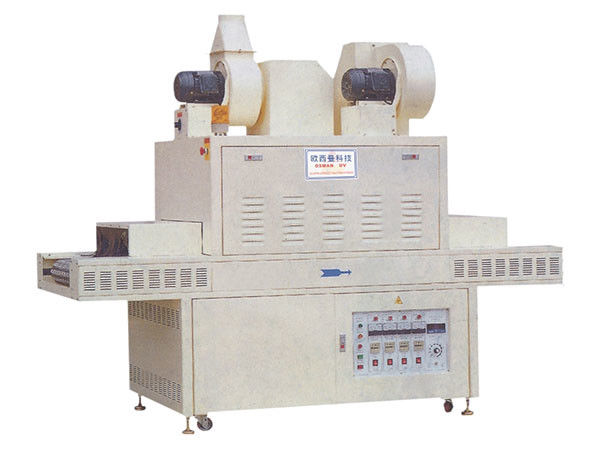

W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min



Description:



Wipe the treating agent on the shoe material, after drying by ultraviolet radiation, the photoinitiator split to produce free radical, trigger polymerization reaction, so that the shoe material polarity increase become easy to stick.

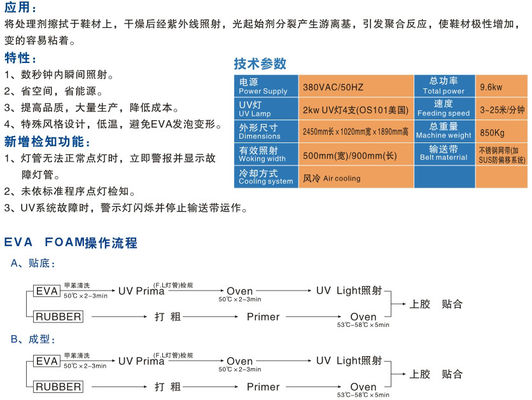

Features:

 1 Instant irradiation within a few seconds.Technical parameters
 2 save space, save energy.
 3 improve quality, mass production, reduce costs.
 4 Special style design, low temperature, avoid EVA foaming deformation.New detection function
 5 the lamp can not normal light, immediately alarm and display.
 6 Failing to light and check according to standard procedures.
 7 When the UV system fails, the warning light flashes and stops the conveyor belt operation.



parameter

 1 Housing material 1.5mm cold-rolled plate is bent and welded, and the housing is painted, wear-resistant, corrosion-resistant, durable, and the color is computer white.
 2 UV lamp: The imported British PRIMARC lamp is used, and the main lamp of the UV lamp is high-pressure mercury lamp 2KW 4 lamps, each lamp is illuminated on all sides, and each lamp tube can be individually controlled, with strong and weak light conversion function . They are 50% and 100% respectively, and the illumination angle and height of each lamp are adjustable
 3 UV lampshade It is made of aluminum and is integrally formed with professional reflective materials (German alanod reflector) to reflect ultraviolet light, which is durable and greatly improves the utilization rate of ultraviolet light (more than 38%).
 4 Width of conveyor network

480mm.


 5 Conveyor mesh belt: stainless steel mesh belt is used as the conveyor mesh belt, which is resistant to high temperature, ultraviolet light and stable transportation
 6 The height of the entrance: 10 cm-20 cm, adjustable.
 7 The height of the mesh belt from the ground 750mm-800mm.
 8 The temperature in the furnace 75°C.
 9 Speed 3~10m/min, stepless speed regulation.
 10 Cooling method the motor is forced to draw air and cool.
 11 Electrical part use Kyushu fan to dissipate heat (1.1kw fan, 1 exhaust 750mm fan, 1 intake) for good heat dissipation, adopt Taiwan Dongweiting TWT geared motor, contactor adopts Shilin brand, delay adopts CKC brand, The switch is produced by Izumi Corporation of Japan.
 12 Control panel:

UV lamp ammeter, lighting operation timer, over-temperature indicator, lighting completion indicator, power indicator, start switch, stop switch, UV light switch, strong and weak light switch.


 13 Safety devices leakage circuit breaker, over-temperature prevention, transmission motor overload protection, abnormal emergency switch, control line fuse... etc., in line with international safety standards.



FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
