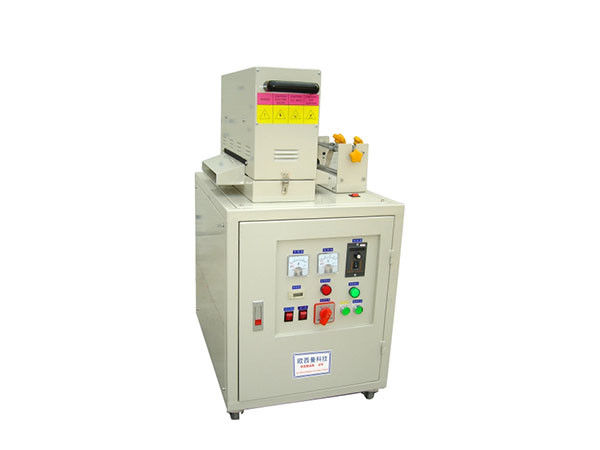

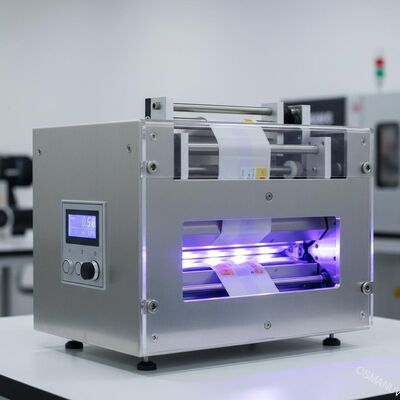

Self-adhesive label surface printing UV ink or varnish UV violet light irradiation curing machine

Self-adhesive label surface printing UV ink or varnish UV violet light irradiation curing machine

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UV-360K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Uv Curing System Warranty: 1 Year
Weight: 128kg Dimension: L:680mm X W:500mm X H:1000mm
Painting Width: ≤280mm Heat Dissipation: Air Cooling

Product Description

Self-adhesive label surface printing UV ink or varnish UV violet light irradiation curing machine



Description:



UV ink or varnish for self - adhesive label surface printing after UV violet light irradiation, instant drying is completed.

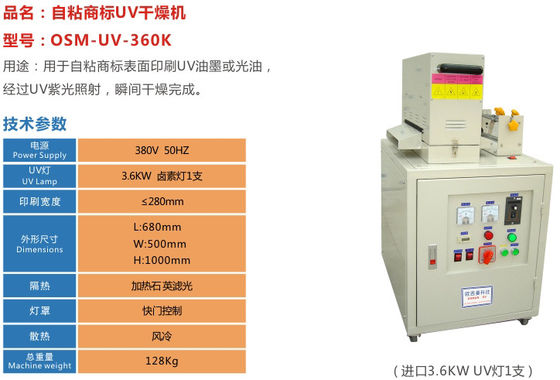

parameter

 1 Product name UV light curing machine.
 2 Model: OSM-UV-360K.
 3 Specifications:

680mm long × 500mm wide × 1000mm high

(can be customized according to actual needs).

 4 Material: The shell is made of S41 steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint.

 5 Lamp: One 3.6KW halogen lamp is used, and the height and angle of the lamp in the UV furnace can be adjusted.
 6 Conveyor belt: The mesh width is 280mm, and the black mesh belt is used, which has the characteristics of high temperature resistance, dust and rust prevention, and easy cleaning.

 7 Speed control system: adopts Taiwan Likun speed regulator, the speed can be adjusted for 1-10 meters, and the panel control is equipped with LED speed display.

 8 Cooling system: Air cooling.
  9 Electrical part: The contactor adopts the Chint brand, the delay adopts the CKC brand, the switch adopts the Japanese Izumi company, and the relay adopts the OMRON brand.
 10 Safety devices: leakage circuit breakers, abnormal emergency switches, control circuit fuses, transformers, motor overload protection devices, etc. comply with national safety standards.





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
