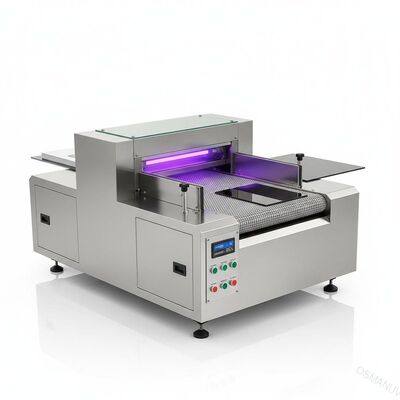

Stainless steel conveyor belt Uv Curing Machine Paper PVC Film, Acrylic And Other Plane Extended UV Curing Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-UV-502L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||

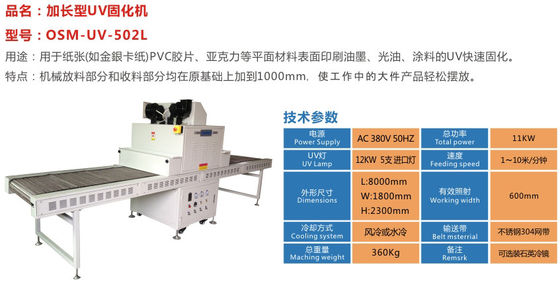

| Product Name: | Extended UV Curing Machine | Power Supply: | AC 380V 50HZ |
|---|---|---|---|
| Total Power: | 26KW | Feeding Speed: | 1-10 M/min |
| Working Width: | 600mm | Cooling System: | Air-cooling&water-cooling |
| Color: | Computer White | Maching Weight: | 360KG |
| Highlight: | stainless steel UV curing machine,UV curing machine for PVC film,extended UV curing machine for acrylic |
||
Product Description

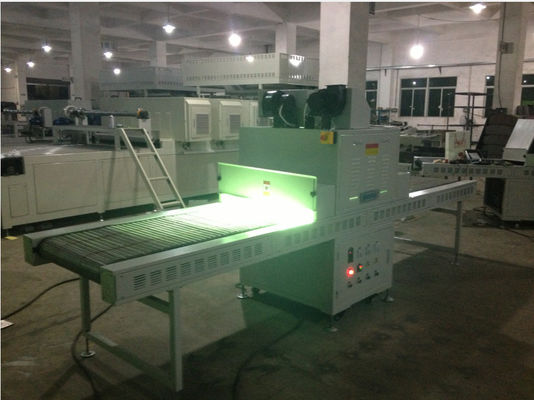

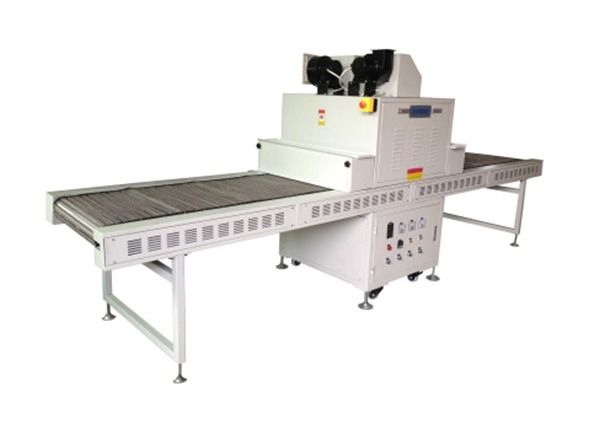

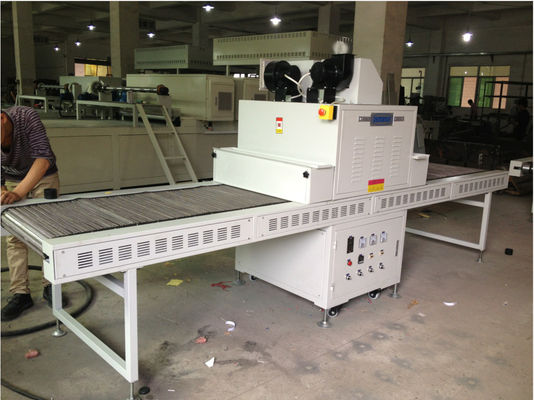

Stainless Steel Conveyor Belt UV Curing Machine for Paper, PVC Film, Acrylic and Other Flat Materials
This UV curing machine is designed for fast curing of printing ink, varnish, and coating on flat materials including paper (such as gold and silver card paper), PVC film, acrylic, and other planar surfaces.
Key Features
| 1 | Extended Feeding System: Mechanical feeding and receiving parts are extended by 1000mm from the original design, allowing easy placement of large products during operation. |
| 2 | Convenient Belt Design: The conveyor belt is optimized for easy use with pallets and mold attachment. |

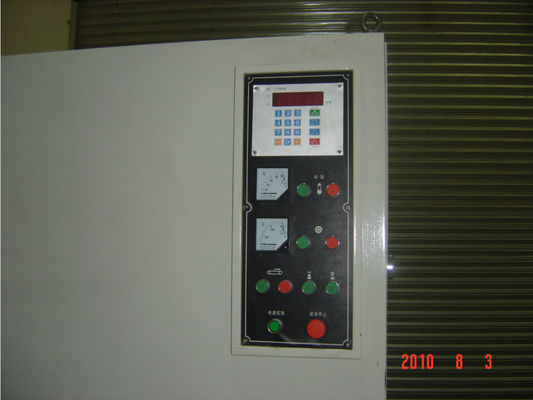

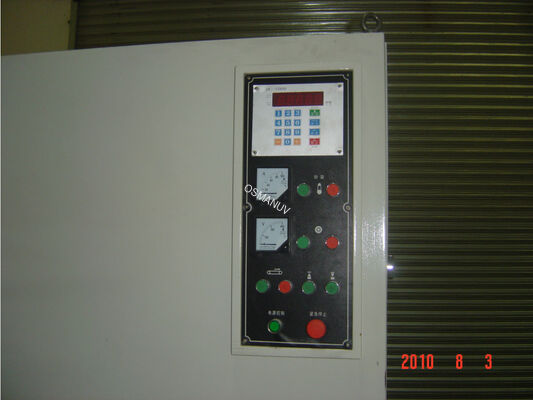

| 3 | Precision Speed Control: Speed is adjustable from 0-20 m/min using Taiwan Delta inverter for stepless speed regulation. |
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I verify your machine quality?
A: We provide sample testing on our machines with video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for export.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
