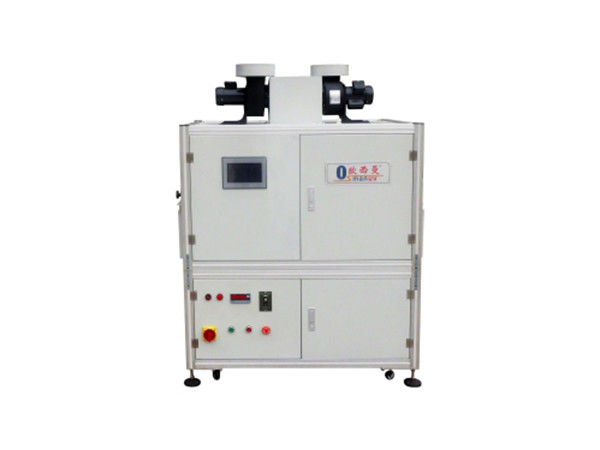

7KW 10m/Min Omron Relay UV Curing Machine For Circuit Boards

7KW 10m/Min Omron Relay UV Curing Machine For Circuit Boards
7KW 10m/Min Omron Relay UV Curing Machine For Circuit Boards Product Description This UV curing machine is designed for UV light curing applications including dispensing, gluing, bonding, and curing of circuit boards, precision electronic components, plastic small pieces, and UV adhesive products. ...
Place of Origin:CHINA
Brand Name:Osmanuv
Certification:ISO9001 And CE
Model Number:OSM-UV-300T
Minimum Order Quantity:1 Set
Price:Negotiable
Product Custom Attributes
Highlight

7KW UV Curing Machine

,

10m/Min UV Curing Machine

Product Name:
UV Curing Machine
Weight:
600KG
Dimension:
L:1500 Mm X W: 550 Mm X H: 1950 Mm
Working Width:
3000 Mm
Total Power:
7KW
Power Supply:
AC 380V 50HZ
Feeding Speed:
0-10m/min
Color:
Computer White
Product Description

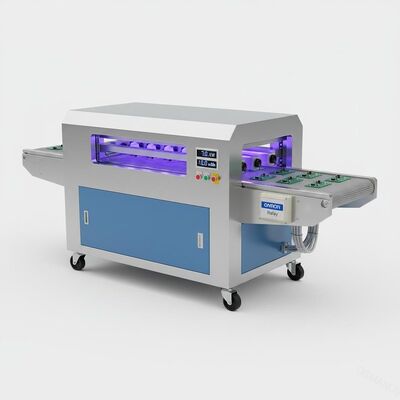

7KW 10m/Min Omron Relay UV Curing Machine For Circuit Boards
Product Description

This UV curing machine is designed for UV light curing applications including dispensing, gluing, bonding, and curing of circuit boards, precision electronic components, plastic small pieces, and UV adhesive products.

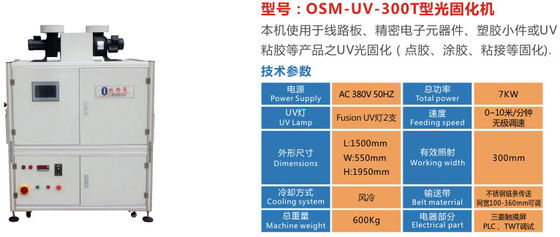

Technical Specifications
Parameter Specification
UV Lamp 2 UV lamp tubes installed on top of UV furnace, illuminating downward with adjustable height and angle
UV Lampshade Unique aluminum reflective material (German alanod reflector) for durability and improved UV light utilization (over 38%)
Conveying Net Width 300mm. Height of inlet and outlet: 130mm
Transmission Speed 1～10m/min, stepless speed regulation
Conveyor Belt Stainless steel mesh belt for transmission power, high temperature resistance, UV resistance and stable transportation
Housing Material 1.5 cold-rolled plates bent and welded, spray-baked housing for wear-resistant and corrosion-resistant performance
Cooling System Forced air cooling
Electrical Part Mitsubishi PLC program, CKC delay, OMRON relay, famous switch, CHNT contactor, leakage circuit breaker and other international safety standard components
Control Panel UV lamp ammeter, power indicator, power switch, UV lamp switch, time accumulator
Safety Devices Leakage circuit breakers, control circuit fuses, compliant with international safety standards
Warranty Information
One year warranty for the whole machine, half year for electrical parts, and 800-1000 hours warranty for UV lamp
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our products are manufactured according to GMP & ISO standards and have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
