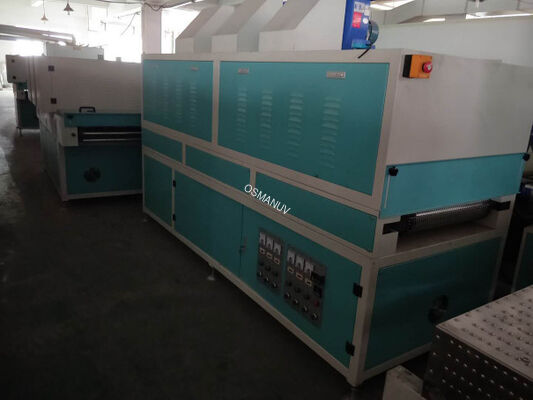

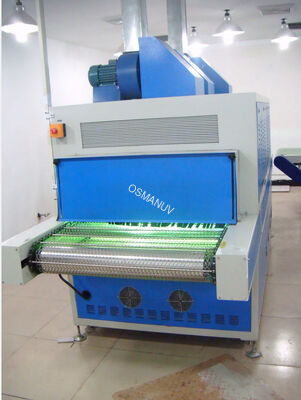

380V 50HZ Blue 55KW Uv Light Curing System Emergency Switches
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-UV-806T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | UV Curing Machine | Total Power: | 55KW |
|---|---|---|---|
| Dimension: | L:3000mm X W: 1050 X H: 1880 Mm | Color: | Computer White / Blue |
| UV Lamp: | Six 8KW Lamp | Weight: | 1680kg |
| Highlight: | 380V uv light curing system,55KW uv light curing system |
||
Product Description

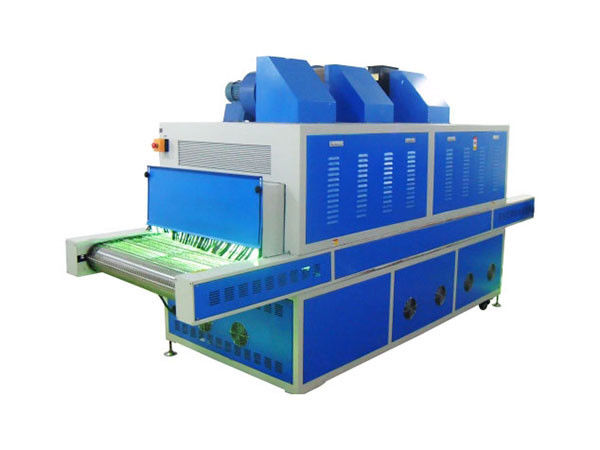

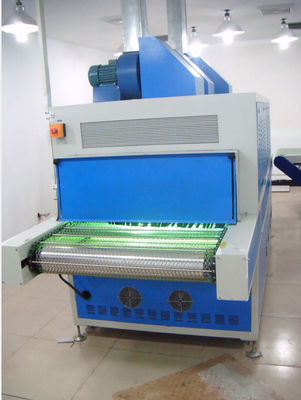

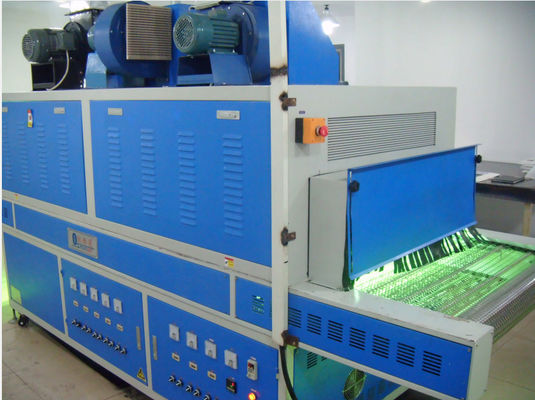

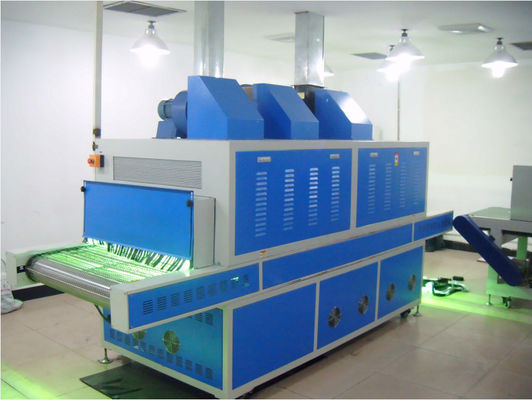

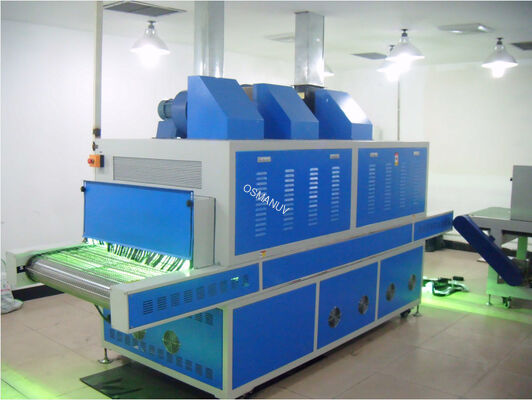

380V 50HZ Blue 55KW UV Light Curing System Emergency Switches
Product Overview
This UV light curing system efficiently cures UV coatings in minimal time through UV energy, offering energy-saving and environmentally friendly operation. The mechanized design significantly enhances production efficiency while remaining unaffected by external conditions. Widely used for drying and curing various materials including wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.

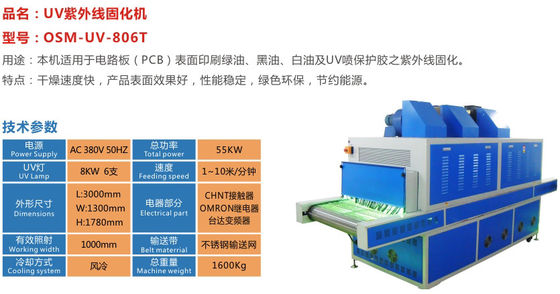

Technical Specifications
| 1 | Effective Processing Size | Diameter: 4-5mm |
| 2 | Power Supply Voltage | 380V 50HZ, three-phase five-wire system |
| 3 | Material Construction | 1.5mm thick cold-rolled plate outer shell with liquid paint surface treatment for wear and corrosion resistance. UV section features double-layer steel plate insulation to minimize cooling effect |
| 4 | Lamp System | 6 pieces British PRIMARC 5.6KW mercury lamps with adjustable height and angle in UV furnace, suitable for ring product UV curing |
| 5 | Reflector | Aluminum construction with integrally formed Alanod imported reflective lenses, increasing UV reflection efficiency by 38% |
| 6 | Transmission System | Stainless steel guide wheel transmission with high temperature and UV resistance. Controlled by 1HP motor, reducer, and Taiwan Delta frequency converter for smooth operation |
| 7 | Speed Control | Adjustable speed range: 10-50 meters per minute |
| 8 | Heat Dissipation | Forced air cooling with integrated light box design for sufficient heat dissipation and optimal performance |
| 9 | Light Source Control |
|
| 10 | Electrical Components | UV transformer, capacitor independent control electric box, OMRON relay, CHNT contactor, CKC delay timer, and Japan Izumi company switches - all compliant with CE standards |
| 11 | Safety Devices | Leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses - all comply with international safety standards |
| 12 | Working Height | 850-900mm adjustable (conveyor belt height from ground) |
| 13 | Conveying Direction | Left to right |
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I verify your machine quality?
A: We conduct sample trials on our machines and provide video documentation. Factory visits are welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for export.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
