1.5mm Thick 11.5KW Uv Curing Machine Inside Reflective Lenses

1.5mm Thick 11.5KW Uv Curing Machine Inside Reflective Lenses
1.5mm Thick 11.5KW UV Curing Machine with Reflective Lenses This industrial UV curing machine is designed for precision curing applications in electronics manufacturing, featuring advanced reflective lens technology and robust construction. Product Specifications 1 Purpose Suitable for LCD, LED and ...
Place of Origin:CHINA
Brand Name:Osmanuv
Certification:ISO9001 And CE

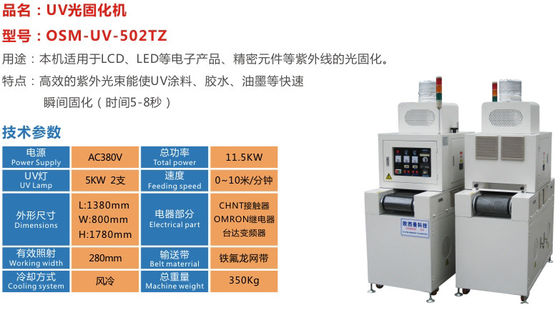

Model Number:OSM-UV-502TZ
Minimum Order Quantity:1 Set
Price:Negotiable
Product Custom Attributes
Highlight

1.5mm UV Curing Machine

,

11.5KW UV Curing Machine

Weight:
350KG
Dimension:
L:1380 Mm X W: 800 Mm X H: 1780 Mm
Total Power:
11.5KW
Feeding Speed:
0-10 M/min
Working:
280mm
Product Name:
UV Curing Machine
Product Description
1.5mm Thick 11.5KW UV Curing Machine with Reflective Lenses
This industrial UV curing machine is designed for precision curing applications in electronics manufacturing, featuring advanced reflective lens technology and robust construction.
Product Specifications
1 Purpose Suitable for LCD, LED and other electronic products, precision components and other ultraviolet light curing applications
2 Features Efficient UV beam can make UV paint, glue, ink and so on quickly and instantly solidify
3 Conveyor Belt High temperature resistant conveyor belt with easy cleaning characteristics
4 Transmission Motor tooth box transmission system
5 Material 1.5mm thick rolled plate shell with electrostatic powder baking cover surface treatment
6 Lamp System Two 5KW UV lamps with adjustable position, height and angle; guaranteed service life of 800-1000 hours
7 Cooling System 2 sets of Kyushu fans (0.75KW exhaust, 1.1KW intake) with quartz heat insulation; space temperature does not exceed 50°C

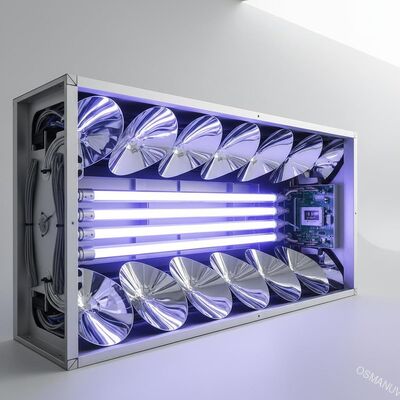

8 Reflector Aluminum construction with German Alanod imported reflective lenses; increases UV reflection efficiency by 38%
9 Control System Independent lamp group control, LCD recorder with reset capability; Chint contact, CKC timing, OMRON contact electrical, NIPPON timer and spring switch components
10 Safety Devices Leakage circuit breaker, emergency switch, phase sequence protection, transformer, motor overload protection, control circuit fuse; compliant with national safety standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing with video documentation, factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Fully compliant with GMP & ISO standards with CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
