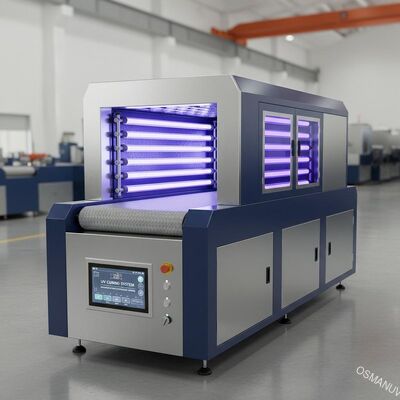

Lamp Tube Uv Curing Machine Uv Curing Machine Uv Curing Machine Large Quickly Effecyive Curing Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-UV-100HB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Uv Curing Machine | Total Power: | 45KW |
|---|---|---|---|
| Working Width: | 850mm | Warranty: | 1 Year |
| Dimensions: | L:3000mm W:1000mm H:1865mm | Weight: | 1600KG |
| Highlight: | UV curing machine lamp tube,large UV curing machine,quick effective UV curing |
||
Product Description

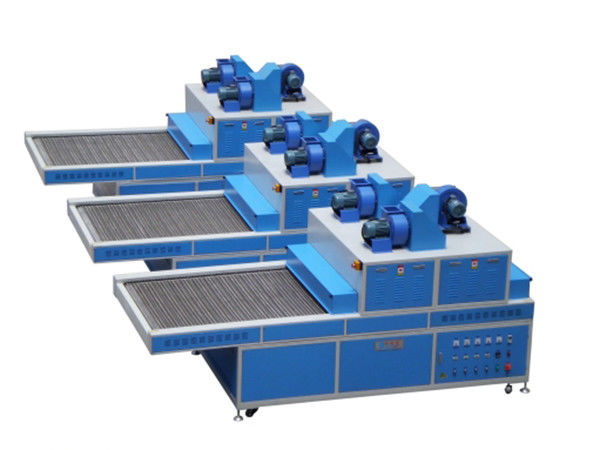

Lamp Tube UV Curing Machine - Large, Quick, Effective Curing Solution
Product Overview
This UV curing machine is designed for various industrial applications, featuring an extended front transport system that provides ample space for the painting process feeding section.
Technical Specifications
| Product Name | UV Light Curing Machine |
|---|---|
| Model | GX-UV-7502 |
| Specification | 3800mm long × 1380mm wide × 1780mm high |
| Material | Shell made of S41 steel plate (1.5mm thickness) with electrostatic powder paint surface treatment |
| Lamp Configuration | 4 pcs imported American WESTERN QUARTZ 8KW crop lamps and 2 pcs 5KW mercury lamps. Lamp tube height and angle are adjustable for various product curing requirements. |
| Conveyor Belt | US black conveyor belt with high temperature and UV resistance. Net width: 850mm. |
| Working Height | 200mm (inlet and outlet height adjustable from 20mm-200mm) |
| Transmission System | Enhanced 1.0HP Songling motor with stepless speed adjustment from 1 to 10 meters per minute. Panel control with LED speed display. |
| Cooling System | Forced air cooling with excellent heat dissipation |
| Reflector | Aluminum construction with imported alauod reflective lenses, increasing UV reflection efficiency by 38% |
| Control System | Independent control for each lamp group |
| Insulation | Double-layer steel plate insulation in UV section for effective cooling reduction |
| Electrical Components | OMRON relays, Chint contactors, CKC brand delays, Japanese company switches |
| Safety Devices | Leakage circuit breakers, emergency switches, motor overload protection, control circuit fuses - all compliant with international safety standards |
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production complies with GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
