• 45KW LCD Recorder 360deg Uv Curing Conveyor With Adjustable Lamp Tube
45KW LCD Recorder 360deg Uv Curing Conveyor With Adjustable Lamp Tube

45KW LCD Recorder 360deg Uv Curing Conveyor With Adjustable Lamp Tube

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UVLJ-8006A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 20 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Online UV Curing Equipment Warranty: 1 Year
Total Power: 45KW Working Width: 850mm
Weight: 1600KG Dimension: L:3000 Mm X W: 1000 X H: 1865 Mm
High Light:

45KW Uv Curing Conveyor


360deg Uv Curing Conveyor

Product Description

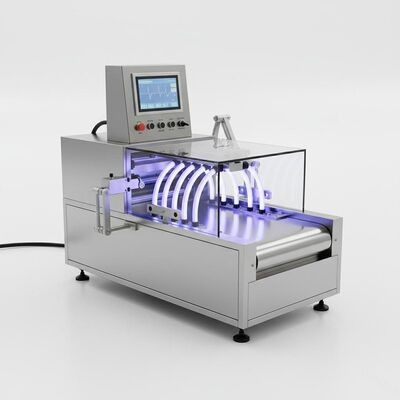

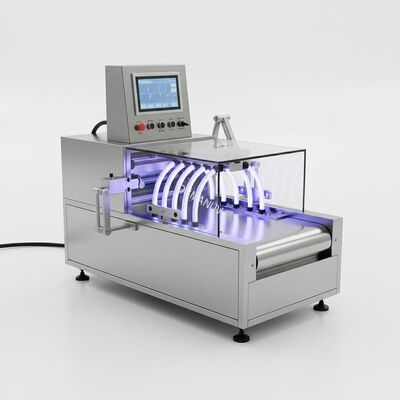

45KW LCD Recorder 360deg Uv Curing Conveyor With Adjustable Lamp Tube

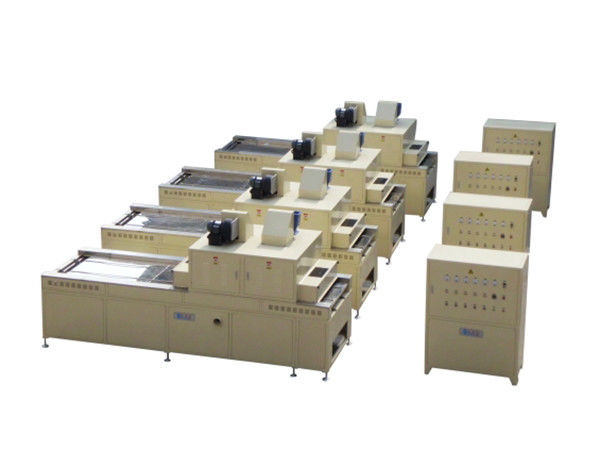

On-line UV curing equipment Model: OSM-UVLJ-8006A


This machine is suitable for UV paint, varnish and other surfaces of plastic parts after coating to complete rapid curing through ultraviolet rays.


This machine is used in conjunction with spraying machine and infrared leveling machine, with excellent performance. Realize 360°UV curing, and the product does not leave dead corners.



 1 Conveyor belt: conveyor belt is used, which has the characteristics of high temperature resistance and easy cleaning.
 2 Transmission part: use motor electric box
 3 Material: The shell is made of rolled plate, the thickness is 1.5mm, and the surface is treated with an electrostatic powder baking cover.
 4 Lamp tube

UV lamp tube is used.

The position, height and angle of the lamp tube in the UV furnace can be adjusted, and the service life is guaranteed for 800~1000 hours.

 5 Cooling system:

Kyushu fan is used to effectively dissipate heat.

Add quartz heat insulation under the lampshade to cool down, and the space temperature does not exceed 50°C

 6 Reflector It is made of aluminum and is integrally formed with German alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%
 7 Control system:

(1) Each group of lamps can be controlled independently.

(2) Each group of lamps can be equipped with LCD recorder when in use, and can be reset to zero for use.

(3) Electrical part: use Chint contact, CKC timing, OMRON contact electrical, NIPPON timer and spring switch, etc.

 8 Safety device:

leakage circuit breaker, abnormal emergency switch, phase sequence protection, transformer, motor overload protection, control circuit fuse, etc., in line with national safety standards.




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
