Quality 5m/Min 2.15KW Uv Led Spot Curing System With 1.5 Cold Rolled Plates factory
<
Quality 5m/Min 2.15KW Uv Led Spot Curing System With 1.5 Cold Rolled Plates factory
Quality 5m/Min 2.15KW Uv Led Spot Curing System With 1.5 Cold Rolled Plates factory
Quality 5m/Min 2.15KW Uv Led Spot Curing System With 1.5 Cold Rolled Plates factory
>

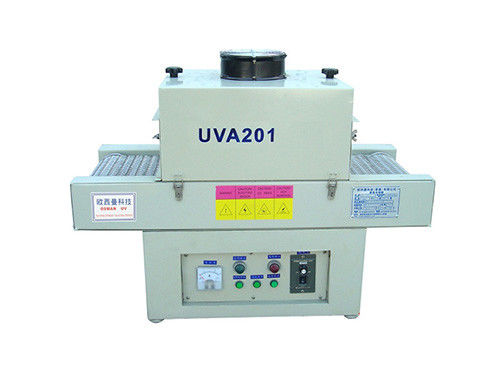

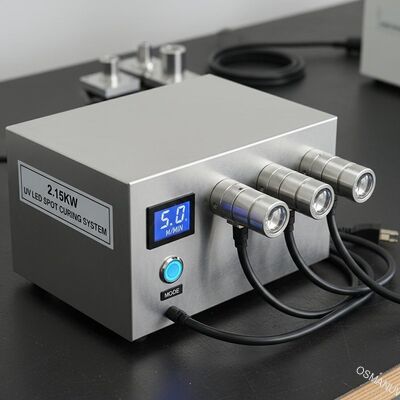

5m/Min 2.15KW Uv Led Spot Curing System With 1.5 Cold Rolled Plates

5m/Min 2.15KW Uv Led Spot Curing System With 1.5 Cold Rolled Plates
5m/Min 2.15KW UV LED Spot Curing System With 1.5 Cold Rolled Plates Product Overview High-performance UV LED spot curing system designed for industrial applications, featuring advanced cooling technology and durable construction with 1.5 cold-rolled plates. Technical Specifications UV Lamp 2KW UV ...
Place of Origin:CHINA
Brand Name:Osmanuv
Certification:ISO9001 And CE
Model Number:OSM-UVA201-T
Minimum Order Quantity:1 Set
Price:Negotiable
Product Custom Attributes
Highlight

2.15KW uv led spot curing system

,

5m/min uv led spot curing system

Product Name:
Uv Curing System
Weight:
60 KG
Warranty:
1 Year
Dimension:
L:1000 Mm X W: 380 X H: 800mm
Color:
Computer White
Feeding Speed:
0-5 M/min
Working Width:
400 Mm×200 Mm
Total Power:
2.15 KW
Product Description
5m/Min 2.15KW UV LED Spot Curing System With 1.5 Cold Rolled Plates
Product Overview

High-performance UV LED spot curing system designed for industrial applications, featuring advanced cooling technology and durable construction with 1.5 cold-rolled plates.

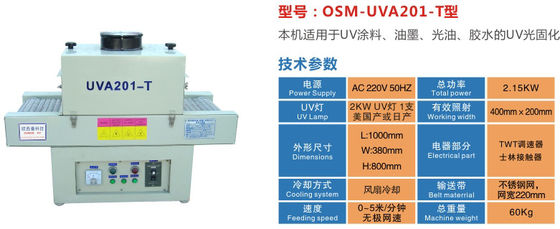

Technical Specifications
UV Lamp 2KW UV lamp tube installed on top of UV furnace, downward illumination with adjustable height and angle
UV Lampshade Unique aluminum reflective material (German Alanod reflector) for enhanced UV light utilization (over 38%), durable construction
Conveying Dimensions Net width: 300mm, Inlet/Outlet height: 130mm, Lampshade adjustable height: 80mm
Transmission Speed 1-10m/min with stepless speed regulation
Conveyor Belt Mesh belt transmission system, high temperature resistant, UV resistant, and stable conveying
Housing Material 1.5 cold-rolled plates bent and welded, spray-baked housing for wear-resistant and corrosion-resistant performance
Cooling System Forced air cooling
Electrical Components CKC delay, OMRON relay, CHNT contactor, leakage circuit breaker, and other internationally certified brand electrical appliances
Control Panel UV lamp ammeter, power indicator, power switch, UV lamp switch, time accumulator
Safety Devices Leakage circuit breakers, control circuit fuses, compliant with international safety standards
Warranty One year for whole machine, half year for electrical parts, 800-1000 hours warranty for UV lamp
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully compliant with GMP & ISO standards. Our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
