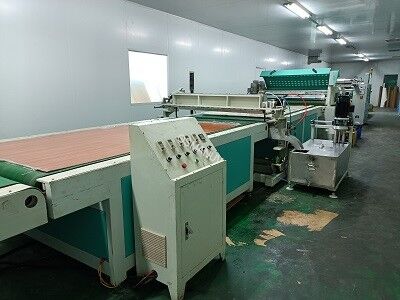

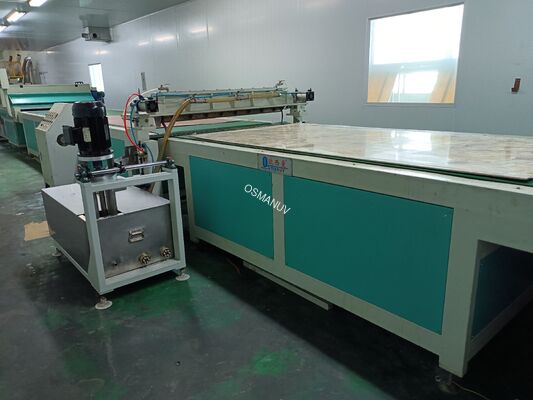

Fast Curing UV Curtain Coating Machine with Customizable Belt Speed and 1000mm Roller Width for High-Gloss Finishes

The Curtain Coater (also called curtain coating machine or 淋涂机) applies a uniform, continuous curtain of liquid coating onto flat substrates as they pass underneath. Unlike roller coaters, curtain coaters achieve a thicker, mirror-like film in a single pass, making them ideal for high-gloss decorative finishes on furniture panels, doors, and flooring.

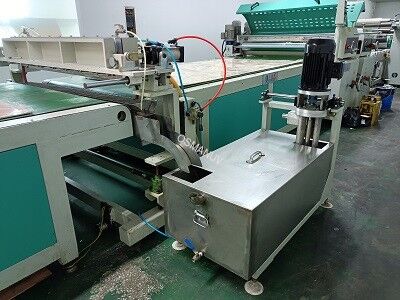

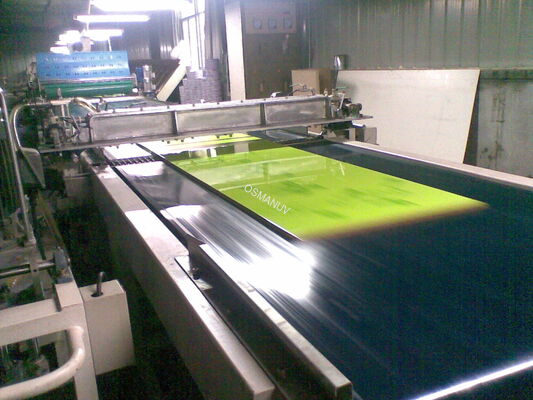

The coating is pumped into the inner cavity of the gravity head and flows down as an even, thin curtain. The substrates pass through at a constant speed, receiving a uniform coating layer.

The machine is fully customizable - coating thickness, conveyor width, belt speed, curing method, and multi-layer configuration can all be tailored to your specific production needs.

• Woodworking - Furniture panels, flat wooden doors, flooring, MDF, plywood (UV varnish, PU coating)
• Building materials - Ceramic wall/floor tiles, bamboo wood curtains
• Packaging - Cartons, paperboard (UV varnish for protective or decorative finish)
• Glass & metal - Decorative coatings on flat glass, metal sheets
• Customizable for: marble, plastic sheets, polymer composites, textile fabrics

All models support full customization:

• Coating head type - single-layer, dual-layer, or multi-layer (up to 3 layers in one pass)
• Conveyor width - from 620mm to 2600mm, customizable
• Conveyor belt material - resin, rubber, PU, or metal mesh for different substrates
• Coating thickness control - manual or closed-loop servo adjustment
• Drying/curing system - IR, hot air, UV, or combination - customizable zone length and temperature
• Material recovery - customized catch pan design for minimum waste
• Automation level - semi-automatic to fully automatic with AI-assisted control
• Safety compliance - CE, UL - customizable

• Mirror-like glossy finish - thick coating film with excellent decorative effect
• High precision transport - motor, reducer, and inverter for stable, flexible adjustment
• Solvent-resistant conveyor belt - easy to clean, durable resin material
• Coating recovery & recycling - reduces waste and raw material costs
• Multi-layer capability - apply bottom, absorbing, and top layers in one pass on uneven surfaces
• Quick curing - UV coatings solidify rapidly, efficient and green
• Touchscreen interface - programmable speed presets and recipe storage
• Safety interlocks - emergency stop, protective guards

• 12 - 24 months warranty (extendable based on model)
• Project consulting - feasibility analysis and process optimization
• Installation & commissioning - on-site or remote supervision
• Remote troubleshooting - via WhatsApp, Teams, TeamViewer
• Spare parts supply - stocked for 7+ years
• Operator training - included for industrial orders
• Customization engineering support - CAD drawings + PLC adjustment included

• Packing: Heavy-duty plywood crate + VCI anti-rust paper + stretch film
• Sensitive components (coating head, pumps) - individually wrapped with foam padding
• Shipping: FOB (Shanghai / Shenzhen / Qingdao) or CIF by sea, air, or rail
• Lead time: 20 - 50 days based on customization level
