Product Details:
|
| Coating Thickness: | 180g ~ 400g | Max Speed: | 1000 Sheets/h |
|---|---|---|---|
| Productname: | Pulp Molding Coating Machine | Drying: | UV Curing Or IR |
| Automation Level: | Semi-automatic To Fully Automatic | Dry Way: | IR Lamp |
| Materialcompatibility: | Pulp, Paper Pulp | Machinetype: | Coating Machine |
| Highlight: | 24-Station Spin Coating Line,Customizable Output Rotary Coating Machine,PLC Control Pulp Molding Coating Machine |
||

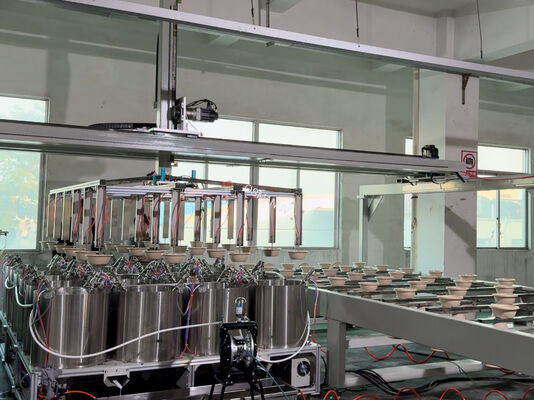

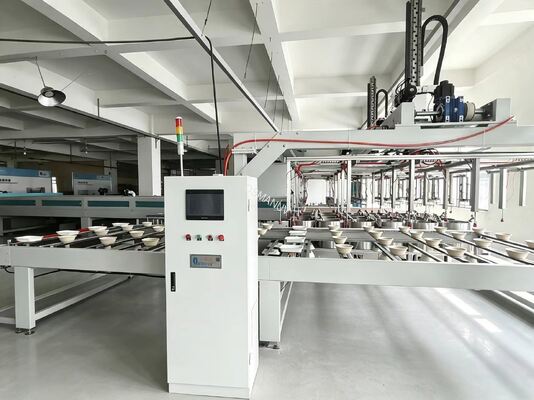

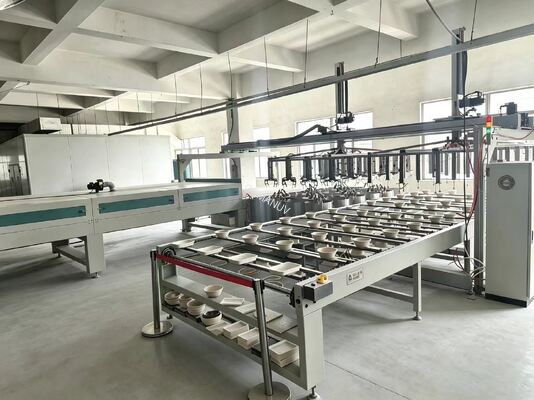

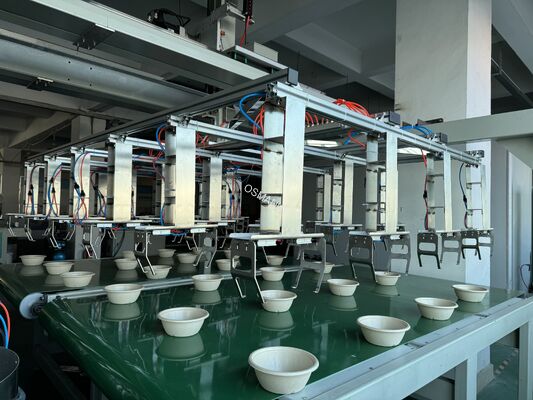

This customizable 24-station spin coating line is a high-precision, automated production system engineered for applying uniform functional coatings (water/oil barrier, bio-based, UV-curable) to 3D-shaped products such as pulp-molded tableware, food containers, and industrial packaging.
Available in rotary indexing, modular robotic, and integrated drying configurations. The system is fully customizable in number of stations, output speed, coating weight, fixture design, and drying profile.

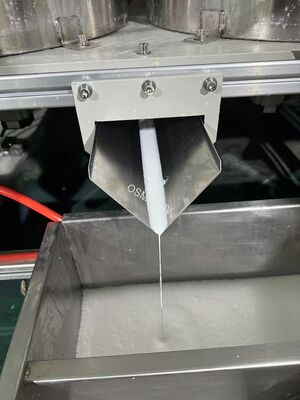

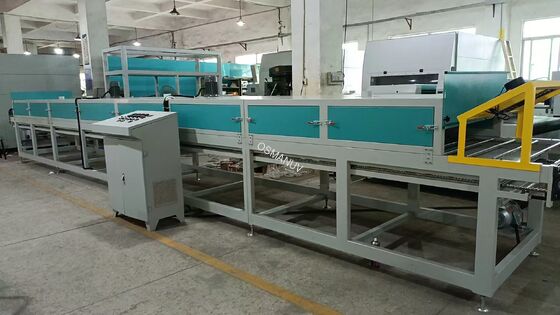

Working principle: Products are loaded onto custom fixtures on the rotary indexing table. At each spin station, precision dosing pumps dispense coating material onto the product, followed by high-speed spinning (centrifugal force) to evenly spread the coating across complex interior geometries, including corners and sidewalls. The coated products then pass through multi-stage drying tunnels (IR pre-dry + hot air curing + cooling) to achieve a pinhole-free, uniform barrier film with minimal material waste and >90% transfer efficiency.
| Parameter | Rotary Indexing Model | Robotic Workcell Model | Integrated Drying Model |
|---|---|---|---|
| Number of stations (customizable) | 12–24 stations (rotary) | 24–48 modules (expandable) | 24 stations |
| Production capacity (customizable) | 15–35 cycles/min (360–840 pcs/hr) | 8–15 sec/part (500–5,000 pcs/day) | Up to 1,200 pcs/hr |
| Max product size (customizable) | Up to 300 mm diameter | 350 × 350 × 200 mm | Up to 300 mm diameter |
| Coating weight control (customizable) | 5–25 gsm (dry) / 0.1–5 g/piece | 0.1–10 ml/programmable | Adjustable |
| Coating thickness uniformity | >95% | >95% | >95% |
| Spin speed (customizable) | Adjustable | 50–2,500 rpm (independent) | Adjustable |
| Coating method | Precision metering pump + spin | Precision spray + spin | Precision metering pump + spin |
| Drying method (customizable) | IR pre-dry + hot air tunnel | IR + convection towers (mix) | Multi-stage IR + hot air |
| Heating source (customizable) | Electric / Gas / Steam | Electric | Electric / Gas |
| Control system | Mitsubishi PLC + HMI | PLC + OPC UA / EtherNet/IP | PLC + HMI touchscreen |
| Power supply (customizable) | 380V, 50Hz, 3-phase | 380V, 50Hz, 3-phase | 380V, 50Hz, 3-phase |
| Power consumption | 80–160 kW peak | ~30 kW + robot | 80–120 kW peak |
| Compressed air | 0.6–0.8 MPa, clean & dry | 0.5–0.7 MPa | 0.6–0.8 MPa |
| Material construction | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Typical application | Pulp molding tableware (plates, bowls, trays) | High-mix production, multi-layer coating | Mass production food packaging |
This 24-station spin coating line is highly customizable to meet your specific production requirements:
Spin coating uses centrifugal force to create an extremely uniform, thin film that perfectly conforms to complex interior geometries. It ensures seamless coverage in corners and sidewalls where traditional spray might miss, resulting in superior barrier properties with more precise coating weight control. Additionally, spin coating achieves >90% material transfer efficiency, while spray typically wastes 30–50% as overspray.
Yes. The key is the customizable fixture design. We design and machine dedicated nesting tools for each product geometry. Changeover between products involves swapping the fixtures and loading a different recipe from the PLC, which can be done in minutes.
The system is compatible with a wide range of functional coatings, including water-based acrylics, PFAS-free oil-barrier coatings, bio-polymer films (PLA, PHA), UV-curable coatings, and anti-static agents. The fluid path components can be customized to handle specific material viscosities and chemistries.
