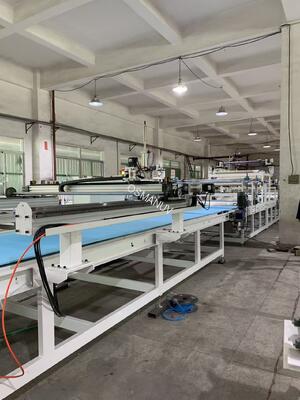

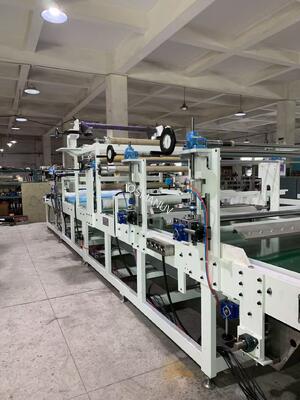

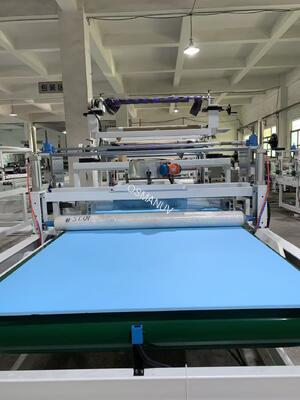

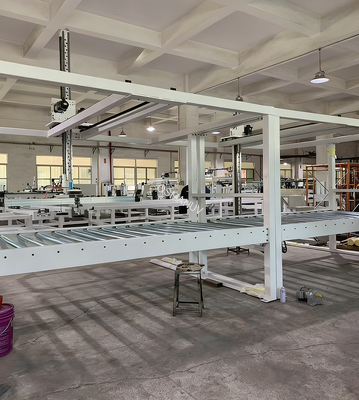

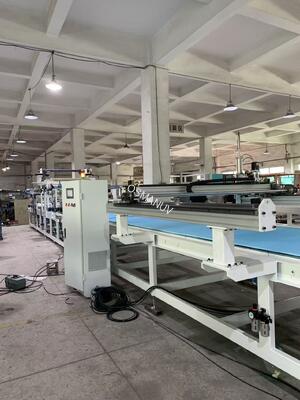

Quality High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm) factory
<
Quality High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm) factory
Quality High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm) factory
Quality High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm) factory
Quality High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm) factory
Quality High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm) factory
>

High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm)

High-Precision Knife-Over-Roll Coating Line for XPS Boards with Customizable Width (600-2400mm) and Coating Thickness (±0.05mm)
High-Precision Knife-Over-Roll Coating Line for XPS Board Surface Leveling This customizable XPS board knife coating line is specifically engineered for applying uniform, precise layers of cementitious mortars, polymer-modified coatings, acrylic renders, primers, or adhesives onto XPS (extruded ...
Place of Origin:CHINA
Brand Name:OSMANUV
Certification:ISO9001
Model Number:OSMANUV
Minimum Order Quantity:1 SET
Price:Negotiation
Product Custom Attributes
Highlight

Customizable Width Knife-Over-Roll Coating Line

,

High-Precision Coating Thickness XPS Board Coating Machine

,

Knife-Over-Roll Method UV Coating Machine

Coveyor Power:
0.75kw Or 1.5kw
Controlsystem:
PLC Touch Screen
Machine Name:
Smart Home UV Coating Machine Line
Coating Durability:
High Durability
Electric Box:
Independent Electric Box
Total Power:
37 Kw
Coating Material:
Various Materials
Electric Roller:
164mm*1450mm
Product Description
High-Precision Knife-Over-Roll Coating Line for XPS Board Surface Leveling
This customizable XPS board knife coating line is specifically engineered for applying uniform, precise layers of cementitious mortars, polymer-modified coatings, acrylic renders, primers, or adhesives onto XPS (extruded polystyrene) rigid foam boards. Available in high-precision leveling, stucco-ready mortar, and industrial continuous production configurations.
Unlike spray or roller coating, the knife-over-roll method achieves >95% transfer efficiency with minimal material waste, eliminating overspray—this is especially critical for XPS substrates, which are sensitive to solvent attack. Excess high-viscosity coating is recirculated back to the supply tank, delivering 35-45% material savings compared to spraying.
The system is fully customizable in coating width, thickness range, blade type, board thickness accommodation (3-200mm), and XPS density handling (25-50kg/m³).
Working principle: XPS boards are fed through a precision backing roller, where a doctor blade (comma blade or straight scraper) applies a controlled wet coating layer. The coated boards then pass through a low-temperature drying tunnel (≤60°C to prevent foam deformation), followed by cooling and stacking. The system effectively fills surface pores, hides foam texture, and creates a smooth base for exterior insulation finishing systems (EIFS), decorative renders, or protective layers.
Technical Parameters
Parameter High-Precision Leveling Model Stucco-Ready Mortar Model Industrial Continuous Model
Max board width (customizable) 600 - 1200 mm 600 - 2400 mm 600 - 2400 mm
Board length (customizable) Unlimited (continuous) 800 - 3000 mm Unlimited (continuous)
Board thickness range (customizable) 3 - 80 mm 10 - 120 mm 10 - 200 mm
Coating method Knife-over-roll (doctor blade) Knife-over-roll Knife-over-roll
Wet coating thickness (customizable) 0.5 - 10 mm (±0.1mm) 0.3 - 5.0 mm (±0.05mm) 0.5 - 10 mm (±0.1mm)
Coating uniformity ±3% across full width ±3% across full width ±3% across full width
Coating speed (customizable) 1 - 20 m/min 2 - 30 m/min 2 - 30 m/min
Material transfer efficiency 95% - 98% 95% - 98% 95% - 98%
Coating viscosity range 100 - 100,000 cP 2000 - 25,000 cP 100 - 100,000 cP
Blade type (customizable) Hardened steel / Tungsten carbide Round-edge / Straight bevel Hardened steel / Tungsten carbide
Backing roller material (customizable) Rubber-coated / PU Silicone (soft) / EPDM (hard) Silicone / EPDM
Drying method (customizable) Hot air / IR (≤60°C) IR + low-temp air (≤55°C) Hot air / IR multi-zone
Control system PLC + HMI touchscreen PLC + HMI touchscreen PLC + HMI touchscreen
Power supply (customizable) 380V/415V, 50/60Hz, 3-phase 380V, 50/60Hz, 3-phase 380V/415V, 50/60Hz, 3-phase
Typical application Primer, smooth leveling coat EIFS base coat, anti-skid coating Large-scale building panels
Applications
  • Exterior wall insulation (EIFS): Base coat adhesive mortar onto XPS insulation boards for external facade systems
  • Anti-skid walkable surfaces: Roof insulation, parking decks requiring slip-resistant coatings
  • Fire-retardant intumescent layer: Building code compliance coatings
  • Decorative panels: Colored acrylic renders, faux wood/stone pattern bases
  • Underfloor heating boards: Leveling coat for flooring underlayment
  • Adhesion promoter primer: For cementitious renders and tile adhesives
  • Moisture barrier & UV protection: Temporary or exposed storage coatings
Customization Options
This XPS board coating line is highly customizable to meet your specific production requirements:
  • Coating width: From 600mm up to 2400mm - fully customizable blade and tooling
  • XPS board size: Thickness 3-200mm, length unlimited - customizable roller gap and conveyor support
  • Coating thickness range: 0.2mm to 15mm wet films - customizable blade gap mechanism
  • Blade type: Flexible steel blade, rigid square-edge blade, carbide-tipped wear-resistant blade, or adjustable two-blade scraper system
  • Blade gap control: Manual micrometer, servo-driven, or pneumatic floating mode (for warped or soft boards)
  • Backing roller hardness: Softer silicone roller for low-density XPS (25kg/m³) to prevent crushing; harder EPDM for high-density boards
  • Coating type compatibility: Cementitious, polymer, gypsum, acrylic, epoxy, PU, or sand-filled/fiber-reinforced formulations
  • Surface pre-treatment: Flame, corona, or plasma module to improve coating adhesion on low-surface-energy XPS
  • Drying profile: Customizable low-temp IR + ambient zoning (no foam deformation)
  • Single-side vs. double-side coating: Inline flip station or dual-head configuration
  • Edge masking: For leaving dry adhesive edge for thermal break
  • Automation level: Manual feed to fully automated XPS stack-to-stack line
  • Integration: Customizable connection with upstream XPS extrusion lines or downstream cutting/packaging equipment
Key Features
  • High material efficiency: Up to 45% material saving vs. spray or roller - no overspray, scraped excess recirculated >95%
  • Gentle on XPS surface: Soft backing roller protects foam; knife blade only contacts coating paste, preventing crushing or solvent attack
  • Precise thickness control: Micrometer-controlled blade gap enables high-precision coating with ±0.05-0.1mm tolerance
  • Handles sand-filled & fiber-reinforced coatings: Carbide blade + open-gear or screw pump - no clogging
  • No atomization: Zero VOC mist, cleaner working environment, lower environmental compliance burden
  • Quick blade change: <5 minutes for different coating profiles
  • Accommodates warped boards: Floating blade design adapts to slightly uneven XPS surfaces
  • Low drying cost: Thin, controlled layer cures faster than thick spray coats - reduced energy consumption
  • Robust construction: Heavy-duty steel frame, corrosion-resistant surfaces for 24/7 operation
  • PLC control with recipe storage: One-touch settings for different coating types; data logging and remote diagnostics capability
Support and Services
  • Free process consultation - send your XPS boards and coating material for trial coating
  • Custom layout design for your production floor
  • On-site installation and commissioning (customizable support packages)
  • Operator training program included
  • Remote troubleshooting via video call, IoT monitoring, or network central controller
  • 18-month warranty on main machine, 12-month on electrical parts
  • Spare parts availability from regional warehouses
  • Lifetime technical support via phone, email, or chat
Packing and Shipping
  • Packing: Anti-rust film + reinforced wooden case for main body and control cabinet; foam padding for fragile components
  • Standard model lead time: 30-40 days after order confirmation
  • Custom configuration lead time: 30-60 days (longer for custom widths or dual-head configurations)
  • Shipping: FOB Shanghai / CIF by sea, air, or rail
  • Customizable: Export crating, custom labeling, destination port documentation
Frequently Asked Questions
Q1: How much material can I save compared to spraying plaster onto XPS?
A: Typically 35-45% for medium-viscosity plasters. Spraying wastes 30-50% as overspray + bounce-back from rigid foam. Knife coating recirculates >95% of excess. We provide a customizable free test with your XPS and coating before order.
Q2: Will the knife coater crush or deform soft XPS boards (e.g., 25kg/m³)?
A: No. The backing roller is customizable (soft silicone) and the blade gap can be set to a floating mode. Nip pressure is adjustable. For very soft boards, we add a rigid backplate support.
Q3: My coating contains sand or short fibers. Can the machine handle that?
A: Yes. We use a customizable carbide blade (wear-resistant) and an open-gear or screw pump (not a close-tolerance gear pump). Filters are coarser or removable. Recovery trough has a screen to separate large particles before recirculation.
