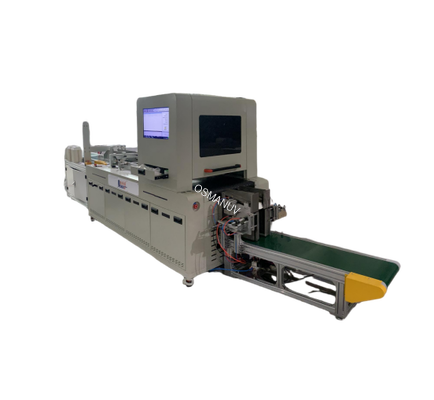

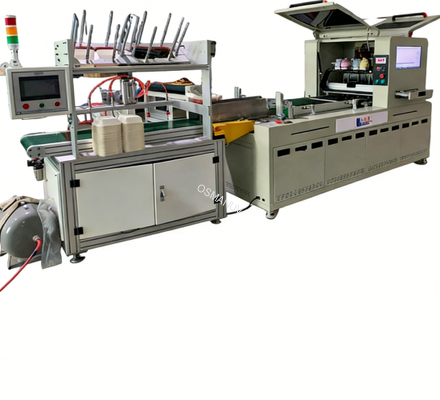

Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing

Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing
Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing

Large Image :  Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSMANUV
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Single Pass Inkjet Printer with Customizable Print Height (0-30cm) Multi-Head Configuration for High-Speed Roll-to-Roll Printing

Description
Coolingsystem: Water Cooling Acceptable Thickness: 0.10~0.6 Mm
Uv Lamp Power: 6/8/9.7kw Coatingspeed: 0-30 M/min
Sheet Thickness: 80 - 600 Gsm Head Qty: Two/three/four
Die Head: Adjustable Speed: 6000pcs/h
Highlight:

Customizable Print Height Single Pass Inkjet Printer

,

Multi-Head Configuration One Pass Digital Printer

,

High-Speed Roll-to-Roll Industrial Inkjet Printer

Single Pass Carton Inkjet Printer for Corrugated Box & Kraft Paper Bag – Customizable Print Height (0-30cm) & Multi-Head Configuration
Product Overview
This customizable One Pass (Single Pass) digital printer utilizes a fixed printhead array spanning the full media width to complete full-color printing in a single pass as the material moves beneath it. Available in high-speed roll-to-roll, carton packaging, and modular integration configurations.
In a Single Pass system, the printhead carriage remains fixed and completes the image printing in a single pass while the print material is conveyed underneath. This is fundamentally different from scan printing, where the printhead carriage reciprocates laterally, making multiple passes to complete the image. Scan printers typically achieve speeds up to 2 m/min, whereas Single Pass printers can reach speeds of over 50 m/min.
The system is fully customizable in print width, printhead count and model, print speed, ink type, and curing method. One Pass technology is increasingly adopted in industrial printing applications where high productivity is required, including packaging, textiles, labels, and commercial printing.
Working principle: The printheads (thermal or piezoelectric) eject ink droplets onto the moving substrate as it passes beneath the fixed print bar. With multiple printhead modules arranged across the entire web width, full coverage is achieved in one pass. A distance measuring sensor can detect the thickness of the printing material, enabling automatic printhead height adjustment for optimal print quality.
Technical Specifications
Parameter High-Speed Roll-to-Roll Model Carton Packaging Model Modular Integration Engine
Max print width (customizable) Up to 2600 mm Up to 1260 mm (depending on head count) Customizable
Print speed (customizable) Up to 100 m/min 20 - 40 m/min Up to 40 m/min
Print resolution (customizable) Up to 1200 × 2400 dpi 1200 × 300 - 1200 × 1200 dpi Customizable
Printhead technology (customizable) Piezoelectric (Epson/Ricoh) / Thermal (HP) Thermal / Piezoelectric Piezoelectric / Thermal
Number of printheads (customizable) Up to 384 heads 1 - 6 heads (A4/A3 width) 1 - 64 heads
Ink types (customizable) Reactive / Acid / Pigment / High-temp Disperse Water-based pigment / Dye ink Water-based / UV / Custom
Ink colors (customizable) 4 - 8 colors CMYK (4-color) Customizable
Curing method (customizable) Steam / Natural Gas / Thermal oil UV LED / Hot air UV LED / Hot air
Max media thickness (customizable) 50 - 340 g/m² fabric 0.1 - 20 mm Customizable
Print height (customizable) Standard 0 - 30 cm (customizable) Standard
Control system PLC + HMI touchscreen Software + Touchscreen PLC + HMI
Power supply (customizable) 380V, 50/60Hz 220V/110V, 50/60Hz 220V/380V
Applications
  • Textile & fabric printing: Cotton, linen, silk, nylon, polyester, blends, elastic fabrics - reactive, acid, pigment, and disperse inks
  • Packaging & carton: Corrugated boxes, kraft paper bags, folding cartons, microflute, paper bags, tote bags
  • Label & tag printing: Self-adhesive labels, barcodes, variable QR codes, ribbons
  • Commercial & promotional: Shopping bags, cloth tape, canvas frames, posters, backlit displays
  • Industrial products: PCB printing, bottle caps, commemorative coins, phone shells
  • Furniture & ceramics: Floor coverings, laminates, ceramic tiles, countertops
  • Specialty: Food-safe packaging with water-based inks, UV printing on plastics and metals
Customization Options
This One Pass printer is highly customizable to meet your specific production requirements:
  • Print width: From A4 (21cm) to 2600mm+ - fully customizable
  • Printhead count: 1 to 384+ heads, supporting Epson (I3200, 4720, W5113, etc.), Ricoh (G5I), and HP industrial heads - customizable
  • Print speed: 10 to 100 m/min - customizable based on production volume
  • Ink type: Water-based pigment, dye, reactive, acid, disperse, UV-curable - customizable
  • Color configuration: CMYK, CMYK+White, CMYK+White+Varnish, up to 8 colors - customizable
  • Curing/drying system: UV LED, hot air, IR, steam, natural gas, thermal oil - customizable
  • Media handling: Roll-to-roll, sheet-fed, vacuum belt conveyor - customizable
  • Post-processing integration: Hot stamping, die-cutting, waste removal, finished product cleaning - customizable for one-pass finished product output
  • Printhead height: Automatic height adjustment based on media thickness detection - customizable
  • Pre-treatment: Corona/plasma treatment, brush cleaning, adhesive roller - customizable
  • Software & integration: RIP compatibility (Maintop, Photoprint, Ultraprint, ONYX, Wasatch) - customizable
Key Features
  • Ultra-high speed: One-pass printing eliminates reciprocating carriage movement - speeds up to 100 m/min, 20-50× faster than scan printers
  • Fixed printhead array: Printheads span the full media width, completing printing in a single pass - ideal for continuous production lines
  • Unlimited substrate compatibility: Handles textile, paper, cardboard, corrugated, plastic, metal, wood, glass - with appropriate ink selection
  • No plate making: Digital workflow eliminates plate costs and setup time - perfect for short runs and on-demand printing
  • High precision positioning: Grating sensors on conveyor belt and transverse belt provide non-contact measurement for precise substrate and head positioning
  • Automatic height measurement: Distance sensor detects substrate thickness and optimizes printhead position for consistent print quality
  • Integrated post-processing: Hot stamping, die-cutting, and waste removal in a single pass - reducing handling steps and improving efficiency
  • Modular architecture: Expandable and retrofittable - add more heads, colors, or curing units as production grows
  • Inline integration capability: Can be integrated into existing production lines with pre- and post-processes - corona treatment, cleaning, QR coding
  • Food-safe options: Water-based inks with GREENGUARD certification for food packaging applications
Support and Services
  • Free process consultation - send your substrate for test printing
  • Custom layout design for your production floor
  • On-site installation and commissioning (customizable support packages)
  • Operator training program included
  • Remote troubleshooting via video call or cloud monitoring
  • 12-month warranty on mechanical components (consumables: printheads excluded; typical printhead life ~200 million cycles / 3-6 months)
  • Spare parts availability from regional warehouses
  • Lifetime technical support via phone, email, or chat
  • Custom firmware and software development available
Packing and Shipping
  • Packing: Anti-rust film + reinforced wooden case (with foam padding for sensitive components - printheads, control panel)
  • Standard model lead time: 15-25 days after order confirmation
  • Custom configuration lead time: 30-60 days (longer for custom print widths or multi-head configurations)
  • Shipping: FOB Shanghai / CIF by sea, air, or rail
  • Customizable: Export crating, custom labeling, destination port documentation
Frequently Asked Questions
Q1: What is the difference between a One Pass printer and a regular (scan) printer?
A: A scan printer uses a moving carriage that shuttles back and forth across the media, making multiple passes to complete the image - speeds typically up to 2 m/min. A One Pass printer has a fixed printhead array spanning the full media width; the material moves continuously beneath it, and printing is completed in a single pass - speeds can exceed 50 m/min, making it suitable for industrial production lines.
Q2: What types of printheads are supported?
A: The system supports piezoelectric printheads (Epson I3200, 4720, W5113, 7610, TX800, XP600, DX5, DX7, TX600; Ricoh G5I) and thermal inkjet printheads (HP industrial heads). Printhead count is customizable from 1 to 64+ heads.
Q3: What substrates can this One Pass printer handle?
A: The printer supports a wide range of substrates: textiles (cotton, silk, nylon, polyester, blends), paper and cardboard (corrugated board, kraft paper bags, folding cartons, microflute), plastics (food containers, bottle caps, phone shells), and rigid materials (wood, metal, ceramic tiles, glass). Substrate compatibility depends on ink selection.
