High-Speed Industrial Curtain Coater with Customizable Coating Width (Up to 2200mm) and Non-Contact Coating Technology

This customizable curtain coater uses a free-falling liquid curtain to apply uniform coating layers onto flat or slightly profiled substrates in a non-contact, high-speed continuous process. Available in industrial high-speed, laboratory R&D, and multi-layer premium finish configurations.

Unlike roller or spray coating, curtain coating is a pre-metered, non-impact process that delivers excellent coverage at lower coat weights without scratching or film-splitting defects. It achieves speeds up to 60-100 m/min and coat thickness variations within ±0.5% of target value.

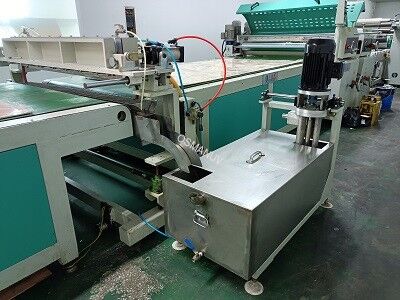

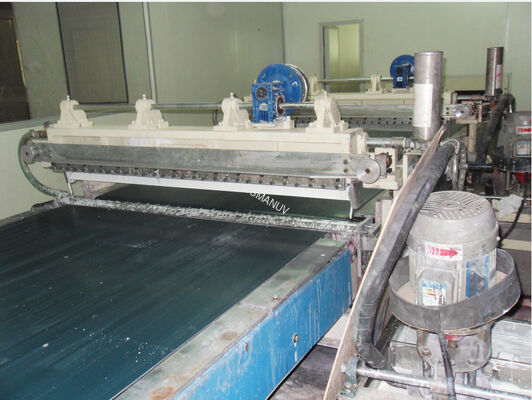

Working principle: Coating material is pumped to the curtain head and forms a continuous falling curtain between adjustable knives. The substrate passes beneath at controlled speed, transferring liquid film uniformly. With recovery system, excess coating is recirculated, achieving ≥95% material efficiency.

• Furniture industry: Flat cabinet doors, tabletops, wardrobes, shelves - UV topcoat, primer, sealer
• Flooring: Parquet, laminate, LVT, wood flooring - wear layers, anti-scratch coatings
• Building materials: MDF panels, particleboard, plywood, cement board, gypsum board
• Packaging: Paperboard, folding carton, barrier coatings
• Flexible films & paper: BOPP, PET, PE, paper - primer, adhesive, functional coatings
• Industrial parts: Metal sheets, plastic panels, glass - functional coatings
• Automotive & transport: Interior trim, decorative surfaces
• Textile & leather: Fabric finishing, leather coating

This curtain coating machine is highly customizable to meet your specific production requirements:

• Coating width: From 300mm (narrow web) to 2200mm+ (large panels)
• Curtain head type: Gravity head (low maintenance) or Pressure head (high precision, high speed)
• Number of heads: Single-head, twin-head, or cascade (multi-layer) configurations
• Coating material compatibility: Water-based, solvent-based, UV-curable, PU, acrylic, epoxy
• Curing system: UV LED, IR lamps, hot air drying, or hybrid combination
• Conveyor type: PVC belt (for panels) or mesh belt (for airflow drying)
• Heating system: Electric, thermal oil, or steam for coating tank and head
• Viscosity control: Manual or fully automatic with online viscometer
• Integration: Customizable connection with upstream/downstream equipment
• Explosion-proof design: For solvent-based coatings
• Cleanroom version: For optical films and medical applications
• Voltage: 220V/380V/400V/415V - customizable to local electrical standards

• Non-contact coating: No physical contact with substrate - eliminates streaks, scratches, and roller marks
• Excellent uniformity: Achieves ±1-3 µm thickness precision; variation within ±0.5% of target
• High-speed production: Speeds up to 100 m/min or more
• Multi-layer capability: Apply two or more functional layers in single pass with cascade heads
• Pre-metered application: Exact coating amount calculated before processing - minimizes waste
• High material efficiency: Recovery system returns excess coating - ≥95% material utilization
• Versatile material compatibility: Works with UV, water-based, PU, acrylic, epoxy, and solvent-based coatings
• Wide substrate range: Wood, MDF, glass, metal, plastic, cork, leather, paper
• Quick cleaning: Slotted die removable without tools (optional quick-release)
• Low maintenance: No spray nozzles to clog; simple design with easy access
• Energy-efficient drying: Zone-separated IR or LED lamps reduce energy consumption
• PLC control with recipe storage: One-touch settings for different products; data logging capability

• Free process consultation - send your substrate and coating material for trial coating
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included (on-site or video)
• Remote troubleshooting via video call, IoT monitoring, or online support
• 12-month warranty on mechanical components (consumables excluded)
• Spare parts availability from regional warehouses
• Preventive maintenance service contracts available
• Lifetime technical support via phone, email, or chat

• Packing: Anti-rust film + reinforced wooden case with desiccant and foam padding
• Standard model lead time: 30-45 days after order confirmation
• Custom configuration lead time: 45-60 days (longer for custom widths or multi-head configurations)
• Shipping: FOB Shanghai / CIF by sea, air, or rail
• Customizable: Export crating, custom labeling, destination port documentation
