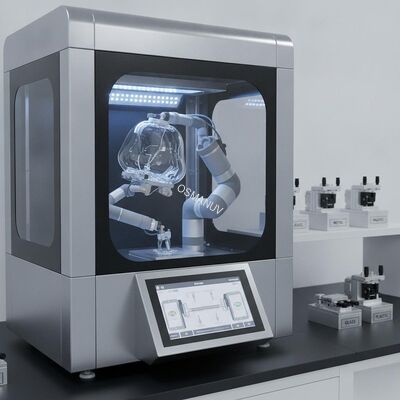

High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components

High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components
High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components

Large Image :  High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45 days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Precision UV Transfer System for 3D Curved & Irregular Surfaces – Customizable for Glass/Metal/Plastic Components

Description
Feeding Method: Bottom, Side Optional Drying Way: Ultraviolet - Curable
Coating Qty: 10~16g/sqm Total Power: 39kw
Machine Name: Double Roller Coater Roller Qty: 2 Pcs
Overall Weight: 2.2T Uv Lamp Power: 6/8/9.7kw
Highlight:

UV coating machine for 3D surfaces

,

UV transfer system for metal components

,

Customizable UV coating for glass parts

High-Precision UV Transfer System for 3D Curved & Irregular Surfaces
Product Overview

This customizable UV transfer printing line utilizes UV-curable resins and precision molds to transfer micro/nano-scale patterns onto various substrates. Available in roll-to-roll flexible film, high-precision 3D component, and fully automatic rotary configurations.

Key Configurations:

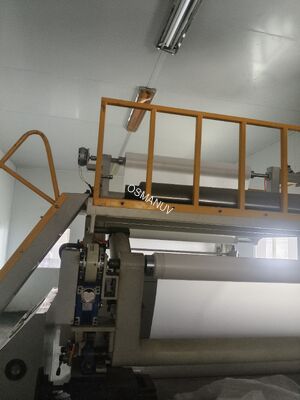

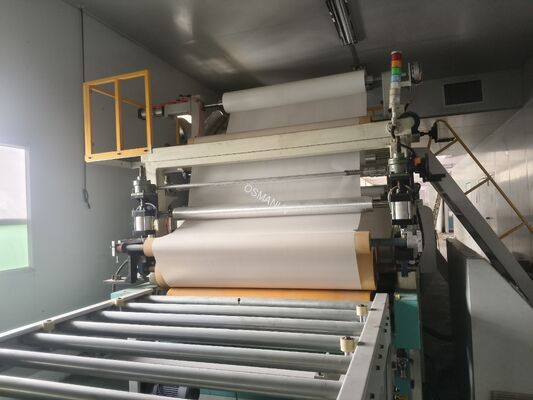

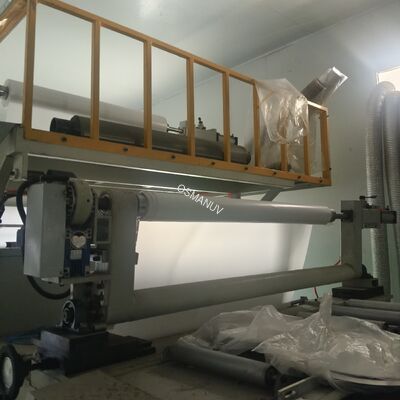

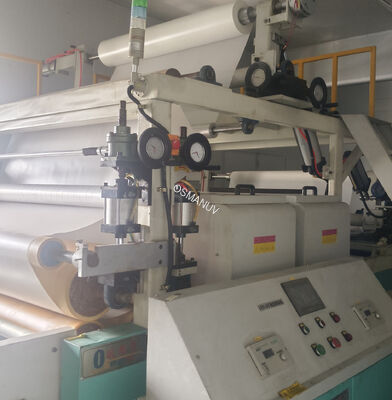

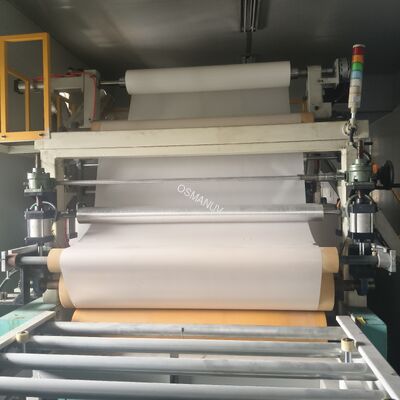

  • Roll-to-roll flexible film systems
  • High-precision 3D component processing
  • Fully automatic rotary configurations
Technology & Working Principle

UV transfer printing (also known as UV imprinting or UV-DTF transfer) uses UV-curable resin to replicate patterns from a mold/template onto target substrates. Unlike traditional direct UV printing, UV transfer allows decoration of curved, textured, uneven, or hard-to-reach surfaces including cylindrical objects and 3D components.

Working Process:
  1. UV resin application onto transfer film or directly on mold
  2. Pattern imprinting using UV exposure (curing in seconds)
  3. Transferred pattern bonding to target substrate
  4. Final peeling reveals durable, scratch-resistant graphics
Technical Specifications
Parameter Roll-to-Roll Film Model High-Precision 3D Model Fully Automatic Rotary Model
Substrate Types PET, PEN, PMMA, PC films Glass, metal, plastic parts, ceramics Cosmetic containers, electronic housings
Max Substrate Width/Size Up to 500 mm Max 450×500 mm sheet Up to 315 mm print circumference
Coating Method Slit die / micro-gravure Spin coating / dispensing Roller coating / screen printing
Coating Thickness Range 1 – 500 µm 1 – 500 µm 5 – 200 µm
Coating Uniformity ±1% ±0.002 mm ±5%
Minimum Feature Size < 30 nm (NIL) 50 nm – <30 nm > 100 µm
Machine Speed Up to 20 m/min 40-50 parts/min 25-50 parts/min
Position Repeat Accuracy ±0.05 mm ≤±0.05 mm ±0.1 mm
Applications
  • Electronic Components: Phone housings, laptop covers, automotive interior panels
  • Cosmetic Packaging: Bottles, jars, caps, tubes (cylindrical/oval/square shapes)
  • Drinkware & Glassware: Mugs, water bottles, glass surfaces (dishwasher tested)
  • Flexible Electronics: Conductive patterns, sensors, NFC antennas on PET films
  • Optical Films: Anti-reflective coatings, light guide plates, diffusion films
  • Promotional Products: Branded merchandise, short-run custom items
  • Automotive Parts: Dashboard trim, emblems, interior decorative components
Customization Options

This UV transfer printing line is highly customizable for your specific production requirements:

  • Coating Method: Slit die, micro-gravure, spin coating, or screen printing
  • Substrate Shape: Flat sheets, rolls, cylindrical, oval, triangular, hexagonal, or custom 3D shapes
  • UV Lamp Type: LED (longer life, cooler) or metal halide (higher energy)
  • Mold/Template: Custom patterns, textures, logos, or nano-scale features
  • Number of Stations: Expandable from 3 to 6 stations for multi-color/process integration
  • Automation Level: Manual loading → semi-auto → fully automatic with robotic integration
Key Features
  • Decorate complex surfaces including curved, textured, and 3D objects
  • High resolution support for 300/600/900/1200 dpi, feature size <30nm for nano-imprint
  • Scratch-resistant, dishwasher-tested graphics with strong adhesion
  • UV curing at room temperature – safe for heat-sensitive materials
  • Automated white ink circulation reduces operator intervention
  • High repeat accuracy with mechanical position repeatability ≤±0.05mm
  • Minimal material waste compared to traditional printing methods
  • Precise thickness control with ±0.002mm tolerance for micro-optical applications
Support & Services
  • Free material testing with substrate trial printing
  • On-site installation and commissioning
  • Comprehensive operator training program
  • Remote troubleshooting via video call or IoT monitoring
  • 12-month warranty on mechanical components, 6-month on UV lamps
  • Spare parts availability (molds, UV lamps, rollers)
  • Custom mold design and fabrication service
  • Lifetime technical support via phone, email, or chat
Frequently Asked Questions
What is UV transfer printing? How is it different from direct UV printing?
UV transfer printing prints onto a transfer film first, then applies the cured graphic to the target surface. Unlike direct UV printing, transfer printing works on curved, textured, irregular, and hard-to-reach surfaces that cannot fit under a flat UV printer. Applications include drinkware, automotive parts, cosmetic containers, and electronic housings.
What substrates can this UV transfer line handle?
The system is customizable for a wide range: flexible films (PET, PC, PMMA), rigid sheets (glass, metal, acrylic), and 3D objects (cylindrical, oval, triangular, hexagonal, square, curved bottles and jars). For roll-to-roll configuration, max substrate width is 500 mm.
