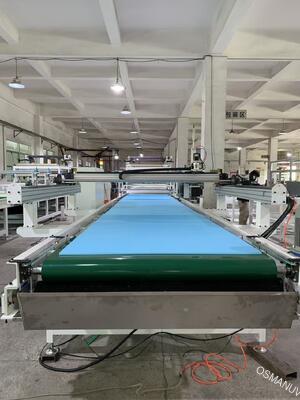

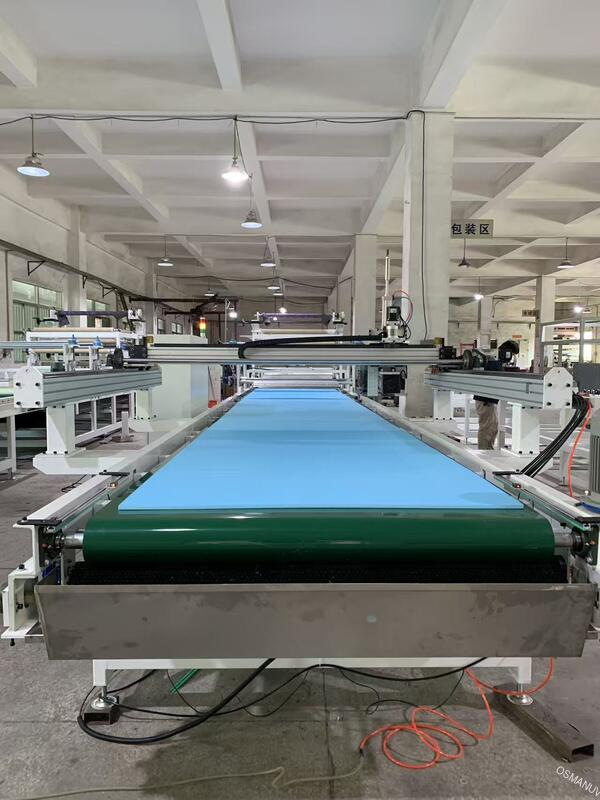

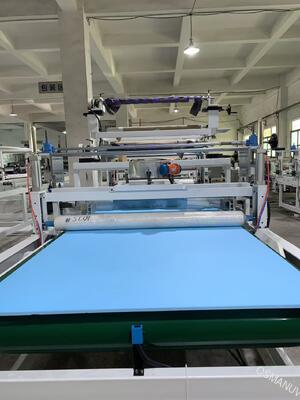

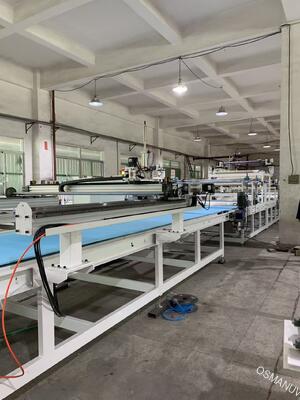

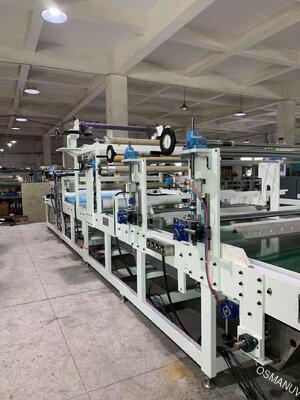

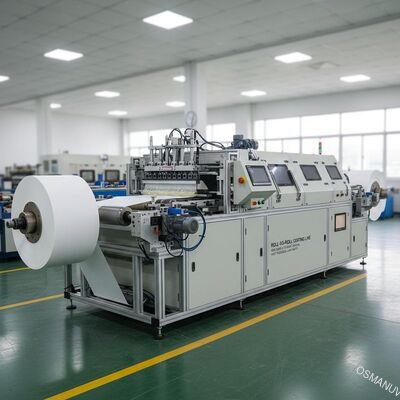

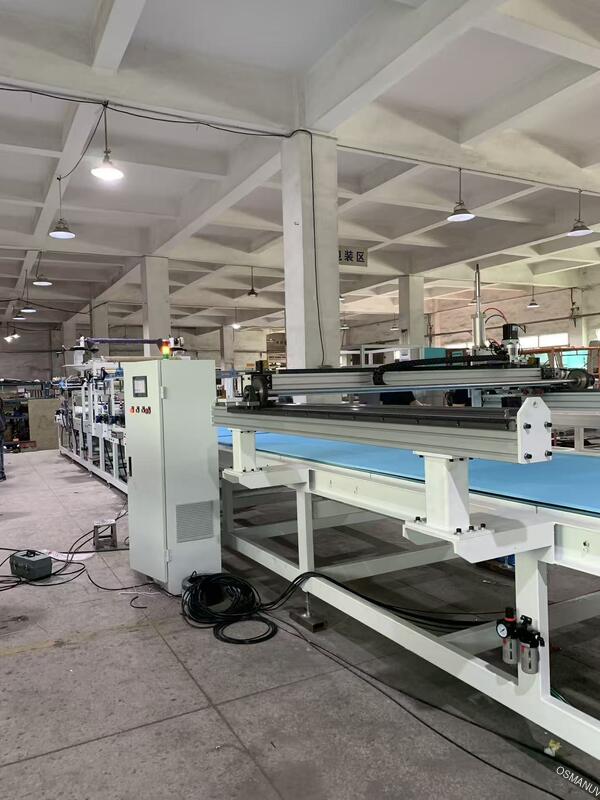

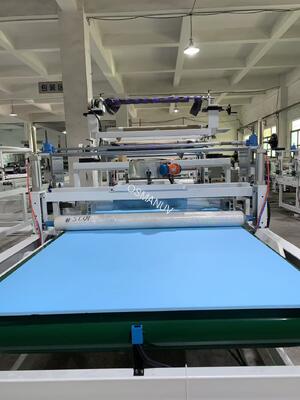

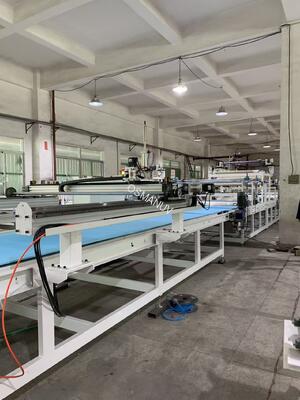

Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity

Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity
Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity
Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity

Large Image :  Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity

Description
Power Supply Voltage: 380V, 50HZ, Three-phase Five-wire System Processing Thickness: 3-80mm
Total Length: 27m Drying Way: Ultraviolet - Curable
Power: 50Kw Embellishment: Spot UV , Texture , Sandy Effect
Print Heads: EPSON S3200 3pcs Head Qty: Two/three/four
Highlight:

UV coating machine with tension control

,

doctor blade coating line customizable width

,

roll-to-roll coating machine high uniformity

Roll-to-Roll Continuous Doctor Blade Coating Line
Our doctor blade coating line enables continuous or batch coating of slurries, pastes, inks, and sol-gel materials onto glass, metal foil, polymer film, or paper. It features high thickness uniformity (< ±2%), low material waste, and stable gap control. Ideal for R&D labs, pilot lines, and full-scale production.
Technical Parameters
Parameter Standard Range Customizable Option
Coating method Doctor blade (lab) / Slot die (production) Comma roll / Microgravure customizable
Coating width 150 mm (lab) / 600 mm (production) 50 - 1600 mm
Substrate type Glass, film, metal foil Rigid or flexible customizable
Wet coating thickness 10 - 500 µm 1 - 2000 µm
Thickness uniformity ±2% ±0.5% (servo gap control)
Line speed 0.1 - 5 m/min (lab) 0.05 - 50 m/min
Gap adjustment method Manual micrometer Motorized servo customizable
Drying temperature RT - 150°C RT - 300°C (multi-zone)
Substrate width (roll-to-roll) 300 mm 100 - 1500 mm customizable
Tension control range 10 - 200 N 5 - 500 N customizable
Power supply 220V / 50Hz single phase 380V three phase available
Applications
  • Lithium-ion battery electrode coating (anode & cathode)
  • Perovskite and organic solar cell active layers
  • Quantum dot light-emitting diode (QLED / OLED) films
  • Ceramic green tape for MLCC capacitors
  • Adhesive, sealant, and thermal interface materials
  • Pharmaceutical transdermal patches
  • Flexible printed electronics (Ag nanowires, graphene)
  • Optical films (anti-reflective, hard coating)
Process parameters customizable for each material type.
Customization Options
  • Coating head material: Stainless steel 316L / Tungsten carbide / Polymer
  • Blade / die gap adjustment resolution down to 0.1 µm
  • Shimming design for patterned or multi-layer coating
  • Substrate vacuum chuck or magnetic clamping (for rigid substrates)
  • Automated slurry circulation and degassing system
  • Exhaust VOC treatment (carbon filter or wet scrubber)
  • Cleanroom integration (ISO 5 - ISO 8) with customizable footprint
  • Recipe-based PLC control with touch interface
  • Edge bead removal (EBR) air knife or suction nozzle
Key Features
  • Precision ground doctor blade with wear-resistant edge
  • Real-time gap feedback via laser displacement sensor
  • Touchscreen HMI with recipe storage for 100+ coating parameters
  • Modular design for future upgrades (add dryer, unwind/rewind)
  • Anti-drip and overshoot protection for start/stop
  • Low material dead volume (< 5 ml for small-scale head)
  • Customizable software triggers for vision or thickness measurement
  • Optional: thickness gauge integration (confocal / eddy current)
Support and Services
  • Free process consultation prior to purchase (upload your material MSDS)
  • On-site installation and commissioning by certified engineers
  • 18 months warranty on coating head and gap actuator
  • Remote support via TeamViewer or equivalent
  • Annual calibration service - customizable service plan (1/3/5 years)
  • Spare parts inventory for blades, gaskets, and bearings
  • Operator training manual & video library included
Packing and Shipping
Packing: Anti-static film + foam padding + plywood export case
Coating head shipped separately in protective oil coating
Dimensions (small lab line): 130×60×60 cm (approx. 180 kg)
Dimensions (production R2R line): depends on length - customizable packing layout
Shipping: FCL preferred, LCL available, air freight for urgent lab units
All packages labeled with lifting points and "Fragile - Precision Gap"
Frequently Asked Questions
Q1: Can this line handle both rigid glass and flexible PET film?
Yes. We offer customizable substrate fixtures: vacuum chuck for glass, pin-lift for rigid panels, or roller nip for film.
Q2: What is the minimum coating quantity for a lab-scale line?
With a small slot die, you can coat with just 5-10 ml of slurry. Die reservoir volume is customizable down to 2 ml.
Q3: Is the drying oven configurable for inert gas (N₂) environment?
Absolutely. Oven gas purging and oxygen monitoring are customizable options for moisture/air-sensitive materials.
