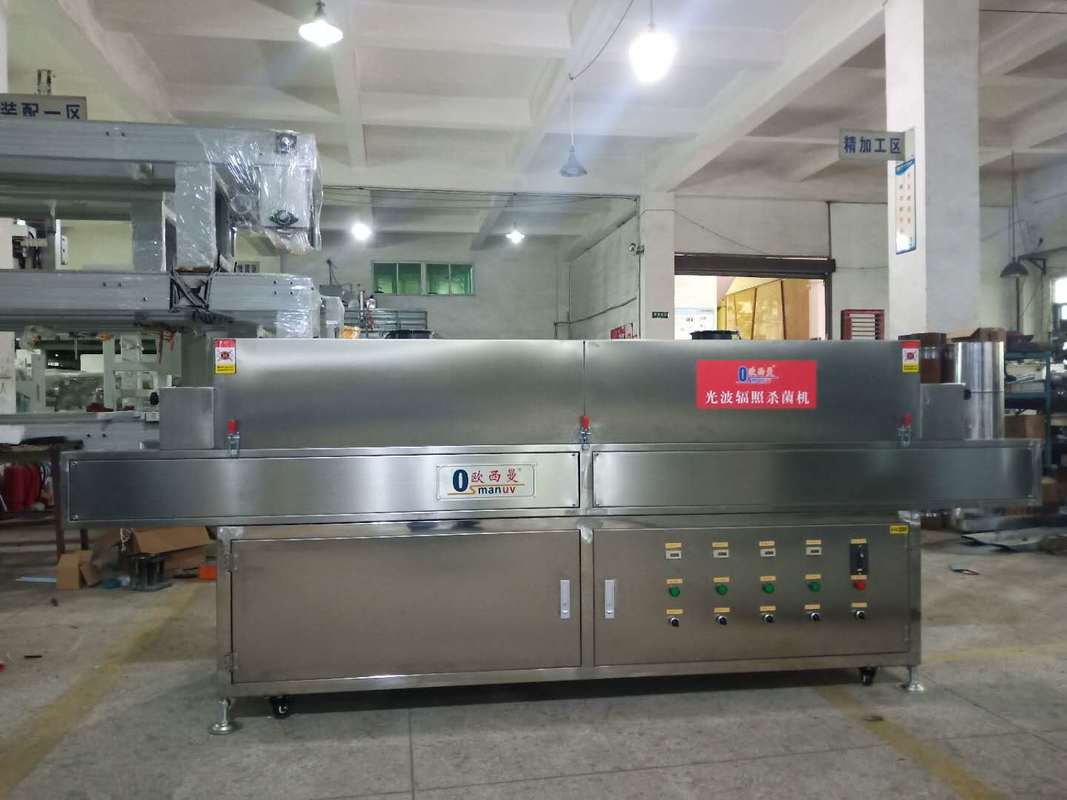

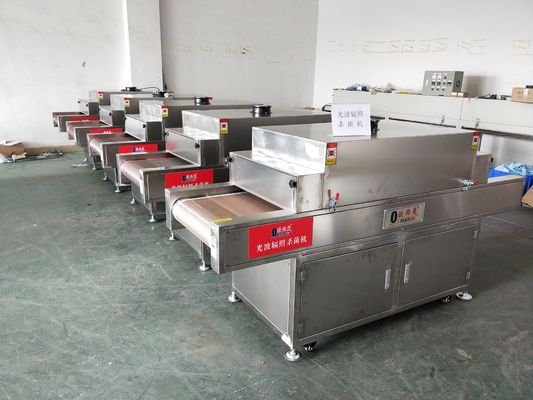

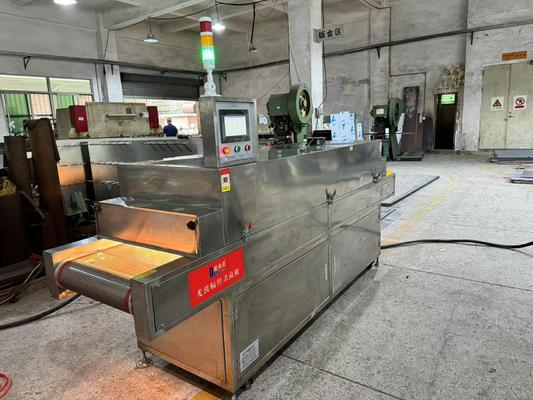

Customizable UV Sterilizer with Automatic Conveyorized Germicidal Line for Chemical-Free Sterilization
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Type: | Drying Oven,Freeze Drying Equipment,Spray Drying Equipment,Rotary Drying Equipment,Tray Dryer | Condition: | New |
|---|---|---|---|
| Color: | Yellow Or Customization,According To Customers' Requirement,Customized,green,Customized Drying Oven | Name: | Industrial Fish Drying Machine For Fruit Noodle And Meat,industrial Fruit Drying Machine,Automatic Industrial Vacuum Oven Drying Machine,Industrial Corn Drying Machine / Grain Drying Equipment,Vacuum Freeze Dryer |
| Capacity: | 100kg,15 Tons Per Batch,25kg,400-600kg,50kg | Installation: | Engineer Guide,Engineers Guiding,Under Technician's Guidance,100% Free Standing,Engineer's Guidance |
| Usage: | Reduce Material's Moisture,Food Used,Corn Drying Machine,Freeze Dryer,pharmaceutical Industrial | Heating Source: | Electricity,Steam+electricity |
| Highlight: | UV sterilizer with automatic conveyor,industrial UV germicidal sterilizer,chemical-free sterilization drying machine |
||
Product Description
Customizable UV Sterilizer | Automatic Conveyorized Germicidal Line for Food & Pharma Packaging
Product Overview
This industrial UV sterilizer production line uses short-wave ultraviolet light (254 nm) to destroy DNA/RNA of bacteria, viruses, and mold without heat or chemicals. Ideal for surface sterilization on packaging, caps, vials, fruits, meat, and medical devices. The entire line supports customizable tunnel length, lamp count, conveyor speed, and UV dosage (mJ/cm²).
Technical Parameters
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| UV lamp type | Low-pressure mercury | ✔ Excimer (222 nm) / LED |
| Number of lamps | 4 - 32 pcs | ✔ Up to 64 pcs |
| Conveyor width | 300 - 1500 mm | ✔ Custom width |
| UV dosage | 20 - 200 mJ/cm² | ✔ Up to 500 mJ/cm² |
| Belt speed | 0 - 15 m/min | ✔ Variable speed |
| Irradiation height | 50 - 300 mm | ✔ Adjustable |
| Control system | PLC + HMI | ✔ Remote monitoring / data logging |
| Power supply | 220V / 50Hz | ✔ 110V / 60Hz / 415V |
| Material of tunnel | SS304 | ✔ SS316L food grade |
Applications
- Food industry: fruit surface sterilization, cheese, meat packaging
- Pharmaceutical: vial, ampoule, syringe exterior disinfection
- Cosmetic: bottle, cap, tube sterilization
- Packaging: foil, plastic cup, lid, blister pack
- Medical device: surgical tool tray, face shield
All applications support customizable lamp layout and dosage per product type.
Customization Services
- Conveyor height and width
- Lamp arrangement (top / bottom / both sides)
- UVC + ozone combination
- Dust-proof or wash-down rated enclosure (IP65)
- Data logging and SCADA integration
- Explosion-proof design for solvent environments
Key Features
- Chemical-free sterilization - no residue or VOC
- Instant start - no warm-up time
- Low temperature - safe for heat-sensitive products
- Uniform coverage with optimized reflector design
- Real-time lamp intensity monitoring
- Energy efficient - typical 1-3 kW total power
Support and Services
- Free UV dosage simulation report for your product
- On-site installation and line integration
- Operator training and validation protocol support
- 12-month warranty + lifetime lamp supply
- Remote troubleshooting via PLC access
Packing and Shipping
- Packing: Bubble wrap + PE film + export wooden case with shock absorption
- Shipping: FOB/CIF from Shanghai or Ningbo port
- Lead time: 15-30 days (depends on customization)
- Documents: Manual, CE certificate, intensity calibration certificate
Frequently Asked Questions
Q1: Can the line sterilize both sides of a product at once?
A: Yes, we offer customizable top + bottom lamp configuration for double-sided treatment.
Q2: What is the maximum belt width you can customize?
A: Up to 2000 mm with multi-lamp overlapping design - fully customizable.
Q3: Does UV leave any odor or taste on food?
A: No, unlike ozone, UV-C (254 nm) leaves no taste, smell, or chemical residue.
Want to Know more details about this product
