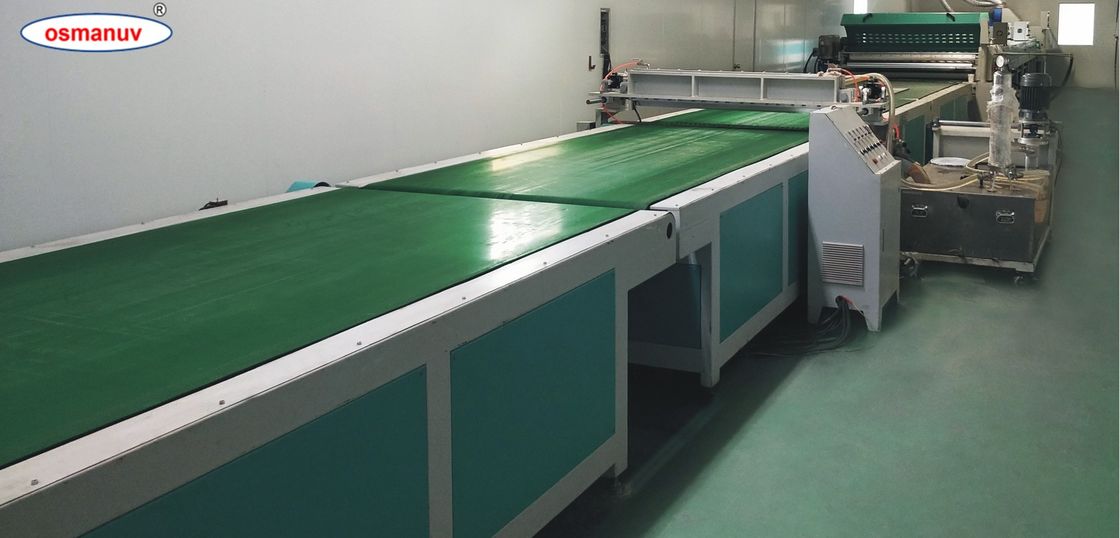

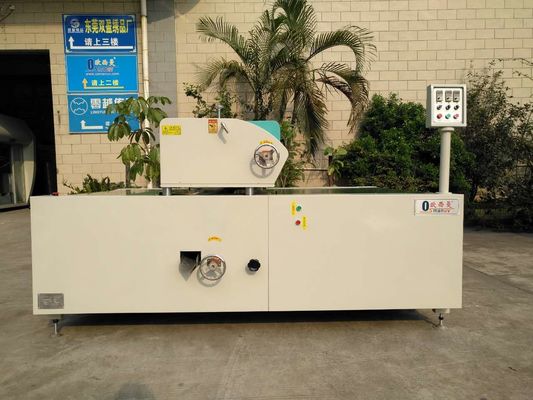

High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options

High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options
High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options
High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options

Large Image :  High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Speed Continuous Curtain Coater for Uniform Coating Thickness with Fully Customizable Options

Description
Condition: New Power: 3KW,16KW,65.3kw,4.2kw,0.75KW/220V/50HZ
Product Name: SGUV-650 Small Uv Coater Machine With Coating Width 630mm,High Speed Automatic Digital Uv Coating Machine,Hot Melt Roll Coating Machine Roll To Roll Uv Coating Machine,SGUV-650B Automatic UV Coating Machine,photo Album UV Coating Machine Coating Speed: Adjustable,150-500m2/h,0-5 Meters/min,2.5m/min,can Be Set By Yourself
Color: You Can Decide,rainbown And So On,golden,Customized,sliver Coating Width: 650mm,910mm Coating,440mm
Usage: Spot Uv Coating Machine,digital Prints Protect Material: PP,self-adhesive Laser Material,bottle Glass,Metal,PVC
Highlight:

UV curtain coater machine

,

continuous curtain coater for uniform coating

,

customizable high-speed UV coating machine

Roll-to-Roll Curtain Coater for Flexible Films & Paper | High-Speed Continuous Liquid Coating Line – Fully Customizable
Product Overview
A curtain coating machine (also known as a curtain coater) is a precision liquid coating system that creates a continuous, falling "curtain" of coating material through a slotted die head. The substrate passes underneath this curtain on a conveyor, receiving a perfectly uniform, bubble-free coating in a single pass.
This technology is widely used for applying:
  • UV topcoats and sealers on wood (MDF, particleboard, plywood)
  • Scratch-resistant coatings on PVC flooring and laminate
  • Primer or adhesive layers on films, paper, and textiles
  • Functional coatings on metal, glass, and plastic sheets
Key advantages include:
  • Excellent coating uniformity (within ±1-3 microns)
  • High material efficiency (recovery system returns excess coating)
  • No misting or overspray (unlike spray coating)
  • Smooth, orange-peel-free finish
  • High production speed (up to 100 m/min or more)
Our curtain coater is fully customizable for substrate type, coating viscosity, curtain width, line speed, and curing method.
Technical Specifications
Parameter Standard Range Customizable Option
Effective Coating Width 600 mm / 1000 mm / 1300 mm / 1600 mm ✔ Yes (up to 2200 mm)
Conveyor Speed 10 - 60 m/min (standard) ✔ Yes (up to 120 m/min)
Coating Thickness (wet) 10 - 200 µm ✔ Yes (up to 500 µm)
Viscosity Range 50 - 800 cP (standard) ✔ Yes (up to 2000 cP with heated head)
Substrate Type Flat panels (3-50 mm) / Films (0.1-3 mm) ✔ Yes (customizable infeed)
Substrate Thickness (panels) 3 mm - 50 mm ✔ Yes (up to 100 mm)
Curtain Height (nozzle to substrate) 20 - 60 mm ✔ Yes (adjustable)
Coating Material UV coating, water-based, PU, acrylic, epoxy ✔ Yes
Recovery System Efficiency ≥95% -
Drying / Curing IR + hot air (water-based) / UV LED (UV coating) ✔ Yes
Power Supply 380V / 400V / 415V, 50/60Hz, 3-phase ✔ Yes (custom voltage)
Tank Capacity 50 - 200 liters ✔ Yes
Control Type PLC + HMI touchscreen ✔ Yes (remote control optional)
Applications
  • Woodworking & furniture: MDF, particleboard, plywood, solid wood panels (UV sealer, topcoat, primer)
  • Flooring: PVC, laminate, LVT, wood flooring (wear layer, anti-scratch coating)
  • Packaging: paperboard, folding carton, corrugated (water-based or UV varnish)
  • Flexible films: BOPP, PET, PE, paper (primer, adhesive, barrier coating)
  • Building materials: cement board, calcium silicate board, gypsum board
  • Industrial parts: metal sheets, plastic panels, glass (functional coatings)
Customization Options
We offer complete customization for the curtain coating machine:
  • Working width: from 300 mm (narrow web) to 2200 mm (large panels)
  • Curtain type: single curtain or double curtain for two-layer application
  • Coating head material: stainless steel (standard) or special alloy for abrasives
  • Conveyor type: PVC belt (for panels) or mesh belt (for air flow drying)
  • Heating system: electric, oil, or steam for coating tank and head
  • Viscosity control: manual or fully automatic with online viscometer
  • Curing tunnel length and lamp type (UV LED, IR, hot air, or hybrid)
  • Integration with existing sanding, printing, or embossing line
  • Cleanroom version for optical films and medical coatings
  • Explosion-proof design for solvent-based coatings
Key Features
  • Uniform coating thickness across full width (±1-3 µm precision)
  • No contact with substrate → zero scratch or streak marks
  • Closed-loop coating circulation with recovery tray (minimal waste)
  • Quick curtain break detection with automatic alarm and shutoff
  • Easy cleaning - slotted die removable without tools (optional quick-release)
  • Variable curtain height adjustment for different substrate thicknesses
  • Viscosity and temperature control for consistent coating quality
  • Low maintenance - no spray nozzles to clog
  • Energy-efficient drying with zone-separated IR or LED lamps
  • User-friendly touchscreen with recipe storage (coating parameters per product)
Support and Services
  • Free coating trials - we coat your samples in our lab
  • Process development support - coating formulation and parameter recommendations
  • On-site installation and commissioning (optional)
  • Operator and maintenance training (on-site or video)
  • 12-month warranty + lifetime remote technical support
  • Fast spare parts supply (slotted dies, pumps, belts, sensors)
  • Annual preventive maintenance contract available
Packing and Shipping
Packing:
  • Coating head, pumps, electronics: anti-static + foam-lined plywood case
  • Frame, conveyor, drying tunnel: stretch film + waterproof PE cover + reinforced wooden crate
  • Tanks and pipes: separate wooden case with anti-rust oil
  • All packages with fragile and orientation labels
Frequently Asked Questions
Q: What is the difference between a curtain coater and a roller coater?
A: A curtain coater applies coating without physical contact, eliminating streaks and roller marks. A roller coater uses rotating rollers. We can customize either type or a combination.
Q: Can the curtain coater handle both water-based and UV coatings?
A: Yes, the system is fully customizable for water-based, solvent-based, UV-curable, PU, and epoxy coatings. Different material contact parts are used accordingly.
