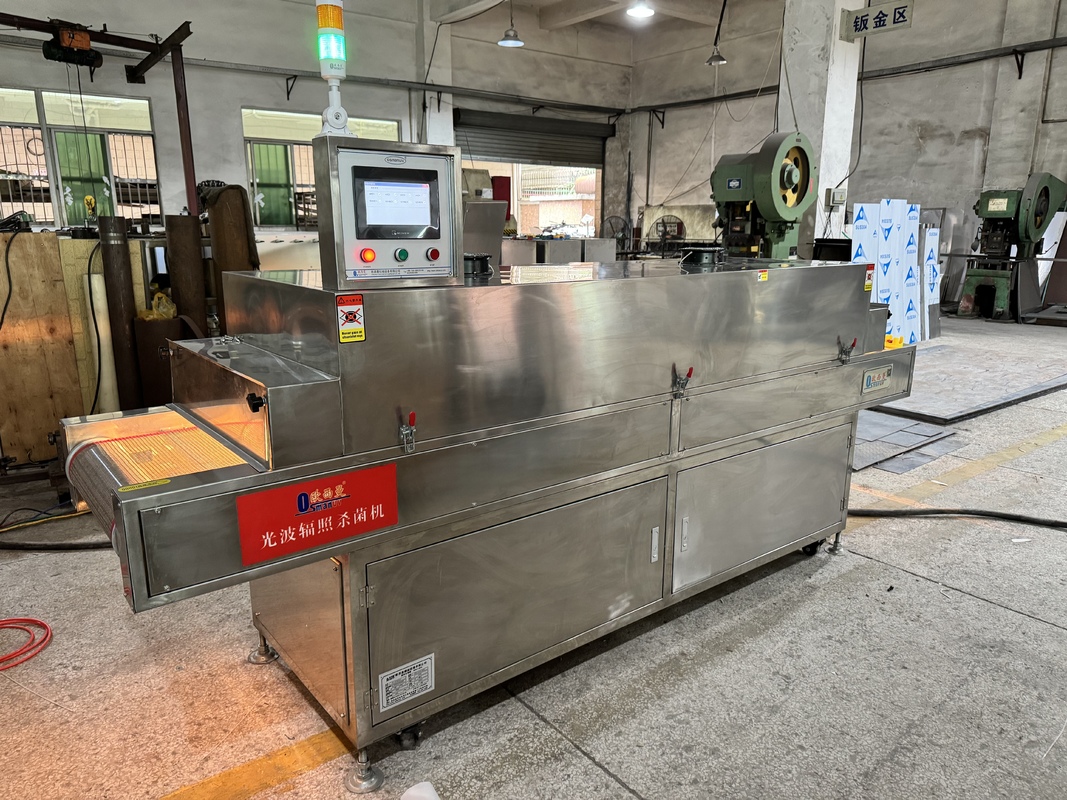

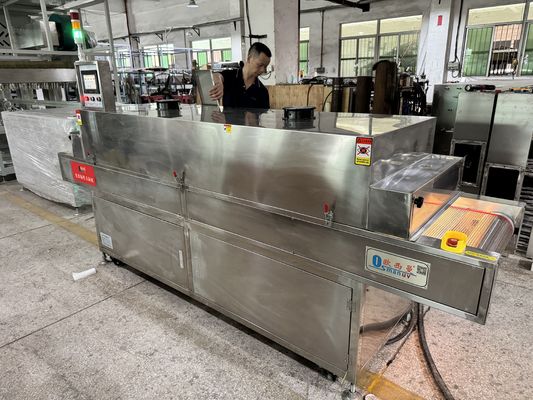

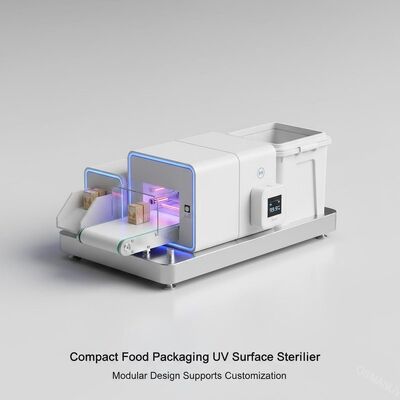

Compact Food Packaging UV Surface Sterilizer | Modular Design Supports Customization
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-SJ-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Safetyfeatures: | Protective Cover With Interlock Switch | Productname: | UV Irradiation Machine |
|---|---|---|---|
| Type: | UV Sterilization Machine | Coating Safety: | High Safety |
| Timer Control Range: | 0-99min | Powersupply: | 220V/50Hz |
| Uv Sterilization Lamp: | 30w Lamp Tube（20pcs） | Lamptype: | Mercury Vapor Lamp |
| Highlight: | compact UV food sterilizer,modular UV surface sterilizer,customizable UV irradiation machine |
||
Product Description
Compact Food Packaging UV Surface Sterilizer | Modular Design Supports Customization
This UV sterilization equipment is specifically designed for disinfecting food packaging surfaces (such as trays, containers, films, etc.) using ultraviolet-C (UV-C) germicidal irradiation. It effectively eliminates up to 99.9% of bacteria, molds, and viruses without chemicals. The system is fully customizable in configuration, conveyor speed, UV lamp power, and layout to adapt to various production line needs.
Production Line Composition
- UV sterilization tunnel with stainless steel housing
- High-intensity UV-C lamps (or UV-C LEDs)
- Conveyor belt system (adjustable speed)
- Reflective aluminum chamber for enhanced irradiation
- Electrical control panel with PLC/HMI

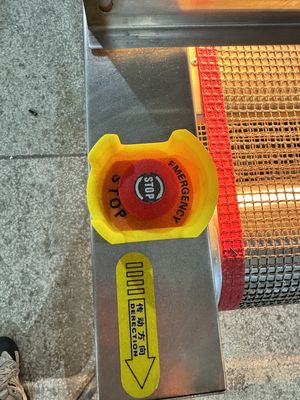

- Safety sensors (motion detection, UV shield)
- Optional: pre-cleaning module, cooling system, IoT monitoring
Technical Parameters
| Parameter | Specification | Customizable Options |
|---|---|---|
| UV Wavelength | 254 nm (185 nm optional) | Yes (UVA/UVB/UV-C selectable) |
| UV Lamp Power | 120 W per lamp (standard) | 60-300 W per lamp |
| Conveyor Speed | 0-10 m/min | Adjustable according to output |
| Sterilization Efficiency | >99.9% against common pathogens | Validated per packaging material |
| Power Supply | 220V/50Hz (or 110V/60Hz) | Yes |
| Dimensions (L×W×H) | 2000×800×1200 mm (standard) | Custom lengths/widths |
| Material Contact Parts | Stainless steel 304/316 | Yes (food-grade coatings available) |
| Control Interface | Touchscreen PLC with preset programs | Custom software/logic |
Applications
- Disinfection of pre-formed food containers (plastic, glass, metal)
- Surface sterilization of packaging films/lids before sealing
- Integration into filling/packaging lines for dairy, beverages, ready-to-eat foods
- Use in pharmaceutical packaging cleaning processes
Customization Options
- Tailored conveyor width/length to fit existing production lines
- Adjustable UV intensity and exposure time based on packaging material
- Custom safety interlocks and compliance with regional regulations
- Optional integration with air purification or ozone removal systems
Key Features
- Energy-saving UV lamps with long service life (>9000 hours)
- Real-time UV intensity monitoring and automatic adjustment
- Modular design for easy expansion or reconfiguration
- Compliance with FDA, CE, and ISO 9001 standards
Support and Services
- Free preliminary production line assessment
- On-site installation and training available
- 24/7 remote technical support
- Spare parts and maintenance packages
Packing and Shipping
- Weatherproof wooden crate packaging
- Fumigation-free materials for international shipping
- Standard delivery: 15-30 days after confirmation (custom designs may require longer)
Frequently Asked Questions
Can the UV intensity be adjusted for different packaging materials?
Yes, the system is customizable with adjustable UV output and conveyor speed.
Is the equipment suitable for moist or uneven packaging surfaces?
Special reflective chamber designs can be customized to ensure uniform irradiation.
How is safety ensured during operation?
Automatic shut-off when the tunnel is opened, and UV-blocking viewing windows are standard.
Can it be integrated into an automated production line?
Yes, we provide customized PLC interfaces for seamless integration.
What is the lead time for a fully customized system?
Typically 4-8 weeks depending on technical requirements.
