Quality W300mm Light wave UV Irradiation Machine / UV Curing Machine 10m/min factory

W300mm Light wave UV Irradiation Machine / UV Curing Machine 10m/min

Name: W300mm Light wave UV Irradiation Machine / UV Curing Machine 10m/min
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-UVC30-300AL
Price: 4,500.00 USD
Availability: InStock

W300mm Light Wave UV Irradiation Machine / UV Curing Machine 10m/min Efficient 30W tube light wave irradiation sterilizer designed for industrial UV curing applications. Product Specifications 1 Equipment Specifications Length 6000mm × Width 550mm × Height 1380mm 2 UV Sterilization Area 5000mm 3 ...

Place of Origin:China

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-UVC30-300AL

Minimum Order Quantity:1 set

Price:Negotiable

Product Custom Attributes

Highlight

W300mm UV Irradiation Machine

W300mm UV Curing Machine

10m/Min UV Irradiation Machine

Product Name:

Light Wave Irradiation Sterilizer

Speed:

1-10m / Min

Power:

2KW

Color:

Computer White / Green / Silver

Specification:

3000mm*700mm*1350m

Weight:

280KG

Product Description

W300mm Light Wave UV Irradiation Machine / UV Curing Machine 10m/min

Efficient 30W tube light wave irradiation sterilizer designed for industrial UV curing applications.

Product Specifications

1	Equipment Specifications	Length 6000mm × Width 550mm × Height 1380mm
2	UV Sterilization Area	5000mm
3	Inlet and Outlet	500mm infeed; 500mm infeed; 180mm in and out
4	Mesh Belt	Mesh belt
5	Conveyor Width	300mm
6	Speed	1-10m/min, stepless speed regulation
7	Material	Whole machine made of SUS 304 stainless steel material
8	UV Germicidal Lamp	30W tube (30 tubes) - top 15 irradiated downward, bottom 15 irradiated upward
9	Exhaust Power	5 sets of 38W 220V
10	Conveying Motor	120W 220V
11	Conveying Direction	From left to right
12	Conveyor Belt Height	780 ± 50mm from ground
13	Safety Devices	Earth leakage circuit breakers, control line fuses, compliant with international safety standards

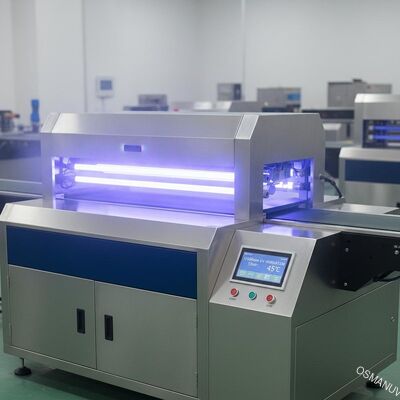

W300mm UV Irradiation Machine front view

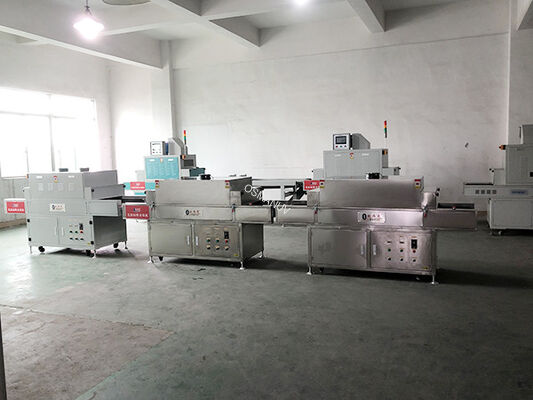

W300mm UV Irradiation Machine operational view

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?

A: Firstly, we will test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?

A: Fully compliant with GMP & ISO standards. Our products have passed CE certification for exporting.

Q: What is your Quality Warranty?

A: One year warranty with lifelong maintenance and technical support.
