Quality Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min factory

Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min

Name: Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-UVC50-300AL
Price: 4,500.00 USD
Availability: InStock

SUS 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min SUS 304 Stainless Steel Mesh Belt Efficient 30W Tube Light Wave Irradiation Sterilizer Advanced UV sterilization equipment designed for efficient microbial control in industrial applications. Technical Specifications Specification ...

Place of Origin:China

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-UVC50-300AL

Minimum Order Quantity:1 set

Price:Negotiable

Product Custom Attributes

Highlight

1m/Min UV Irradiation Machine

304 UV Irradiation Machine

1m/Min ultraviolet curing systems

Product Name:

Light Wave Irradiation Sterilizer

Speed:

1-10m / Min

Power:

2KW

Color:

Computer White / Green / Silver

Specification:

2500mm*700mm*1350m

Weight:

280KG

Product Description

SUS 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min

SUS 304 Stainless Steel Mesh Belt Efficient 30W Tube Light Wave Irradiation Sterilizer

Advanced UV sterilization equipment designed for efficient microbial control in industrial applications.

Technical Specifications

Specification	Details
Model	OSM-UVC50-300AL
Equipment Dimensions	2500mm (L) × 550mm (W) × 1380mm (H)
UV Sterilization Area	500mm
Inlet and Outlet	500mm infeed; 180mm in and out
Conveyor System	Mesh belt
Conveyor Width	300mm
Speed Range	1-10m/min, stepless speed regulation
Material Construction	Entire machine made of SUS 304 stainless steel
UV Germicidal Lamps	30W tubes (50 tubes total: 25 top downward irradiation, 25 bottom upward irradiation)
Exhaust System	5 sets of 38W 220V
Conveyor Motor	120W 220V
Conveying Direction	Left to right
Conveyor Belt Height	780 ± 50mm from ground
Safety Devices	Earth leakage circuit breakers, control line fuses, compliant with international safety standards

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I verify your machine quality?

We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Our production complies with GMP & ISO standards, and our products have passed CE certification for export.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.

Product Gallery

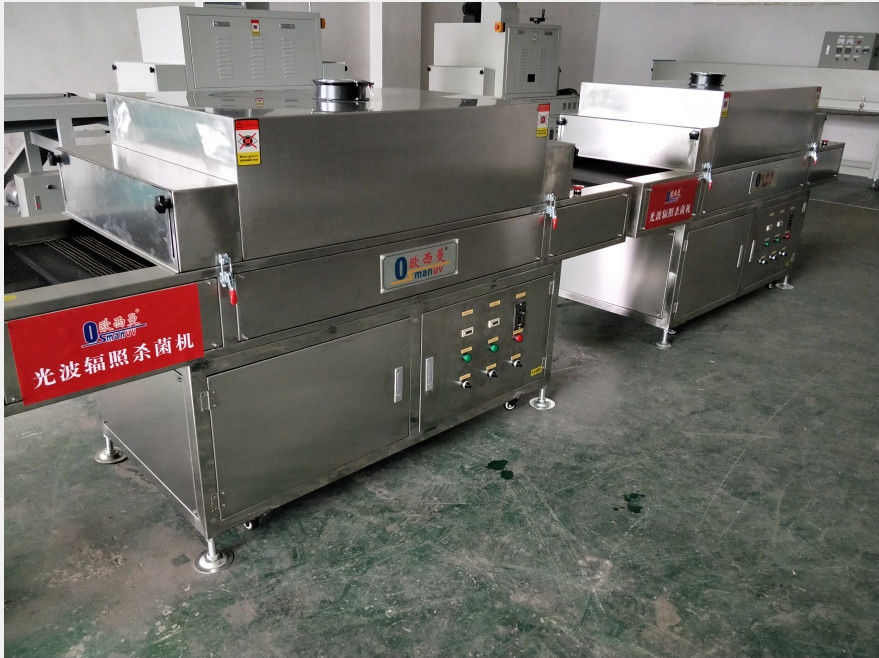

SUS 304 Stainless Steel UV Irradiation Machine front view

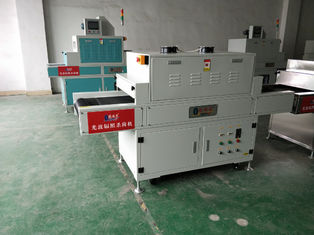

SUS 304 Stainless Steel UV Irradiation Machine side view

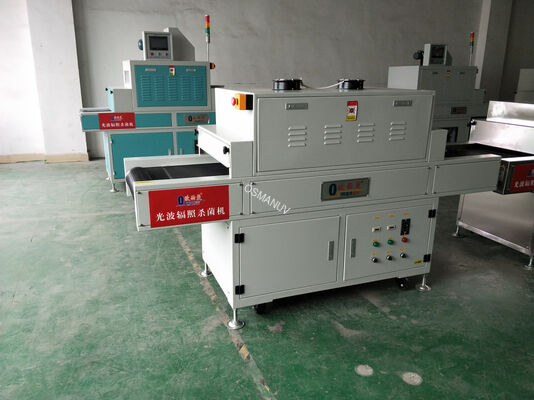

SUS 304 Stainless Steel UV Irradiation Machine operational view
