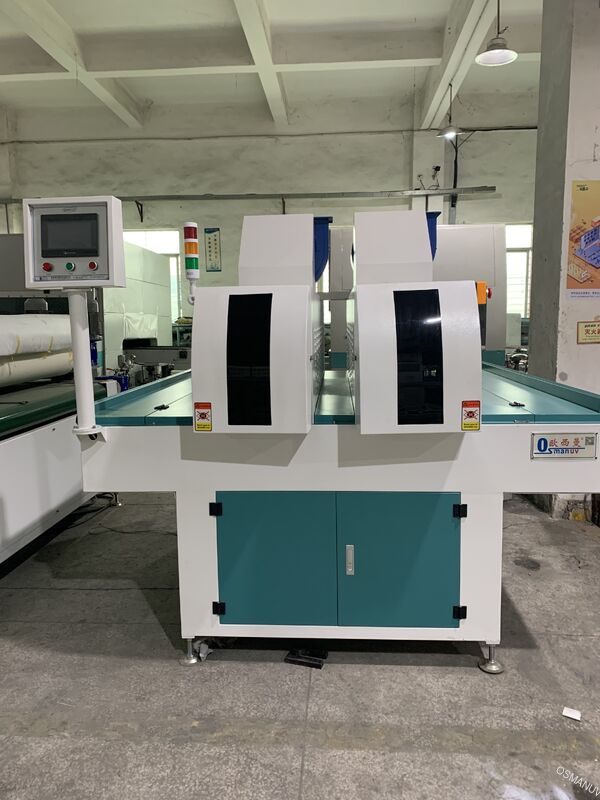

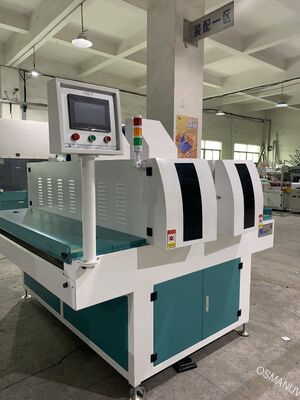

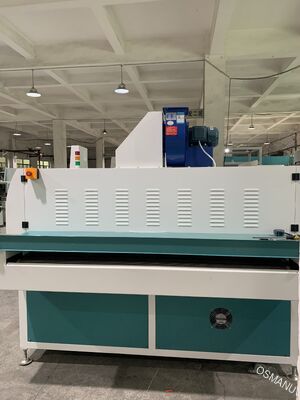

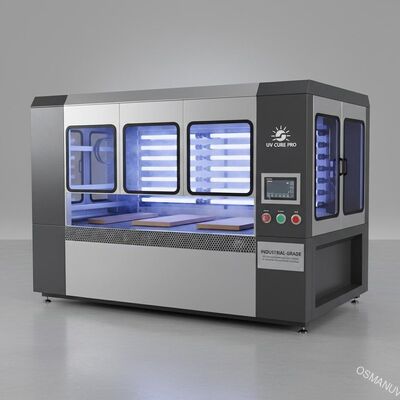

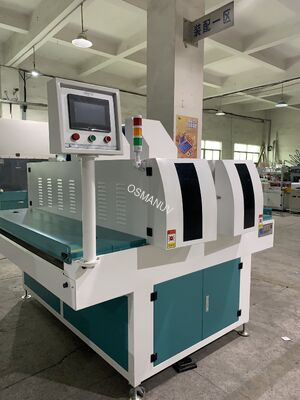

Industrial-Grade UV Curing Machine | For Rapid Surface Drying and Curing of Solvent-Based Wood Coatings
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GH-1320T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Package: | Wooden Case | Warranty: | One Year |
|---|---|---|---|
| Effective Width: | 1320mm | Drying Type: | UV Curing |
| Powersupply: | 220V/50Hz | Doctor Wheel: | Chrome |
| Coating Automation: | High Automation | Coating Thickness: | Uniform Thickness |
| Highlight: | Industrial UV curing machine for wood coatings,UV coating machine for rapid drying,Solvent-based wood coatings UV curing machine |
||
Product Description
This UV curing station is engineered for seamless integration into existing wood finishing lines. The complete system includes:
- Infrared pre-conditioning zone for solvent evaporation
- High-power UV lamp modules

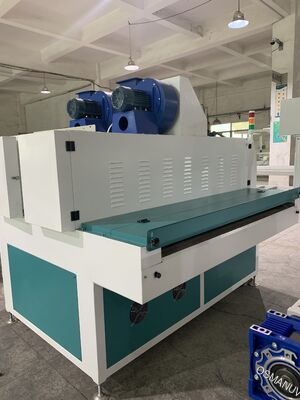

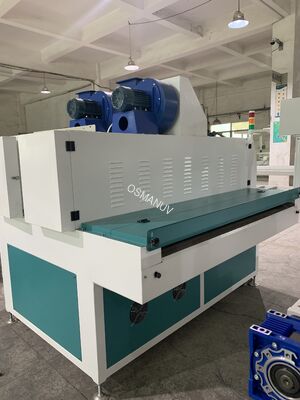

- Efficient exhaust and cooling system
- Conveyor system (roller or belt)
- Centralized power supply and control cabinet
This industrial-grade UV curing machine is specifically engineered for rapid surface drying and complete curing of solvent-based coatings (such as PU and NC) applied on wood and furniture products. Utilizing intense ultraviolet light to trigger instant photopolymerization, it creates hard, scratch-resistant, high-gloss finishes within seconds, significantly increasing production throughput and quality.
| Parameter Category | Specification |
|---|---|
| Model | UVC-WS-1300 (Standard) |
| Effective Curing Width | 1320 mm Customizable from 600mm to 1800mm |
| UV Light Source | High-power mercury amalgam lamp (120W/cm or 160W/cm) |
| Peak Irradiance | Up to 1200 mW/cm² |
| Conveyor System | Roller conveyor. Speed: 3 - 20 m/min (VFD controlled) |
| Pre-conditioning Zone | Short-wave IR heater (optional), for solvent flash-off |
| Cooling Method | Forced air cooling for lamp housing |
| Total Power | Approx. 35 - 75 kW (depending on width and lamp power) |
| Control System | PLC with touchscreen HMI, energy-saving controls |
Ideal for curing solvent-based topcoats and primers on:
- Wooden doors & cabinets
- Office/Home furniture
- Flooring panels
- Wooden decorative items
We offer comprehensive customizable solutions to fit your unique process requirements:
- Custom machine width and length
- Choice of lamp type and power
- Integration of specific IR pre-heating or post-cooling zones
- Tailored conveyor types to match your production line
- Instant Drying & Curing: Reduces drying time from hours to seconds, maximizing line speed
- Superior Surface Quality: Delivers harder, more scratch- and chemical-resistant finishes
- Space Saving: Compact design requires far less space than traditional drying tunnels
- Lower VOC Emissions: Enables use of higher-solid coatings, reducing solvent evaporation
- On-site installation guidance and process optimization
- Comprehensive operator training
- One-year warranty on the complete system
- Lifetime technical support and spare parts supply
The machine is modularized and packed in heavy-duty wooden crates for safe ocean freight. Shipping terms (FOB, CIF, etc.) are negotiable. Standard lead time is 8-10 weeks after order confirmation.
