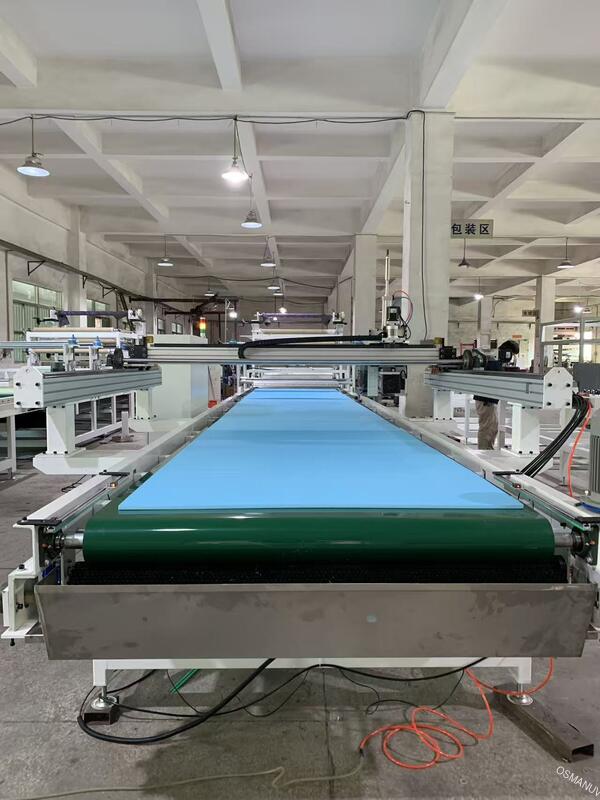

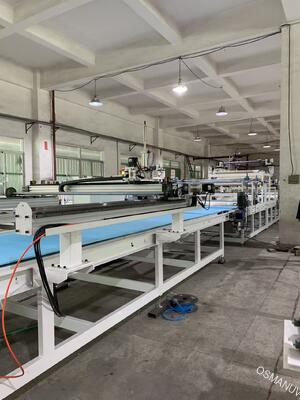

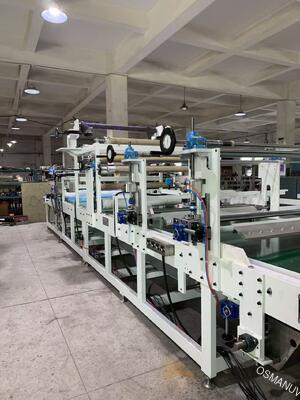

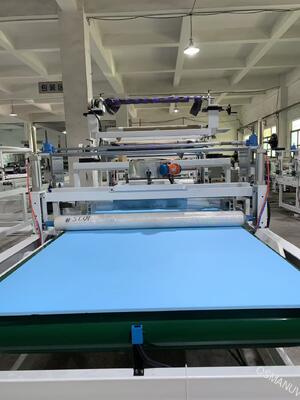

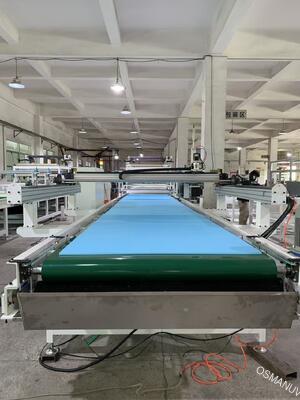

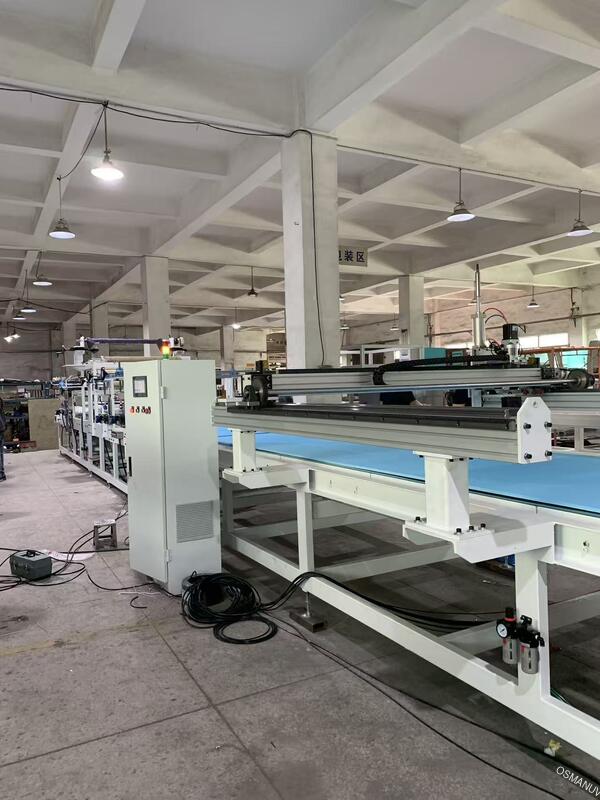

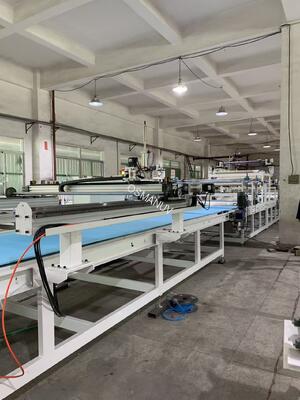

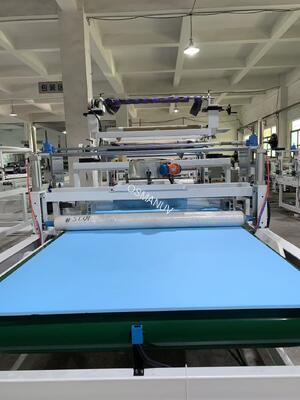

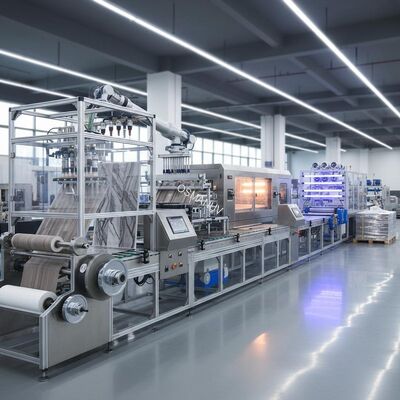

Precision Multi-Stage Scrap Coating Production Line for Luxury Vinyl Tile (LVT) - Decorative & Wear Layer Application
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GT-620 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Production Cycle: | 35-45days | Coating Speed: | 5-20m/min |
|---|---|---|---|
| Conveyor Power: | 2.2KW | Drive Motor: | AC Motor |
| Condition: | New | Weight: | Approximately 500-1500 Kg |
| Coating Type: | Scrap Coating | Roller Material: | Chrome-plated Steel |
| Highlight: | Precision LVT scrap coating line,Multi-stage vinyl tile production machine,Decorative wear layer coating equipment |
||
Product Description
Precision Multi-Stage Scrap Coating Production Line for Luxury Vinyl Tile (LVT) - Decorative & Wear Layer Application
Composition of production line
This advanced line features multiple, independently controlled knife coating stations, inter-stage UV curing or IR drying modules, a precision substrate alignment system, and a central industrial PC with recipe management for complex processes.
Product Description
This precision multi-stage coater is designed for manufacturing high-end floor materials like Luxury Vinyl Tile (LVT) that require multiple, perfectly registered coating layers. It can apply a base coat, printed decorative layer, and a clear wear layer in one continuous, automated process, ensuring superior product quality and visual depth.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | KCL-LVT Series |
| Number of Coating Stations | 2, 3, or 4 (Customizable) |
| Registration Accuracy | ± 0.5 mm between layers |
| Coating Width | Customizable up to 2200mm |
| Curing Options | UV Lamp Arrays or IR Tunnels per station (Customizable) |
| Control System | Industrial PC with SPC Data Logging |
| Line Speed | 3 - 30 meters/min |
| Automation | Integrated robotic handling for layer registration |
Application
-
Luxury Vinyl Tile (LVT) and Plank
-
Multi-layer polymer flooring
-
High-resolution printed flooring
-
Bio-based plastic composite flooring
Customization
This system is highly customizable for complex processes. We can customize the number and sequence of coating and curing stations, integrate specific registration systems, and tailor the software for your unique multi-layer recipe.
Feature
-
Multi-Layer Capability: Applies multiple layers in a single pass with high registration accuracy.
-
Process Flexibility: Each station can be configured for different coating types and curing methods.
-
Superior Finish Quality: Eliminates defects like orange peel or streaks for a flawless surface.
-
Recipe Management: Save and recall parameters for different products and layer structures.
-
Data Traceability: Logs process parameters for each batch for full quality control.
Support and Services
We offer extensive process development support, on-site calibration of registration systems, and validation documentation for quality assurance.
Packing and shipping
Key precision components like coating heads are shipped in custom shock-absorbing crates. The entire system is clearly marked for reassembly.
FAQ
-
Q: How do you ensure alignment between different printed layers?
-
A: We use a customized vision-based registration system that detects the sheet position and makes micro-adjustments to each subsequent coating head in real-time.
-
-
Q: Can we switch between UV and water-based coatings on the same line?
-
A: Absolutely. The line can be customized with a combination of UV curing stations and thermal drying tunnels to handle hybrid chemistry processes.
-
-
Q: Is this line suitable for R&D as well as production?
-
A: Yes, the recipe-driven control system makes it ideal for both pilot production and full-scale manufacturing, with a high degree of customizable process control.
-
