Fold-Type Hot Air Drying Line for Coated Products – Compact Design, Customizable Length & Temperature Zones

Fold-Type Hot Air Drying Line for Coated Products – Compact Design, Customizable Length & Temperature Zones
Fold-Type Hot Air Drying Line for Coated Products – Compact Design, Customizable Length & Temperature Zones High Capacity Folding Drying Line for Cement Fiberboard with 30 Percent Floor Space Saving This high-capacity folding drying line is specifically engineered for the efficient and uniform ...
Place of Origin:CHINA
Brand Name:OSMANUV
Certification:ISO9001
Model Number:OSM-GLDM-1320T
Minimum Order Quantity:1set
Price:Negotiation
Product Custom Attributes
Highlight

high capacity folding drying line

,

cement fiberboard drying machine

,

space saving industrial drying line

Dimension(l*w*h):
Customized Size,60000*2540*1680mm;60000*2000*1680mm;
Effective Width:
1320mm,920mm,620mm
Temperature:
Room Temperature-800℃
Moisture:
50±10℃
Automatic Grade:
Automatic/Semi-Automatic
Coating Speed:
Adjustable, 0.1-1 Meters/min
Warranty:
1 Year
Condition:
New
Product Description
Fold-Type Hot Air Drying Line for Coated Products – Compact Design, Customizable Length & Temperature Zones
High Capacity Folding Drying Line for Cement Fiberboard with 30 Percent Floor Space Saving

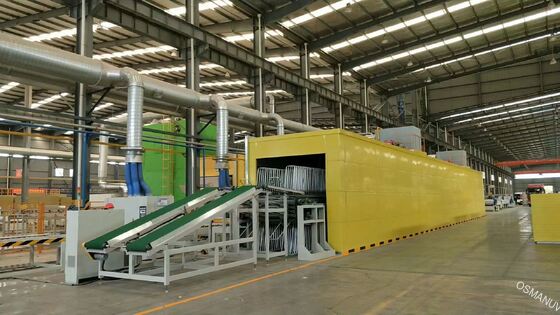

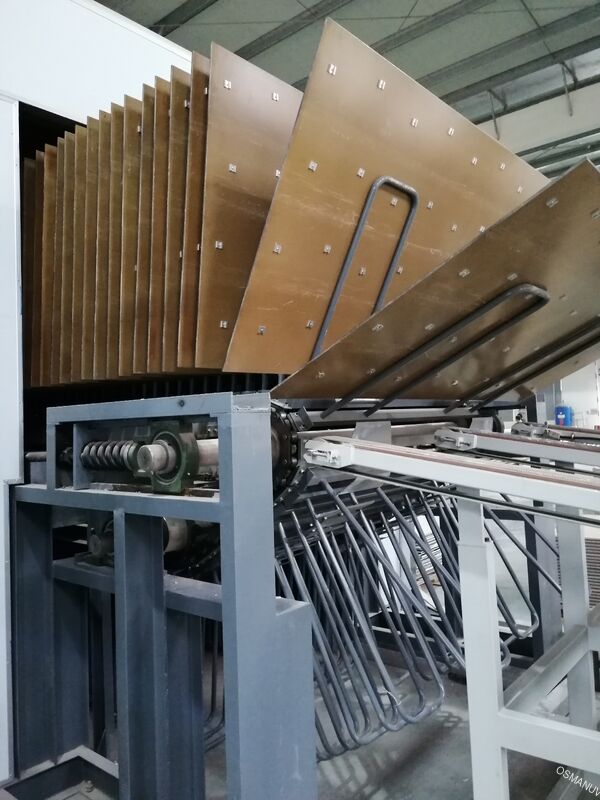

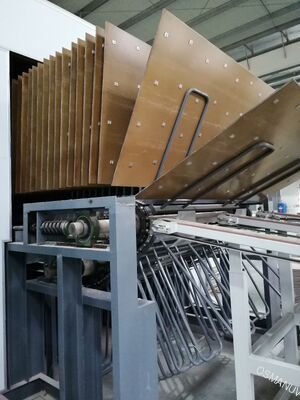

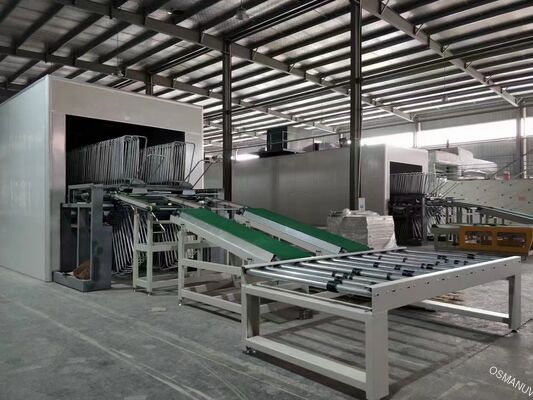

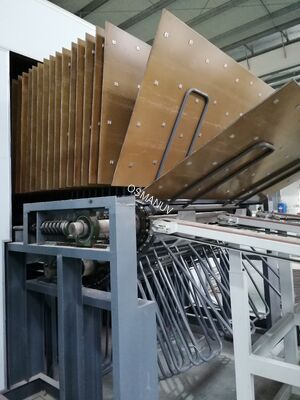

This high-capacity folding drying line is specifically engineered for the efficient and uniform drying of cement fiberboards. Its unique multi-layer "folding" conveyor design significantly reduces the factory footprint by up to 30% compared to traditional straight-line dryers, while maintaining a high throughput. It ensures consistent moisture removal across the entire board surface, preventing warping and ensuring product quality for large-scale production.

Technical Parameters
No. Parameter Name Specification
1 Product Name Folding Drying Line for Cement Fiberboard
2 Heating Method Indirect Hot Air / IR / Gas (Customizable)
3 Total Drying Length 40-100 Meters (Customizable)
4 Effective Belt Width 1300 mm / 1500 mm / 1800 mm (Customizable)
5 Number of Tiers 3-5 Tiers (Customizable)
6 Drying Temperature Range Ambient - 200°C
7 Conveyor Speed 0.5 - 5 m/min (Stepless Control)
8 Heat Source Natural Gas / Diesel / Electric
9 Control System PLC + Touch Screen HMI
10 Total Installed Power ~120 kW (Varies with size)
Application

Ideal for drying and curing coated or uncoated cement fiberboards, calcium silicate boards, and other flat panel materials in high-volume manufacturing plants.

Customization

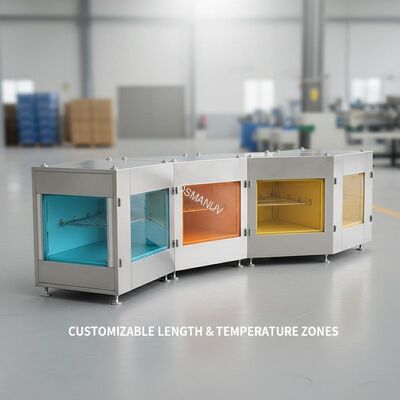

This is a fully customizable system. We can tailor the total length, number of tiers, heating zones, temperature profile, and belt width to perfectly match your production capacity, board dimensions, and specific process requirements.

Features
  • Compact folding design saves significant factory floor space
  • Zoned temperature control for optimized drying curves
  • Robust conveyor system ensures smooth board handling without damage
  • High thermal efficiency with excellent insulation minimizes energy consumption
Support and Services
  • One-year warranty on the entire line
  • On-site installation, commissioning, and operator training
  • Lifetime technical support and remote diagnostics
Packing and Shipping

The line is disassembled into modules, securely packed in weather-proof wooden crates for sea freight. Delivery lead time is 70-90 days based on configuration. FOB or CIF terms available.

Frequently Asked Questions
Q: How much space does this folding dryer save compared to a straight tunnel dryer?
A: Typically 30-50%, depending on the number of tiers. A 60-meter effective drying length might only occupy a 20-meter floor length with a 3-tier design.
Q: Can you configure different temperatures for different sections?
A: Absolutely. The line features multiple independent customizable heating zones, allowing for a precise drying curve from entry to exit (e.g., pre-heat, main drying, cooling).
