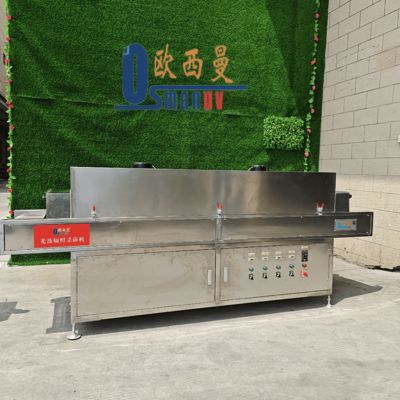

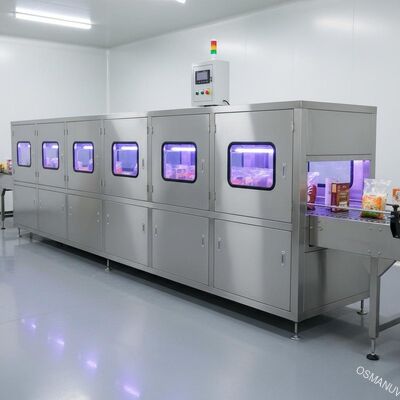

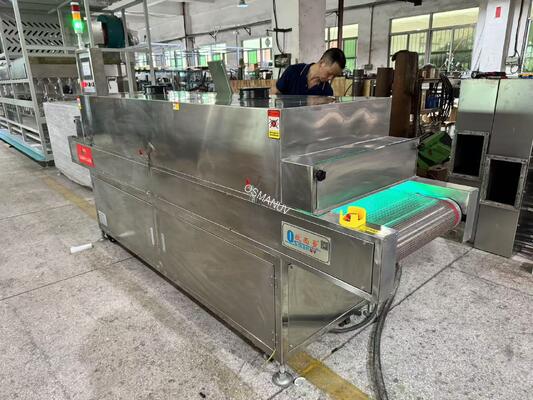

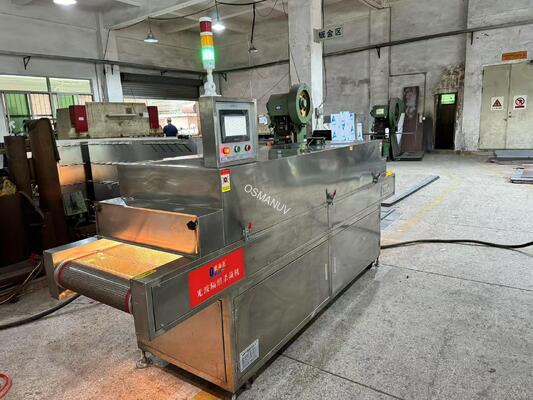

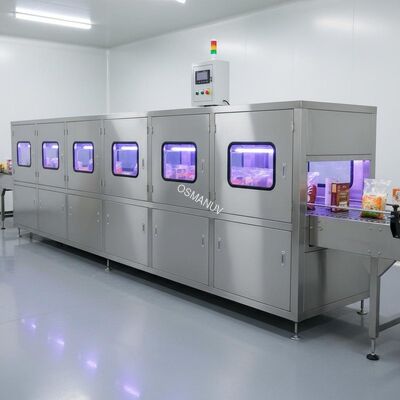

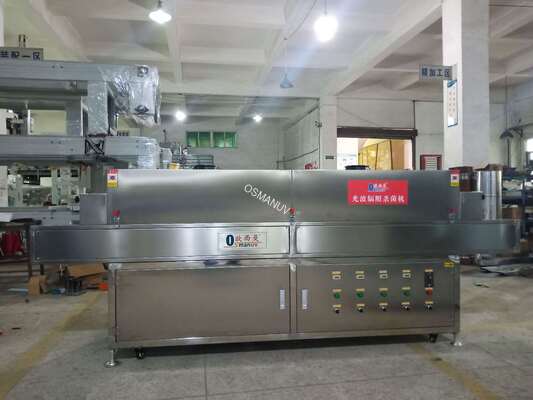

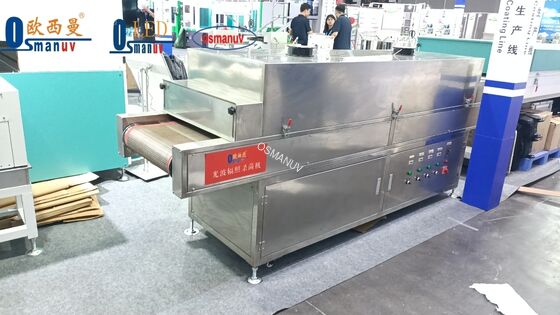

Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System

Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System
Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System
Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System

Large Image :  Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System

Product Details:
Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-UVC20-500A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30~45 Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System

Description
Drying Way: Ultraviolet - Curable Type: UV Sterilization Machine
Powerconsumption: 100W Lamptype: UV-C Lamp
Slitting Speed: Adjustable Belt Type: Fish Bone
Light Source: UV Light Powersupply: 220V/50Hz
Highlight:

Industrial UV sterilization tunnel for food packaging

,

Conveyorized UV sterilization system for bulk items

,

Inline UV irradiation machine with warranty

Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System
Our industrial UV sterilization tunnel is engineered for continuous, high-throughput disinfection of food packaging materials and bulk food items. Utilizing 253.7nm UV-C germicidal lamps, it effectively eliminates up to 99.9% of surface microorganisms, significantly extending product shelf life without chemical residues.
Production Line Composition
This integrated system includes an infeed conveyor, stainless steel sterilization chamber with high-intensity UV-C lamps, powered outfeed conveyor, and centralized PLC control panel.
Technical Parameters
Parameter Specification
Sterilization Method UV-C Germicidal Lamps (253.7nm)
Conveyor Type Mesh Belt or Flat Belt (Customizable)
Belt Width Standard 500mm, 800mm (Customizable)
UV Lamp Configuration 16-24 pcs of 40W-100W lamps (Customizable)
Control System PLC with Touch Screen HMI
Power Supply 380V/50Hz/3Phase (Customizable)
Throughput Capacity 2-10 m/min (Customizable)
Sterilization Efficiency >99.9%
Applications
  • Food packaging materials sterilization
  • Bulk solid foods surface treatment
  • Ready-to-eat food production lines
  • Dairy and beverage packaging
Customization
This UV tunnel is highly customizable. We can adjust the tunnel length, lamp configuration, and conveyor specifications to meet your specific production requirements. The system can be customized for different product heights and processing speeds.
Features
  • Continuous inline processing
  • Food-grade stainless steel construction
  • Automatic safety interlocks
  • Energy-efficient design
  • Real-time monitoring system
Support and Services
  • Installation supervision
  • Operator training
  • 12-month warranty
  • Technical support
  • Spare parts supply
Packing and Shipping
  • Export-standard wooden cases
  • Weather-proof packaging
  • Fumigation-free materials available
  • Professional loading and securing
Frequently Asked Questions
Q: What's the maintenance requirement?
A: Regular lamp replacement (approx. 9000 hours) and quartz sleeve cleaning. We provide customized maintenance schedules.
Q: Can it handle different product sizes?
A: Yes, the system can be customized with adjustable conveyor configurations.
Q: Is professional installation required?
A: We recommend our professional installation service to ensure optimal performance.
