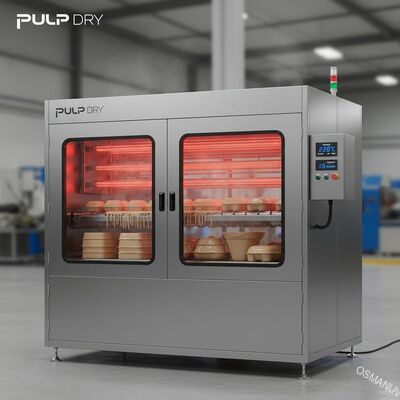

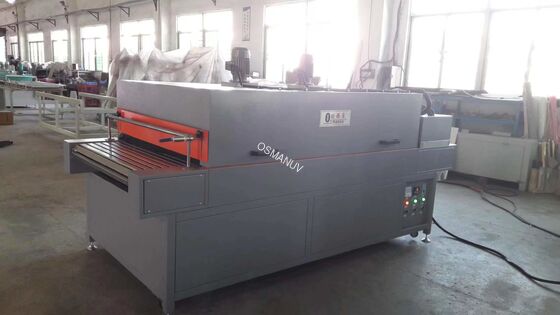

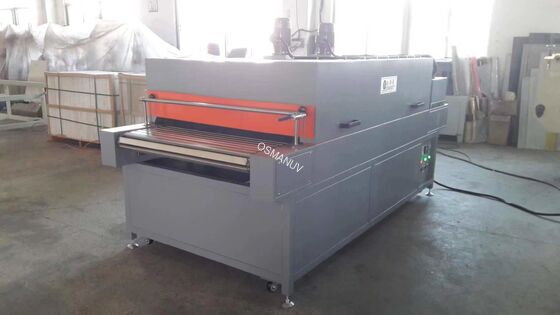

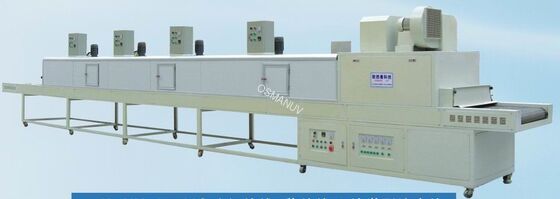

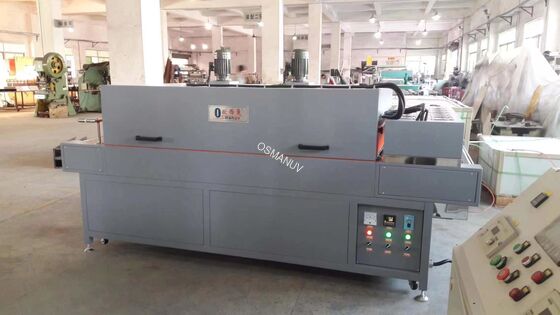

High-Speed Infrared Drying Machine for Rapid heating of Coatings on Pulp Molded Products

High-Speed Infrared Drying Machine for Rapid heating of Coatings on Pulp Molded Products
High-Speed Infrared Drying Machine for Rapid Heating of Coatings on Pulp Molded Products Product Overview Our high-speed infrared drying machine is engineered to significantly reduce heating times in your production line. By utilizing precisely controlled medium-wave infrared emitters, it delivers ...
Place of Origin:CHINA
Brand Name:OSMANUV
Certification:ISO9001
Model Number:OSM-IR-1320
Minimum Order Quantity:1 set
Price:Negotiation
Product Custom Attributes
Highlight

infrared drying machine for coatings

,

high-speed pulp molding dryer

,

industrial curing machine with warranty

Voltage:
220V,380V,380V/220V,220V/380V,380V/50HZ
Condition:
New
Driven Type:
Electric,Other,Mechanical
Packaging Material:
Wood,Plastic,Metal,Paper,Glass
Packaging Type:
Case,Cartons,Film,Wooder Package,Bags
Warranty:
1 Year
Power:
3KW,16KW,65.3kw,4.2kw,0.75KW/220V/50HZ
Temperature:
Adjustable
Product Description
High-Speed Infrared Drying Machine for Rapid Heating of Coatings on Pulp Molded Products
Product Overview

Our high-speed infrared drying machine is engineered to significantly reduce heating times in your production line. By utilizing precisely controlled medium-wave infrared emitters, it delivers instant, penetrating heat to quickly dry water-based coatings on pulp molded products. This results in faster line speeds, reduced energy consumption, and a smaller factory footprint.

The machine's length and power are fully customizable to meet your specific production throughput and product requirements.

Technical Specifications
Parameter Specification
Model OSM-IR-1320
Heating Technology Medium-Wave Infrared Ceramic Emitters
Power Supply 380V / 50Hz (or customizable)
Total Power 36-120 kW (adjustable in zones)
Drying Tunnel Length 3m, 6m, 9m standard (Fully customizable)
Belt Width 1320mm standard (Customizable)
Temperature Range 50°C - 400°C (programmable)
Control System PLC + Touch Screen HMI with recipe storage
Cooling Section Optional forced air cooling available
Applications
  • Rapid drying of coatings on paper trays, sugarcane bagasse food containers, and bamboo fiber tableware
  • Drying of inks and adhesives on packaging materials
  • Pre-drying before a final convection drying stage
Key Features
  • Instant On/Off Heat: No warm-up or cool-down time, ideal for intermittent production
  • Zone Control: Independent temperature control in multiple zones for optimized drying profile
  • Energy Efficient: Infrared energy transfers directly to the product and coating, minimizing heat loss
  • Uniform Heating: Ensures consistent product quality without hot spots
Customization Options

This drying machine is highly customizable. Key options include:

  • Length and Power: Tailored to your required drying time and line speed
  • Belt Material: Choice of mesh, teflon-coated, or steel belt
  • Exhaust System: Integrated exhaust for moisture removal
Support & Services

We provide installation guidance, operational training, and a comprehensive spare parts list to ensure maximum uptime.

Packing & Shipping

The machine is modularized into sections for easy transport. All sections are crated in robust wooden frames for secure shipping.

Frequently Asked Questions
Q: How much faster is infrared drying compared to conventional hot air ovens?
A: Drying times can be reduced by up to 50-70% because IR energy heats the product directly, not the surrounding air.
Q: Can the temperature be controlled for different products?
A: Yes, the PLC allows you to save different temperature profiles for quick changeover between products.
