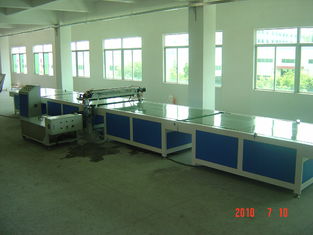

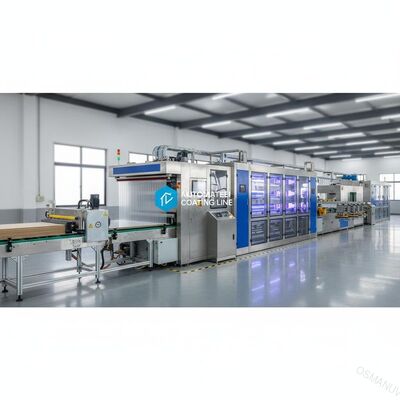

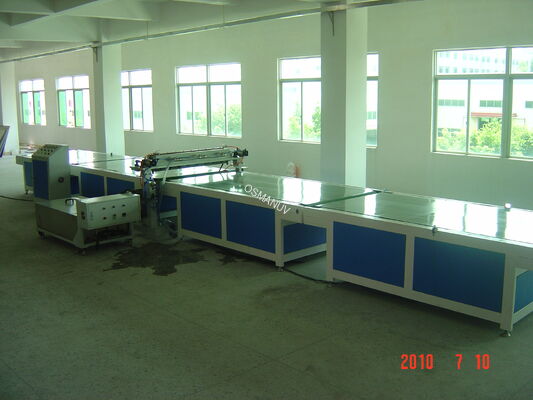

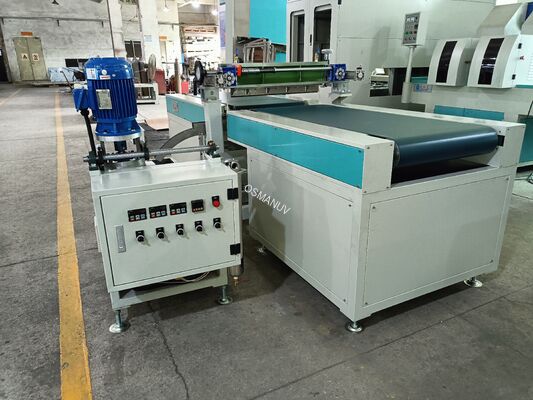

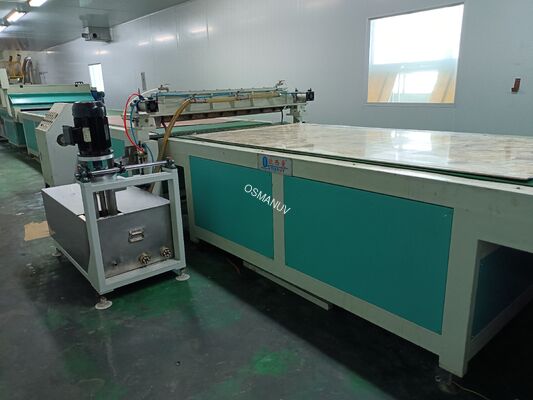

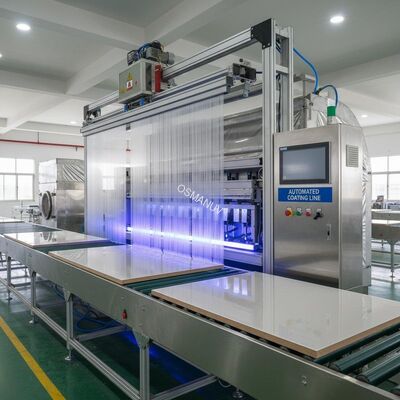

Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
UV finish coating machine for MDF
,automated curtain coating machine
,high-gloss panel furniture coater
This high-speed curtain coating line is engineered for furniture manufacturers seeking a flawless, high-gloss finish on flat panel components like cabinet doors, table tops, and shelving. It applies a perfect, uniform curtain of UV coating onto the substrate, resulting in a durable, mirror-like surface with exceptional clarity and scratch resistance. Ideal for high-volume production of modern, high-gloss furniture.
- Automatic panel feeder

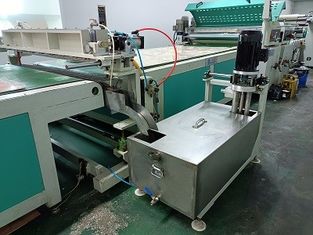

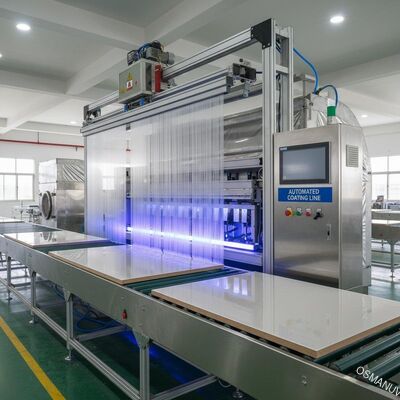

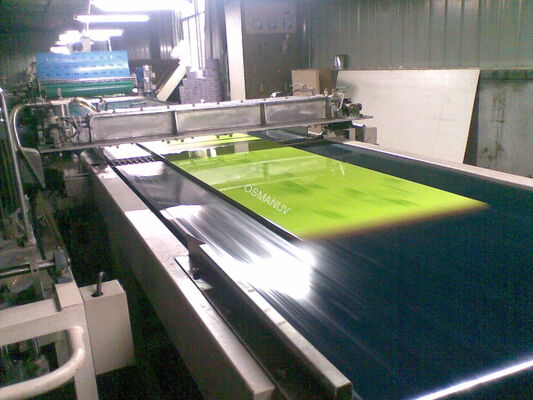

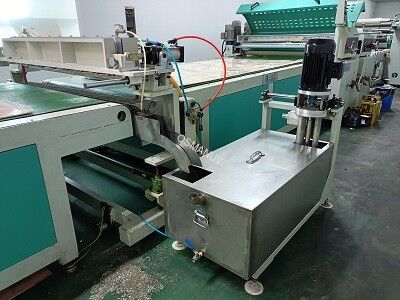

- Curtain coating applicator
- UV curing device
- Cooling section
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-LT-1320 |
| Suitable Substrate | MDF, Particle Board, Plywood, Pre-laminated Panels |
| Coating Method | Precision Curtain Coating |
| Max. Panel Width | 2800 mm (Customizable) |
| Max. Panel Thickness | 50 mm |
| Line Speed | 0-10 m/min |
| Coating Type | UV Coatings (Clear, Pigmented) |
| Curing Method | High-Power UV Curing Lamp |
| Paint Consumption | 60～200 g/㎡ |
High-gloss cabinet doors, table tops, office furniture panels, and decorative wall panels.
The line can be customized with different coating head widths, specific UV lamp power for optimal curing, and integration with pre- and post-processing equipment.
- Perfect High-Gloss Finish: Delivers a mirror-like, defect-free surface
- Extremely High Efficiency: Suitable for continuous, high-throughput production lines
- Minimal Coating Waste: Precise application reduces material consumption
- Instant Curing: UV curing allows for immediate handling and stacking
On-site installation supervision, comprehensive operator training on maintenance and operation, and readily available spare parts.
All modules are crated in heavy-duty, weatherproof wooden cases. Sensitive components like the coating head are packed separately with special cushioning.
-
