Energy-Efficient Natural Gas Drying Machine for Pulp Molding Heating Like Bio-Based Food Packaging Production
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-TRQ-1320 |
| Document: | Natural Gas Drying Machine.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Power: | 40KW | Warranty: | 1 Year,one Year,12 Months |
|---|---|---|---|
| Condition: | New | Dimension(l*w*h): | Customized Size 90000MM*2050MM*2250MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation | Application: | Pulp Molding & Textiles, Board |
| Automatic Grade: | Automatic,Semi-Automatic,manual,Other | Voltage: | 220V,380V,380V/220V,220V/380V,380V/50HZ |
| Highlight: | natural gas pulp molding drying machine,energy-efficient industrial drying tunnel,bio-based food packaging dryer |
||
Product Description

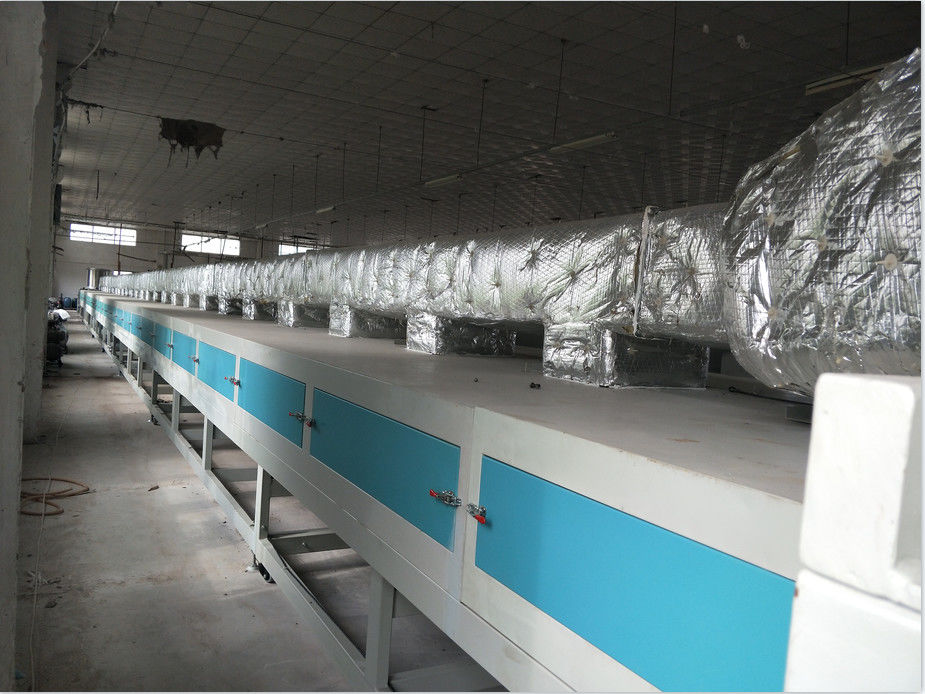

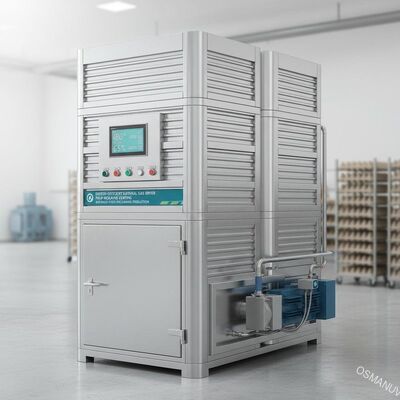

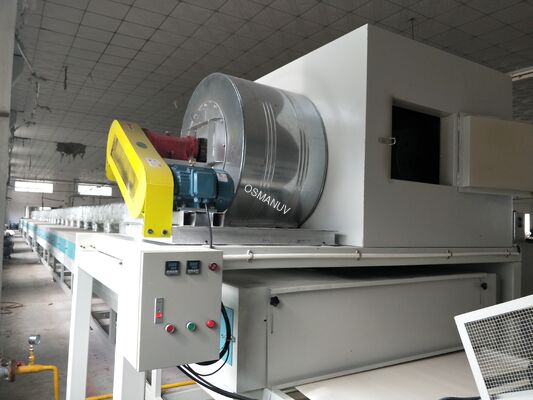

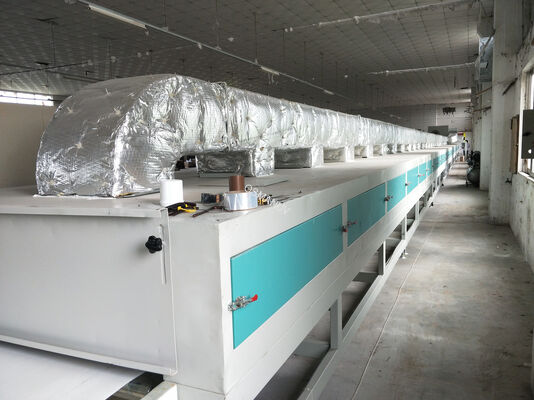

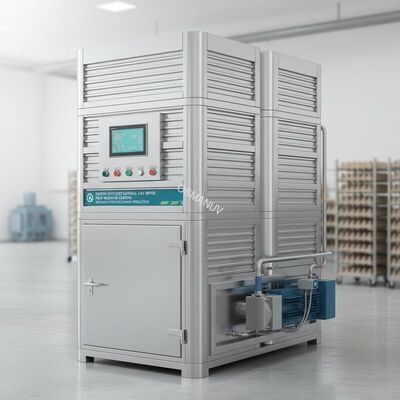

Energy-Efficient Natural Gas Drying Machine for Pulp Molding Heating Like Bio-Based Food Packaging Production
- Product Description:
Our natural gas drying machine is specifically engineered for the high-volume drying of pulp molded products, such as food trays, egg cartons, and packaging inserts. It utilizes clean-burning natural gas to generate high-volume hot air, ensuring rapid and uniform moisture removal from the porous plant fiber structure. This results in significantly reduced energy costs compared to electric ovens while achieving superior product stability and dimensional accuracy.
-
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-TRQ-1320 |
| Suitable Product | Pulp Molded Food Trays, Egg Cartons, Packaging Inserts |

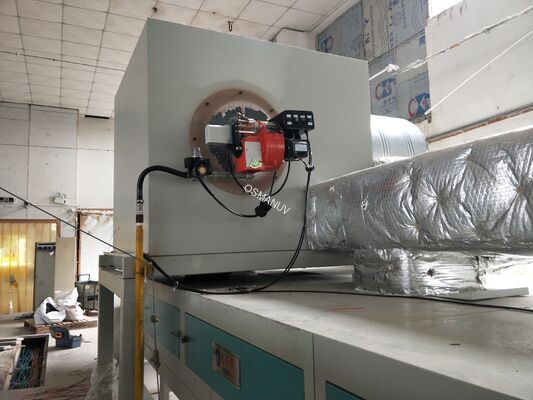

| Heat Source | Natural Gas Burner (Low-NOx) |
| Drying Method | Forced Hot Air Circulation |
| Operating Temperature | 80°C - 220°C (Adjustable) |
| Conveyor Width | 1500 mm (Customizable) |
| Number of Zones | 5 Zones (Pre-heat, 3 Drying, Cooling) (Customizable) |
| Control System | PLC + HMI Touch Screen with recipe memory |
-
Application:
Drying and curing of water-based coatings and the pulp substrate itself in the production of disposable food service products and protective packaging.
-
Customization:
This oven can be customized in length, width, number of heating zones, and conveyor type (e.g., mesh belt, chain-on-edge) to perfectly integrate with your existing production line and meet specific product dwell time requirements.
-
Feature:
-
Low Operational Cost: Natural gas is a cost-effective energy source for high-temperature drying.
-
Uniform Air Flow: Patented airflow design ensures even temperature distribution, preventing warping.
-
Rapid Heating: Gas systems achieve operating temperature much faster than electric ones.
-
Environmentally Friendly: Modern low-NOx burners reduce emissions.
-
-
Support and Services:
Installation supervision, combustion tuning for optimal efficiency, operator safety training, and readily available spare parts for the burner system.
-
Packing and Shipping:
The oven is shipped in modular sections for easy assembly on-site. The burner unit is crated separately. All sections are insulated and protected from weather.
-
FAQ:
Q: Why choose natural gas over electricity for drying pulp molding?
A: For high-temperature, continuous industrial drying, natural gas is typically 3-4 times more cost-effective than electricity per unit of heat, leading to substantial savings in operational expenditure (OPEX), especially for high-volume production.
