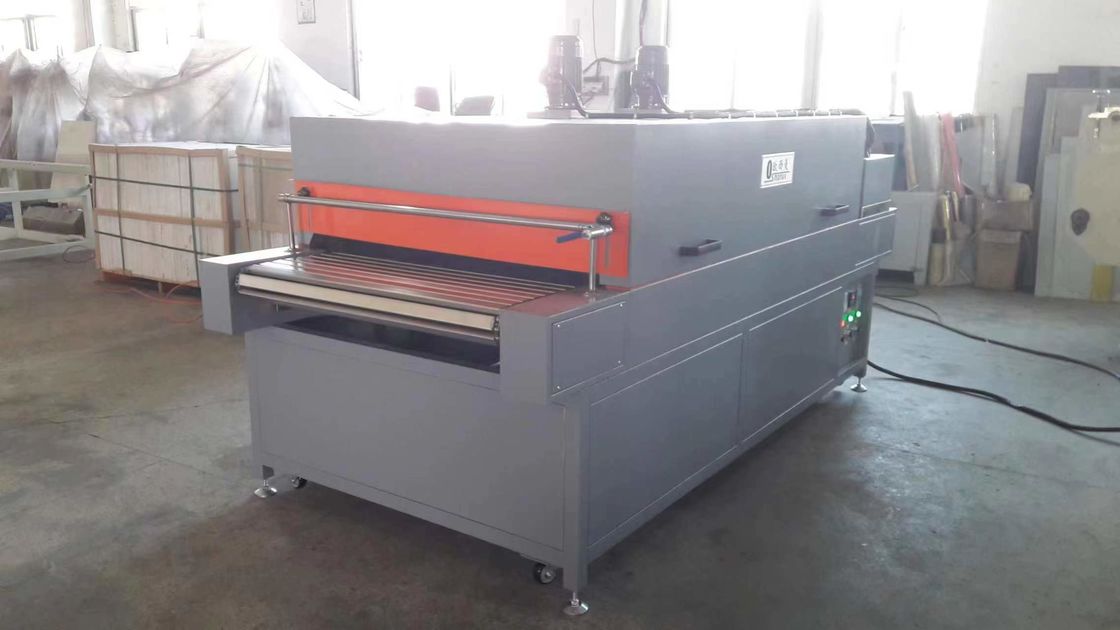

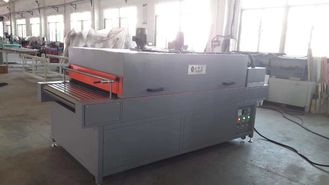

High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Precision Thermal Solution
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-UV-1320T |
| Document: | 5 Meters IR Drying Machine.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Timer Setting: | 1-60 Minutes | Worktable: | Floating |
|---|---|---|---|
| Function: | Plastic Cup Quick Dryer | Air Flow Direction: | Horizontal/Vertical |
| Conveyor Belt Speed: | 10-30m/min | Outlet Temperature: | 80-250 Degree |
| Automatic Grade: | Automatic | ||
Product Description
High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Precision Thermal Solution
Keywords: infrared drying line, furniture board drying, molded pulp dryer, customizable IR drying, industrial infrared oven

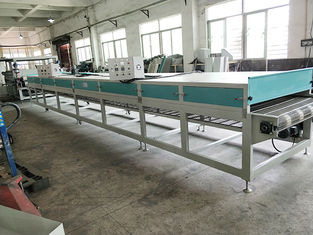

Composition of Production Line:
Infrared pre-heating section, main IR drying tunnel, heat circulation system, temperature control cabinet, conveyor system, cooling section, PLC control panel
Product Description:
This advanced infrared drying line provides precise and efficient drying for both furniture boards and molded pulp products, offering superior energy efficiency and uniform heating compared to conventional drying methods.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Heating Technology | Medium-wave infrared emitters |
| Temperature Range | 50-400°C (customizable) |
| Belt Width | 600-2000mm (customizable) |
| Drying Speed | 0.5-5 m/min (adjustable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Control System | Siemens PLC + 10" HMI touchscreen |
| Heating Power | 30-200kW (customizable) |
Application:
Drying of furniture boards (MDF, HDF, particleboard), molded pulp packaging, and industrial fiber products.
Customization:
Fully customizable infrared emitter layout, belt specifications, heating zones, and control system configuration.
Feature:
-
40% energy saving compared to conventional drying
-
Precise temperature control (±1°C)
-
Quick response and easy maintenance
-
Uniform heating without surface damage
Support and Services:
Installation supervision, operator training, 24/7 technical support, spare parts supply
Packing and Shipping:
Modular design for easy shipping, weather-proof packaging, FOB/CIF terms available
FAQ:
Q: Can the line handle different product thicknesses?
A: Yes, the system is fully customizable for various product specifications.
