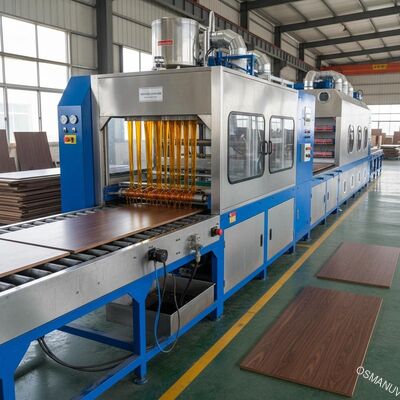

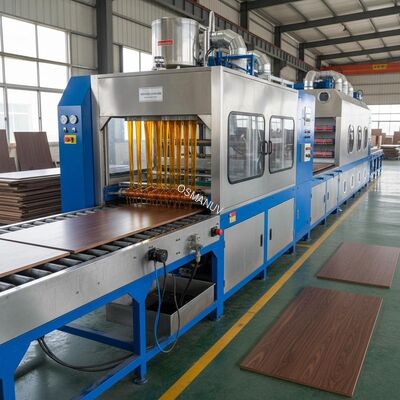

High-Speed Wood Panel Curtain Coating Machine for Factory Flooring: Durable Finish & Mass Production Coating Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-LT-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 40 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Power Supply: | 380V/50Hz, Three-phase Five-wire System | Conveying Direction: | From Left To Right |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Product Name: | Curtain Coating Product Line | Production Line Speed: | 0-10m/min |
| Transmission Is Limited Wide: | 1320mm | ||
| Highlight: | wood panel flow coating machine,high-speed curtain coating machine,factory flooring coating line |
||
Product Description
Our high-speed automated flow coating line is engineered for furniture panel, door skin, and laminate flooring manufacturers seeking unparalleled throughput. This system delivers a consistent, high-gloss, or satin finish with exceptional durability, ideal for high-volume production environments. The entire process, from feeding to curing, is seamlessly integrated for maximum efficiency and minimal downtime.
| Parameter Category | Details & Specifications |
|---|---|
| Dimensions | 6000mm L × 2200mm W × 1400mm H |
| Belt Height from Ground | 850-900mm adjustable |
| Total Weight | 2000 kg |
| Coating Width | 1320 mm |
| Processing Thickness | 3-80 mm |
| Minimum Processing Length | 300 mm |
| Conveyor Power | 2.2 kW |
| Oil Pump Power | 2.2 kW |
| Paint Consumption | 60-200 g/m² |
| Paint Tank Capacity | 250 kg |
Mass production of furniture panels, kitchen cabinets, laminate flooring, door skins, and wall panels.
- Ultra-High Speed Coating for maximum output
- Precision Coating Head for uniform film thickness

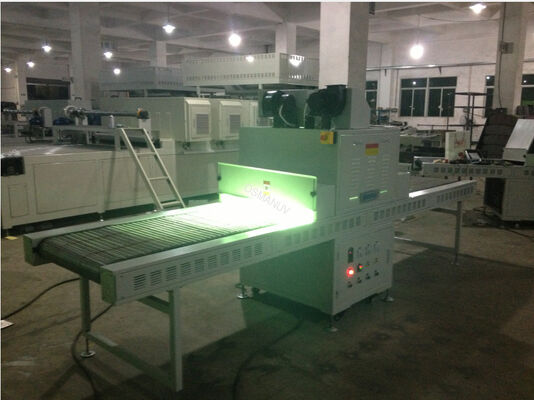

- Energy-Efficient UV Curing System
- Fully Automated Conveyor System with automated feeding and stacking
We offer extensive customization options including line length, conveyor width, coating tank capacity, and specific curing solutions to match your factory layout and product requirements perfectly.
Comprehensive package including installation supervision, operator training, remote troubleshooting, and an extensive inventory of spare parts for prompt delivery.
All modules are crated in heavy-duty wooden frames with waterproof wrapping for sea freight. Professional export packing ensures safe arrival.
