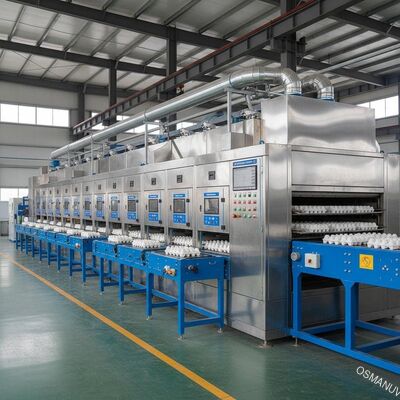

Precision Controlled Natural Gas Drying Machine Line for High-Quality Pulp Molding Products
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO90001 |
| Model Number: | OSM-TRQ-1320 |
| Document: | Double Layer Natural Gas Dr...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 40days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Warranty: | 1 Year | Dimension(l*w*h): | Customized Size,90000*2050*2250MM |
|---|---|---|---|
| Production Line Speed: | 1-20m/min | Transmission Is Limited Wide: | 1320mm |
| Electric Power: | About 40kw | Slitting Precision: | ±0.2mm |
| Max Coating Width: | 600mm | ||
| Highlight: | natural gas drying machine for pulp molding,industrial drying machine with precision control,pulp molding drying machine with warranty |
||
Product Description
This precision natural gas drying oven offers unparalleled control over the drying environment. It precisely manages both temperature and humidity levels throughout the drying tunnel, preventing case-hardening (surface crusting) and ensuring moisture is gently and uniformly removed from the inside out.
This advanced system features a multi-zone insulated structure, high-efficiency natural gas burners with modulating valves, precision PID temperature controllers, industrial humidity sensors, variable frequency drives on all fans, a heat recovery unit, and a sophisticated PLC with data logging for full process traceability.
| Parameter Category | Specification | Notes |
|---|---|---|
| Temperature Control | ±1.5°C | Via modulating gas valves and PID control |
| Humidity Control | Yes, via exhaust damper control | Prevents case-hardening for better quality |
| Control System | Advanced PLC with Recipe Management | Saves settings for different products; data logging |
| Burner Control | Fully modulating | For precise thermal input and efficiency |
| Air Flow | Variable Speed Circulation | Customizable flow patterns for different products |
| Data Connectivity | Ethernet/IP, Cloud-ready | For integration into factory monitoring systems |
Perfect for premium and high-value pulp molded products where consistent quality and precise moisture content are critical, such as premium food service packaging, medical packaging, and products with complex geometries prone to warping.
The system is highly customizable. The control logic, sensor placement, data reporting format, and level of automation can be tailored to integrate with your factory's quality control protocols and MES system.
- Precision Humidity Management: Actively controls the drying rate by managing humidity levels, which is critical for product integrity
- Modulating Burners: Provide smooth, precise heat input, improving temperature stability and fuel efficiency
- Process Traceability: Records all drying parameters (temp, humidity, speed) for each batch for quality assurance and troubleshooting
- Superior Product Quality: Minimizes defects like warping, cracking, and inconsistent curing
Dedicated process engineering support to develop drying profiles, remote system health monitoring, software updates, and advanced training for your technical staff.
All components are packed to international standards. Sensitive control instruments and valves are shipped in separate, protective packaging.
